SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
59
Installation/Removal
8
8.1 Installing the SIRIUS 3RA6 compact starter and AS-i mounting module
The sections below explain how to install the SIRIUS 3RA6 compact starter on:
● A DIN rail
● A level surface (screw fastening)
● The infeed system for 3RA6
The process of installing the AS-i mounting module on the compact starter (24 V) is also
described.
8.1.1 Mounting the compact starter on a DIN rail
Requirements
● A 35-mm mounting rail in accordance with IEC / EN 60715 must be properly secured at
the installation location.
● Please remember to observe the information on minimum distances in "
Dimension
draw
ings (Page 161)".
Procedure

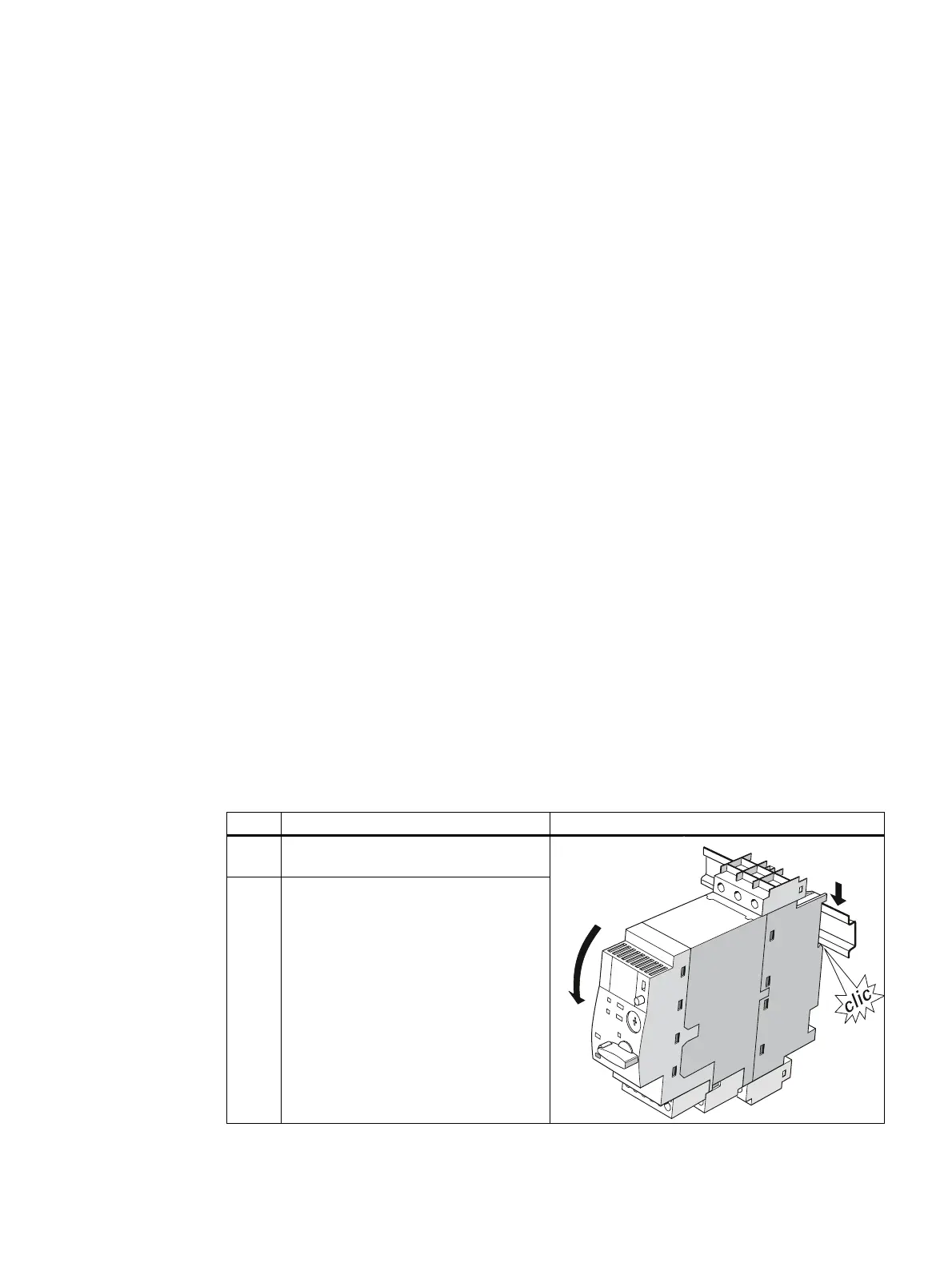

Step Instructions Image
1 Place the back of the device onto the
upper edge of the DIN rail.
2 Press the lower half of the device
against the DIN rail until you hear the
device engage.
