Connecting
9.1 General connection information
SIRIUS 3RA6 Compact Starter
70 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
Openings for test probes
On the compact starter with screw-type connection technology, the test probes are attached
to the terminal screws.
On the compact starter with spring-loaded connection technology, all terminals are equipped
with special test probe openings.

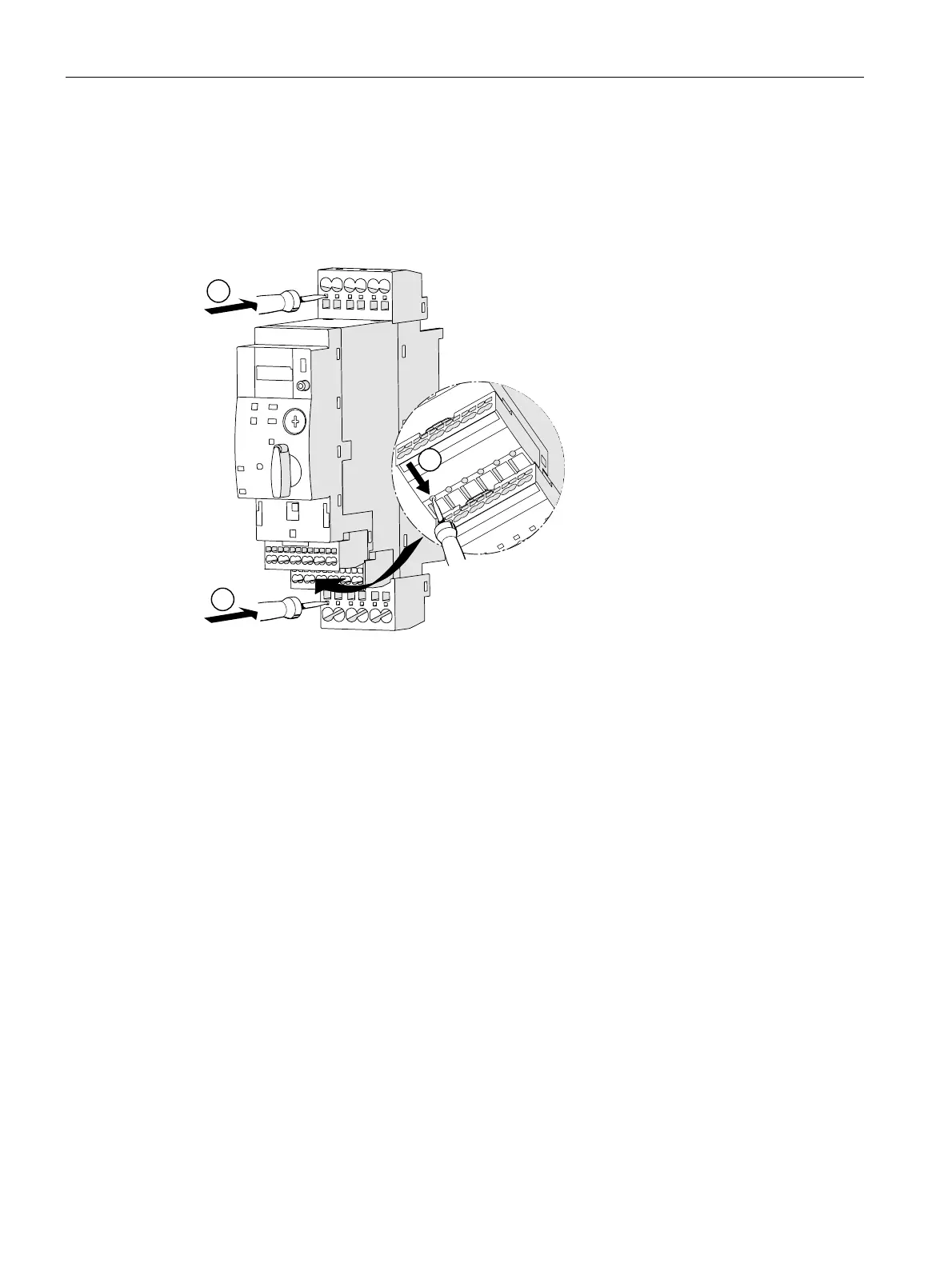

Figure 9-2 Test probe openings on the 3RA6 compact starter
Openings for test probes on
(1) The main conductor terminals
(2) The auxiliary and control conductor terminals
