SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
161
Dimension drawings
15
15.1 SIRIUS 3RA6 compact starter
15.1.1 Dimensions (in mm)
3RA6 compact starter (screw-type connection technology)






5









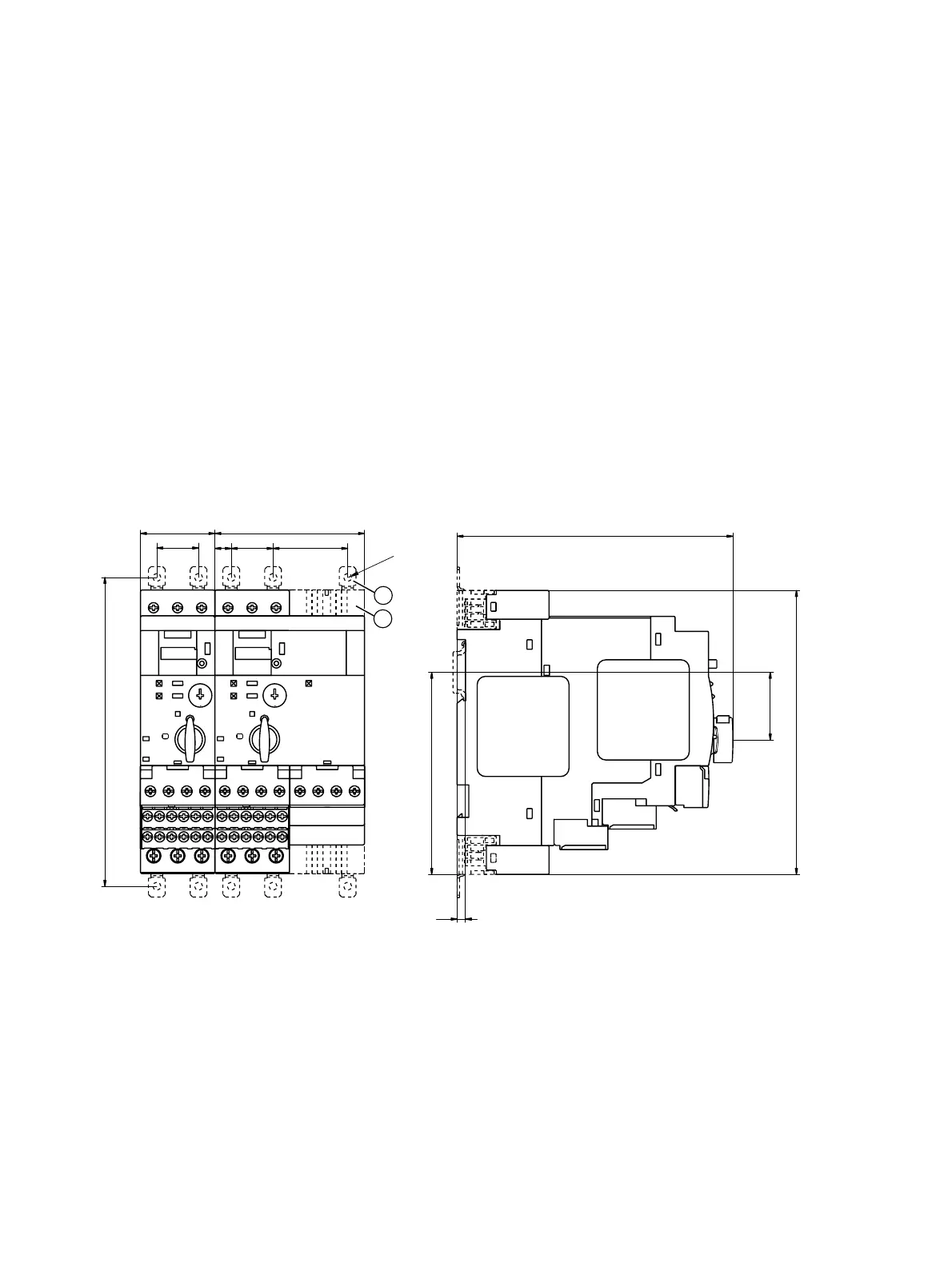

Figure 15-1 Side view of the 3RA6 compact starter (screw-type connection technology)
(1) Push-in lug for screw fastening
(2) Adapter for screw fastening
