Siemens SIRIUS Series System Manual

SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
85
Diagnostics
11
11.1 Compact starter diagnostics
Direct starter display concept

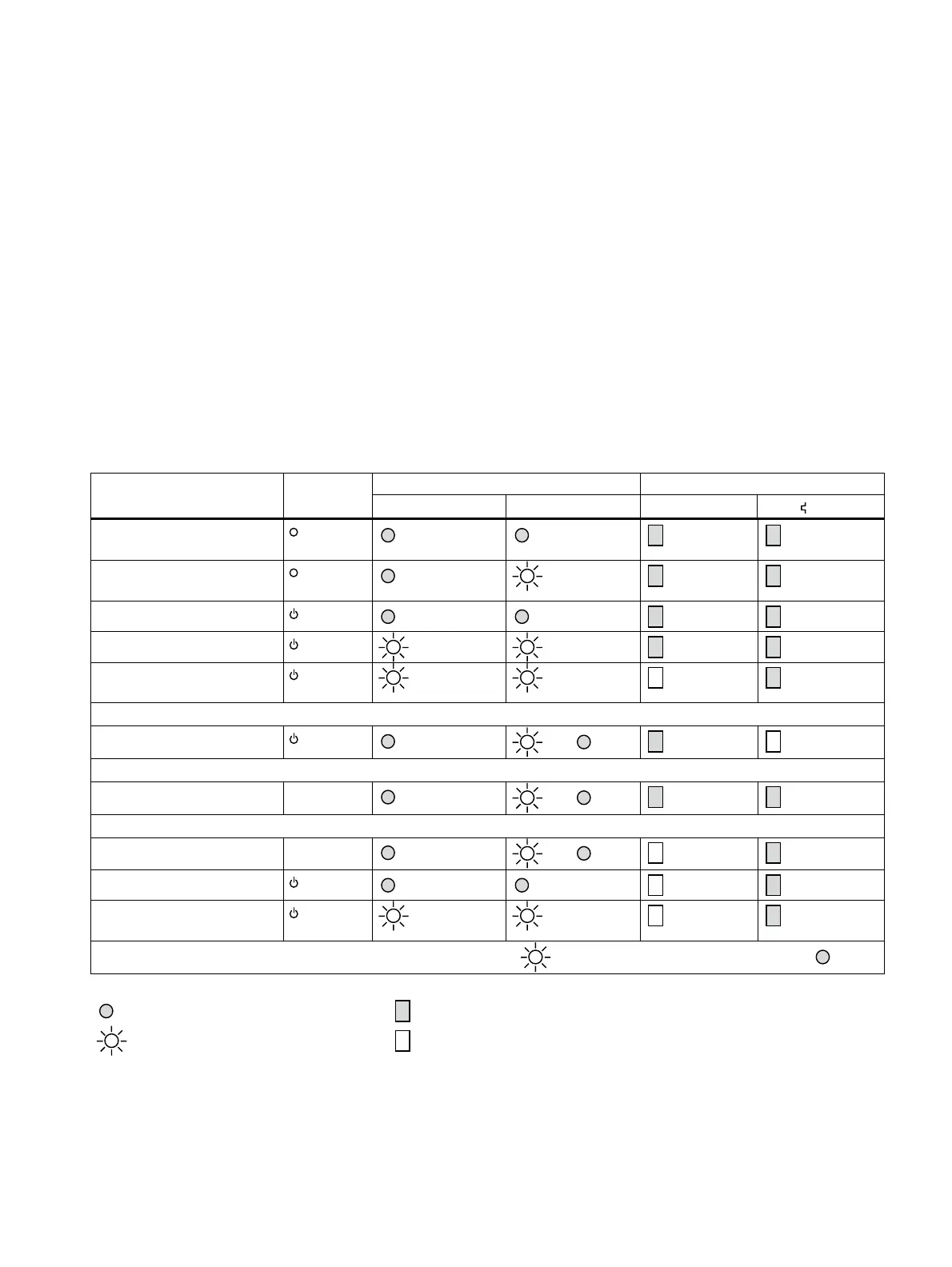

Table 11-1 Display concept of the 3RA61 compact starter direct starter
LED display Mechanical display Compact starter status Actuator
ON I A1/A2 RLT 0% TRIP
Switched off
(delivery condition)
OFF
Control voltage present with
actuator set to OFF
OFF
Ready READY
Switched on READY
Switched on following
malfunction
READY
Overload protection function
Overload tripped READY
OR
1)
Short-circuit protection function
Short circuit tripped TRIPPED
OR
1)
Malfunction (e.g. end of service life reached)
Malfunction tripped TRIPPED
OR
1)
Ready following malfunction READY
Switched on following
malfunction
READY
1)
Depends on whether control voltage is present at the same time or whether no control voltage is present
LED: Not illuminated
Mechanical display: No display
LED: Illuminated green
Mechanical display: White display
