SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
89
Accessories
12
12.1 Control kit
12.1.1 Description of the hardware
Features
The control kit is a tool for checking the wiring of the main and auxiliary circuits as well as the
motor direction.
The control kit is installed on the compact starter and bypasses the electromechanical
operating mechanism so that electrical control can be simulated for the compact starter.
Then the main contacts can be closed using the actuator and the motor will start up.
Configuration

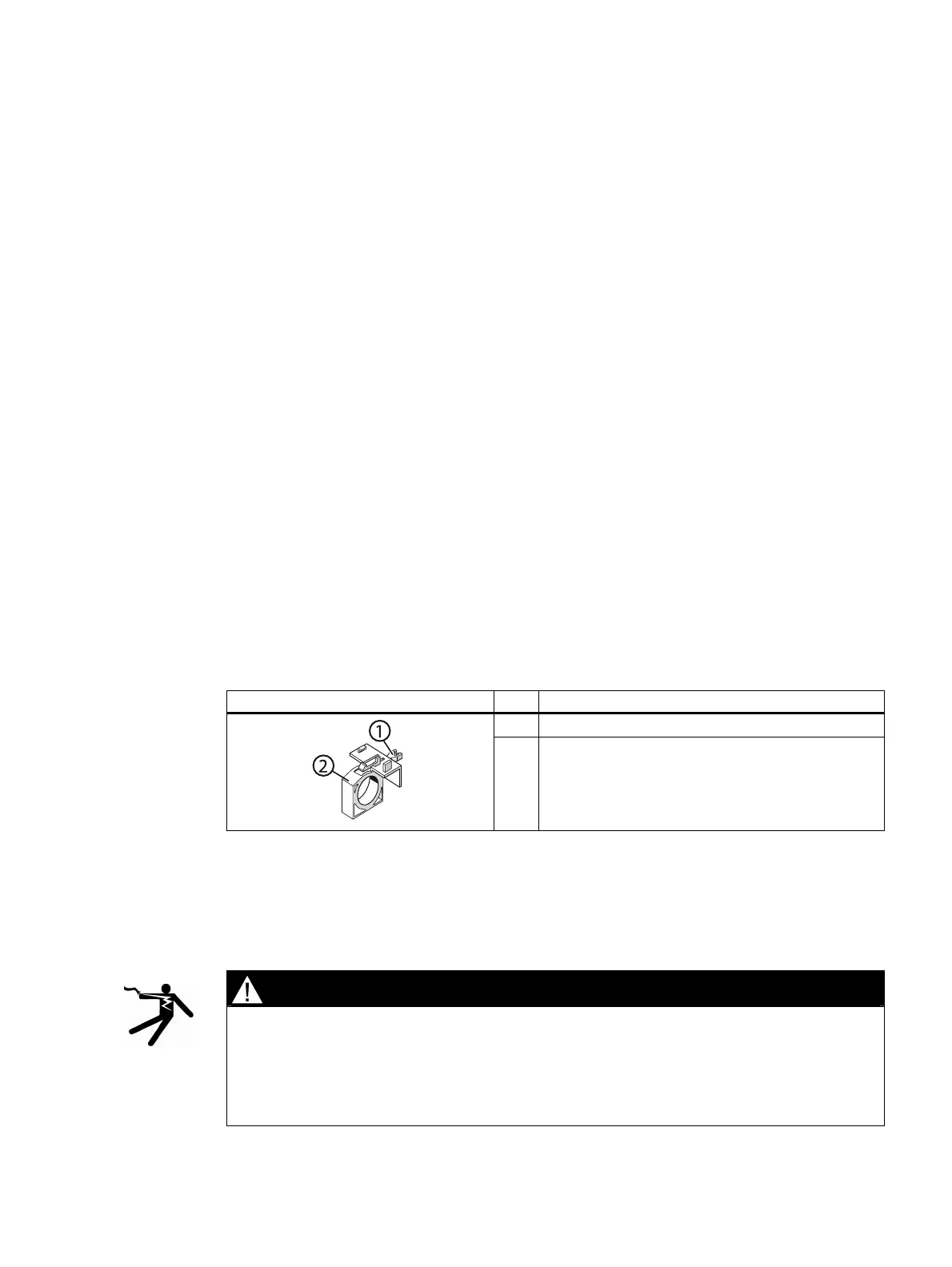

View No. Meaning
(1) Mechanical connection point
(2) Handle
12.1.2 Using the control kit
DANGER
Danger, high voltage!
When the control kit is in use, the compact starter's overload protection function is
deactivated. Only the short-circuit protection function is active.
Only use the control kit briefly for testing purposes (e.g. checking the direction of rotation or
the auxiliary switch wiring).
