Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
103
12.3.4 Installing the SIRIUS infeed system for 3RA6 on a level surface (screw fastening)
Requirements
● Drill holes with thread or plug on the level surface. For details of the distances between
the drilled holes, please refer to the relevant dimension drawing in "Dimension drawings
(Page 161)".
● Sc
rews
:
– Screw-type infeed (25/35 mm
2
) or screw-type infeed (50/70 mm²): Five M4x16 screws
incl. washers
– 3-slot extension module: Four M4 x16 screws incl. washers
– 2-slot extension module: Two M4 x16 screws incl. washers
– PE infeed: One M4 x 16 screw incl. washer
Procedure
Not only can the infeed system for 3RA6 be attached to a DIN rail, but it can also be installed
on a level surface using screws.
Note
Slots make the screw-type infeeds and extension modules easier to install. The slots allow
the screw-type infeeds and extension modules to be mounted on pre-assembled screws and
installed.

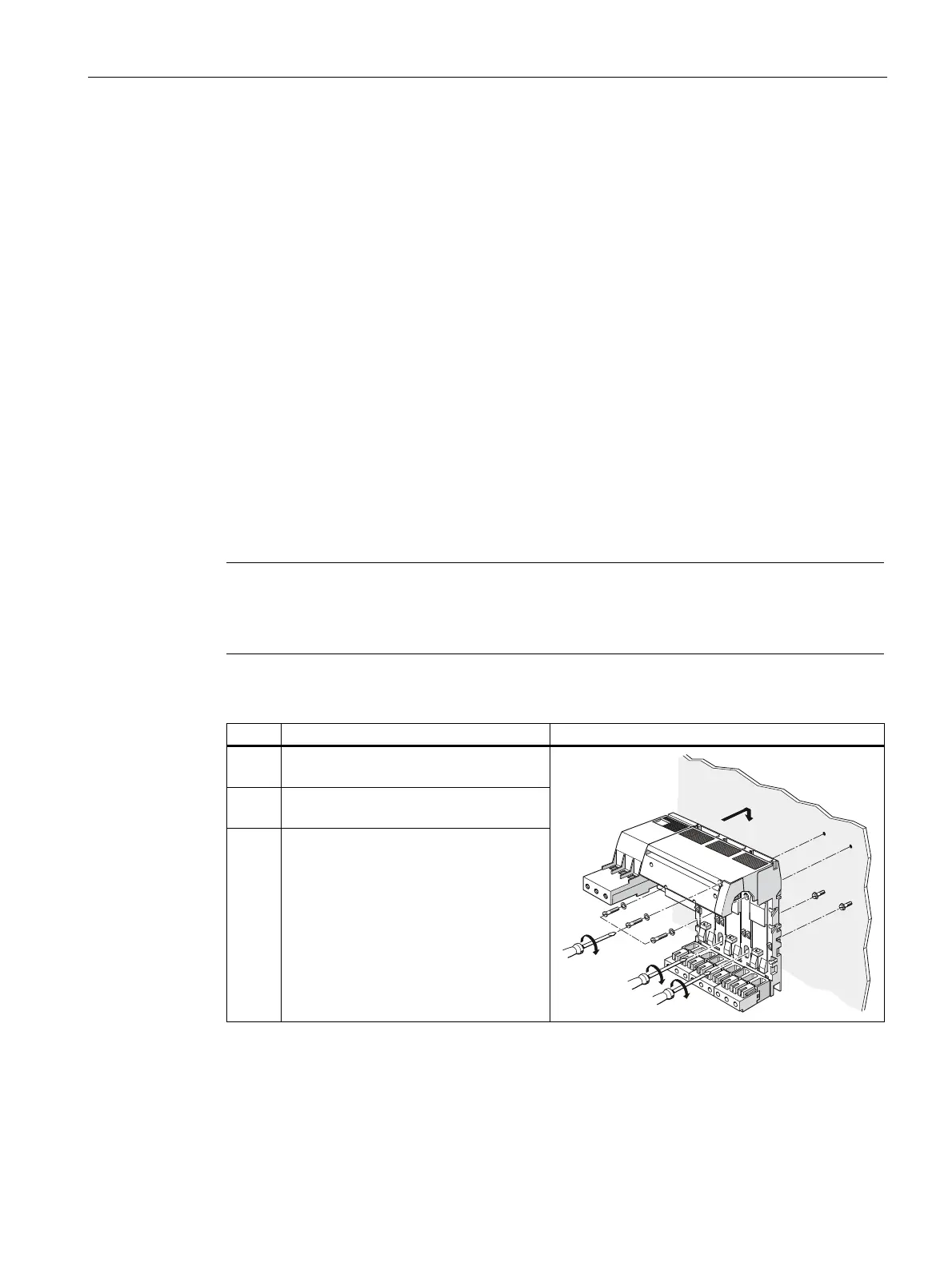

Step Instructions Image
1 Screw the 2 screws for the 2 slots into
the level surface.
2 Mount the screw-type infeed/extension
module on the pre-assembled screws.
3 Insert each of the remaining screws
through the relevant holes in the
screw-type infeed/extension module
and screw the device onto the level
surface.
3
3
3
2
1
1
