Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
102 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

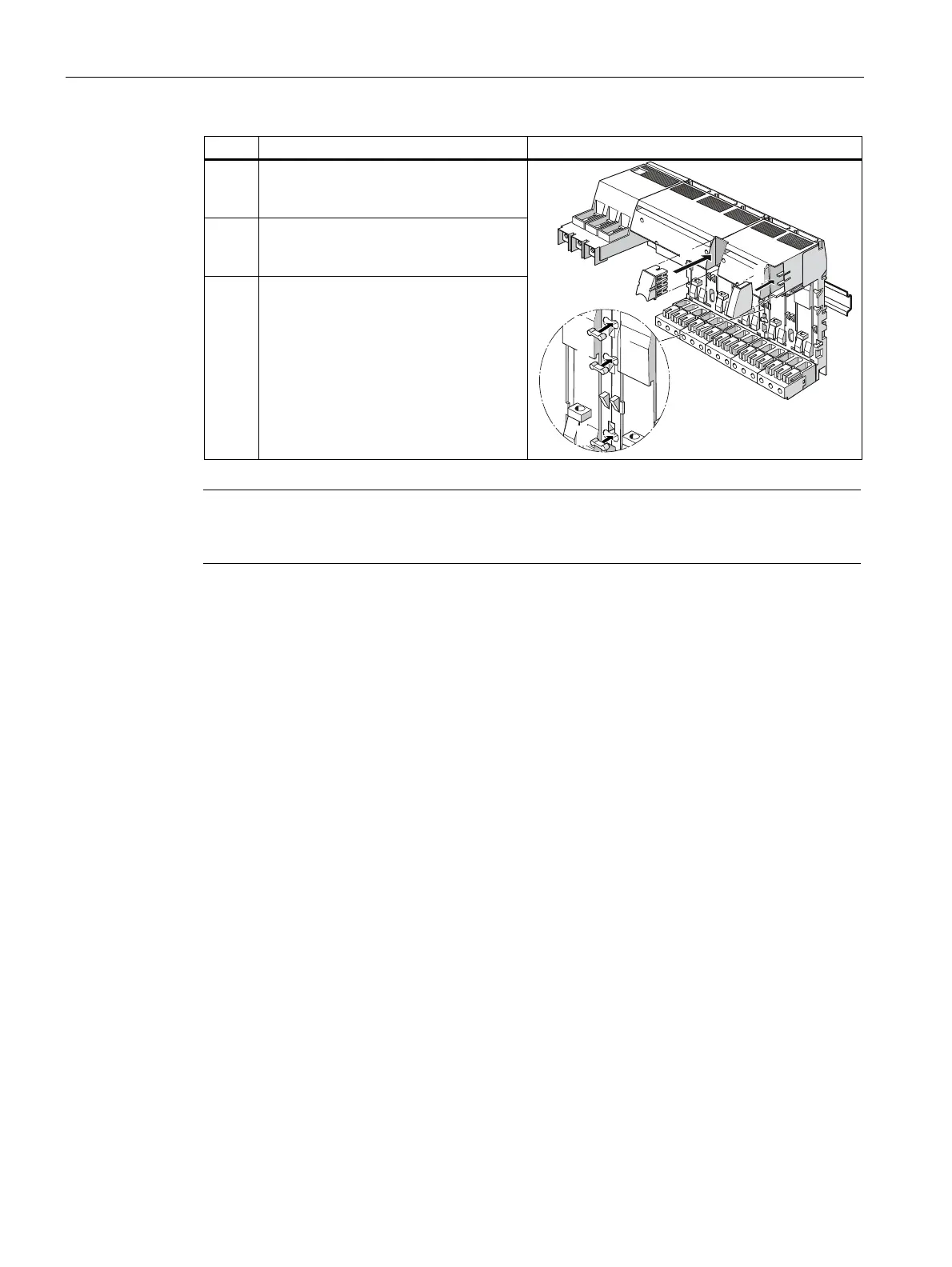

Step Instructions Image
4
Use the 3 link wedges to establish a
mechanical connection between the
2 modules.
5 Use an extension connector to establish
an electrical connection between the
2 modules.
6 Attach the end cover to the additional
extension module.
5
6
4
4
4
Note
If the infeed system is being mounted on a vertical DIN rail, a suitable stopper must be
installed underneath the infeed system to keep it in place.
