Accessories
12.2 External auxiliary switch block
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
91
12.2 External auxiliary switch block
12.2.1 Description of the hardware
An auxiliary switch block can be mounted on the 3RA61 compact starter direct starter. Two
auxiliary switch blocks can be mounted on the 3RA62 compact starter reversing starter. The
contacts of the auxiliary switch open and close along with the main contacts.
The external auxiliary switch block is available with screw-type or spring-loaded connection
technology in the following versions:
● 2 NO contacts
● 2 NC contacts
● 1 NO contact + 1 NC contact

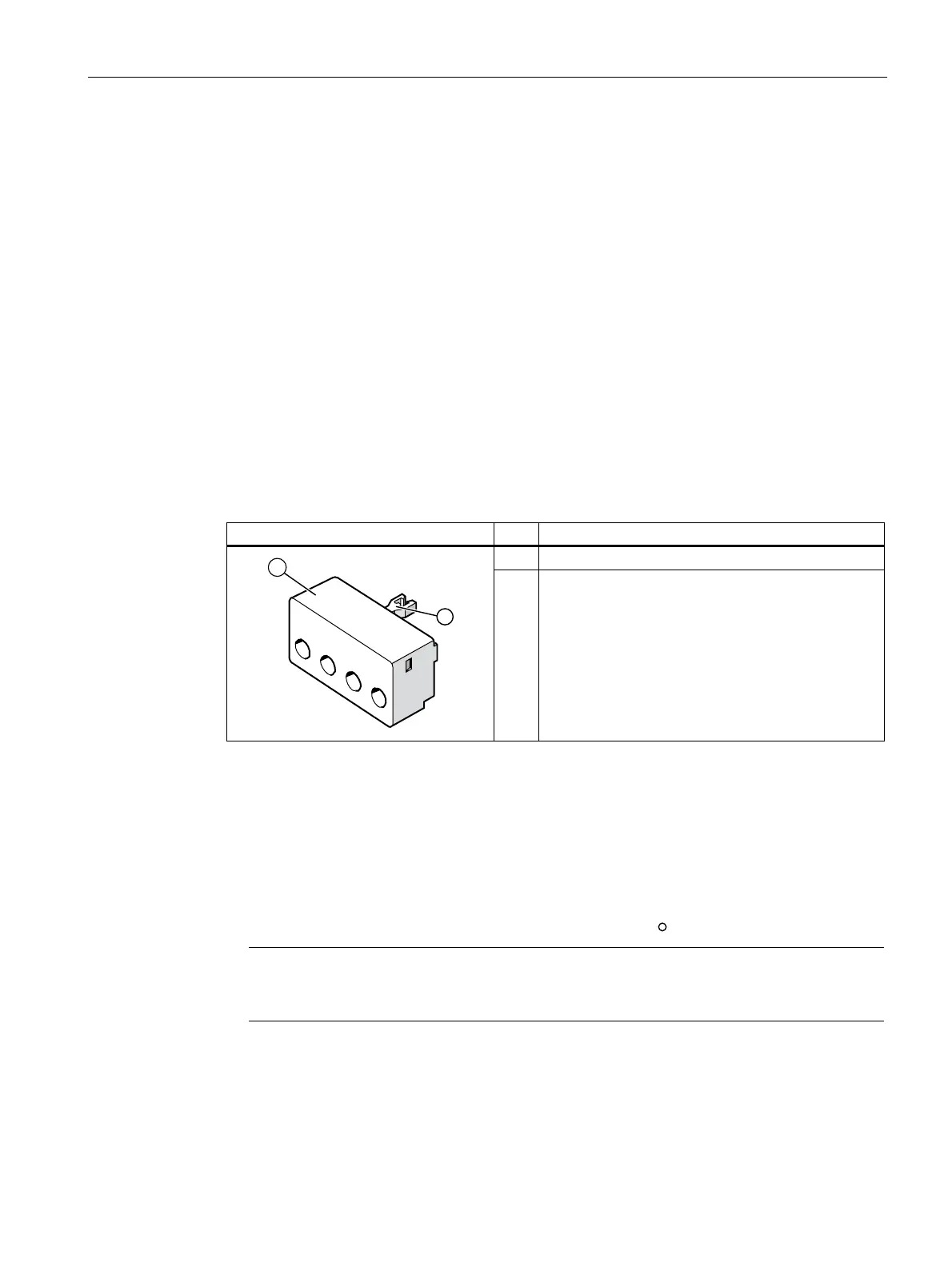

Configuration
View No. Meaning
(1) Auxiliary switch block for compact starter
(2) Mechanical connection point
12.2.2 Installing and removing the auxiliary switch block for the compact starter
Requirements
● The compact starter must be switched off (actuator set to OFF position).
Note
If an external auxiliary switch block is installed on the compact starter, it will not be
possible to use the control kit.
