12.2 External auxiliary switch block
SIRIUS 3RA6 Compact Starter
92 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

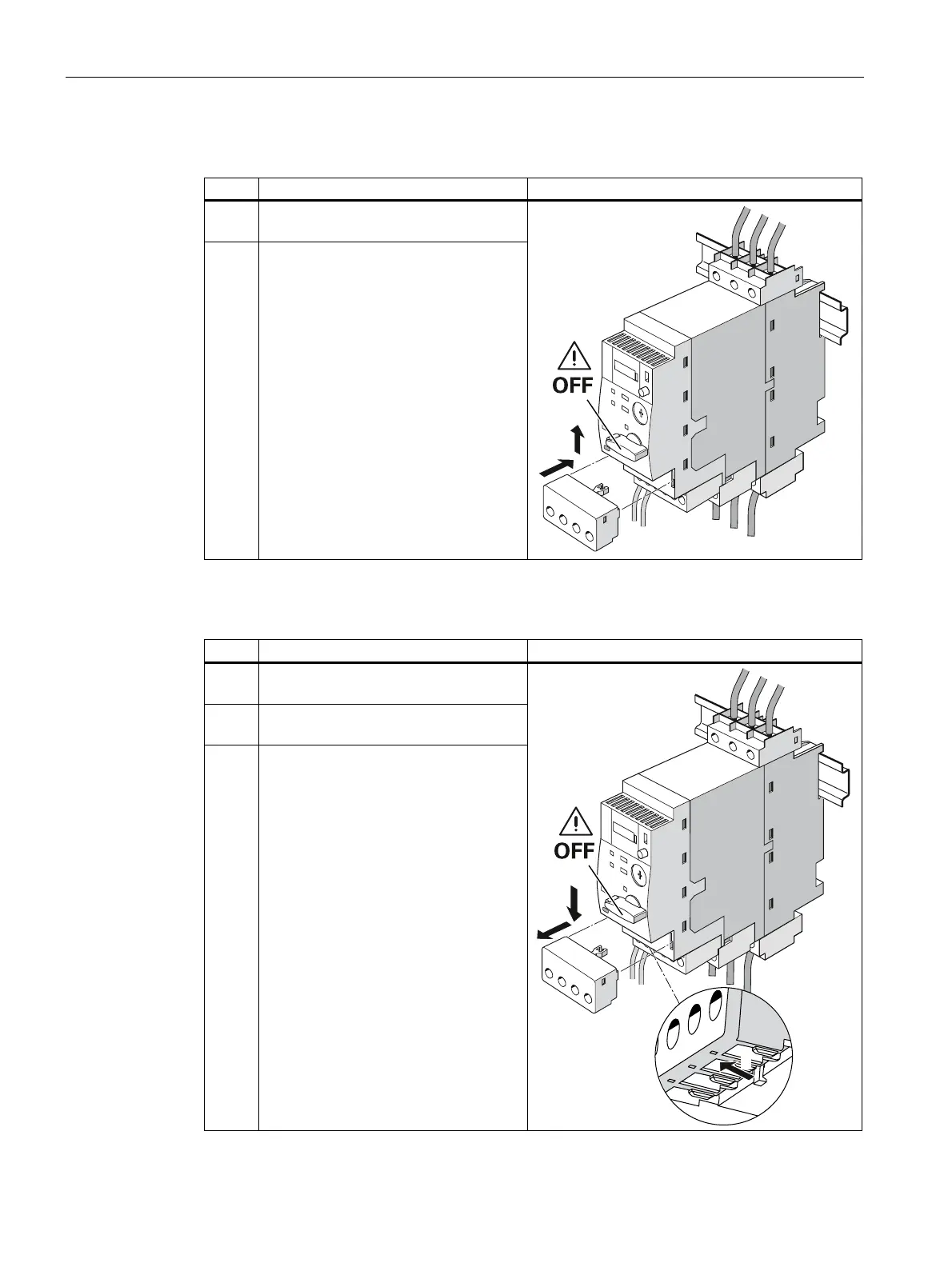

Installing the auxiliary switch block
Step Instructions Image
1 Insert the auxiliary switch block into the
location holes on the compact starter.
2 Push the auxiliary switch block up until it
engages.
1
2
Removing the auxiliary switch block
Step Instructions Image
1 Release the locking latch on the lower
side of the auxiliary switch block.
2 Push the auxiliary switch block
downwards.
3 Remove the auxiliary switch block from
the compact starter by pulling it
forwards and off.
2
3
1
