4.2 Supply possibilities in main circuit
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
35
4.2.3 8US busbar adapter
The compact starters are mounted on the 8US busbar adapter and connected on the line
side. This ready-to-use unit plugs directly onto the busbar systems, thereby taking care of
mechanical fastening and electrical connection at the same time.
Installation with 8US busbar adapter

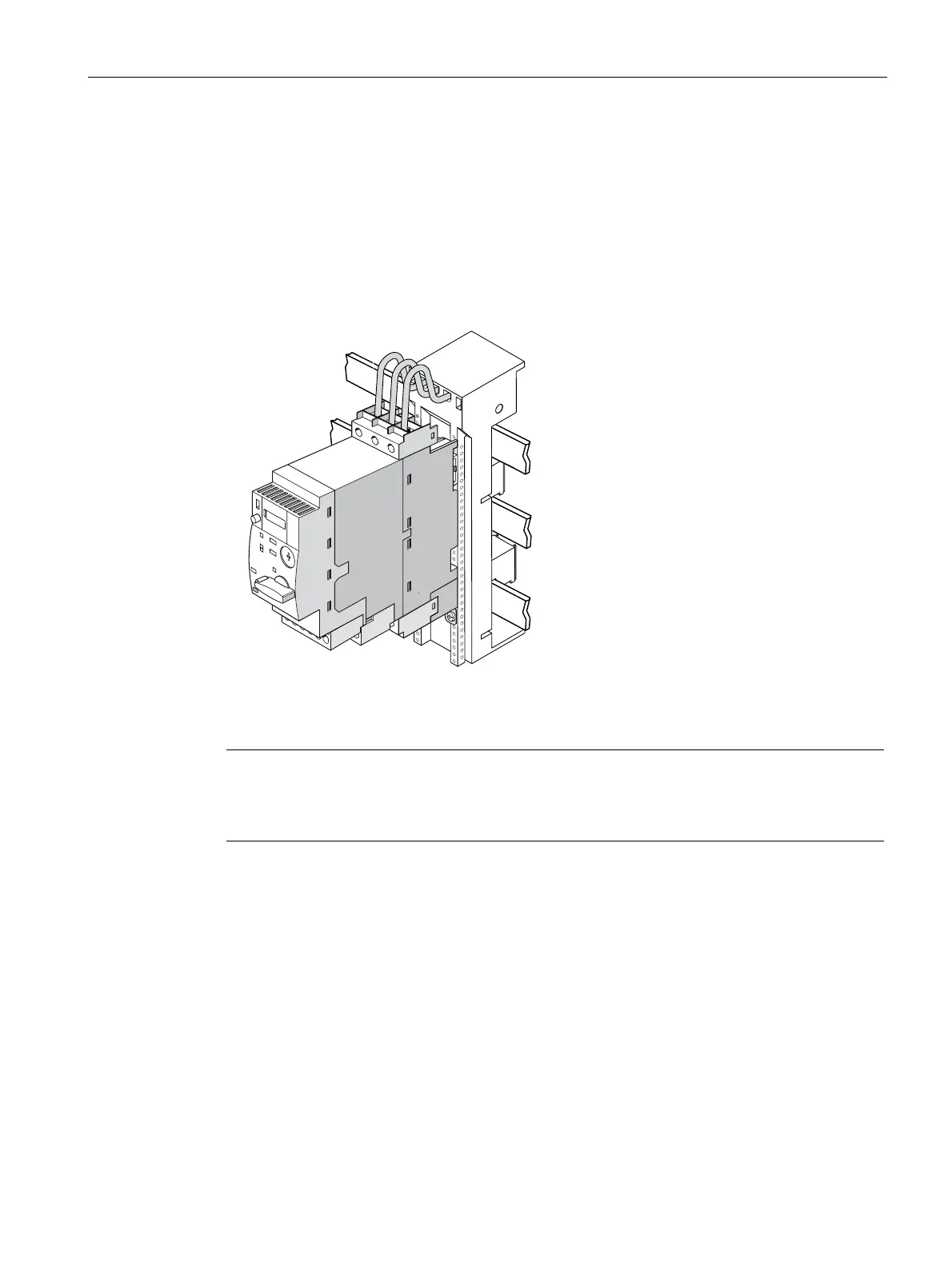

Figure 4-6 Infeed via 8US busbar adapter
Note
The 8US busbar adapter plus compact starters must be arranged side by side on the busbar
system without any space in between in order to meet the specified vibratory load and shock
load requirements.
