Configuration
4.2 Supply possibilities in main circuit
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
37
The following supply possibilities are available for ensuring that the creepage and clearance
requirements of UL 508 are met:
59 +
5$ $%
59 (%

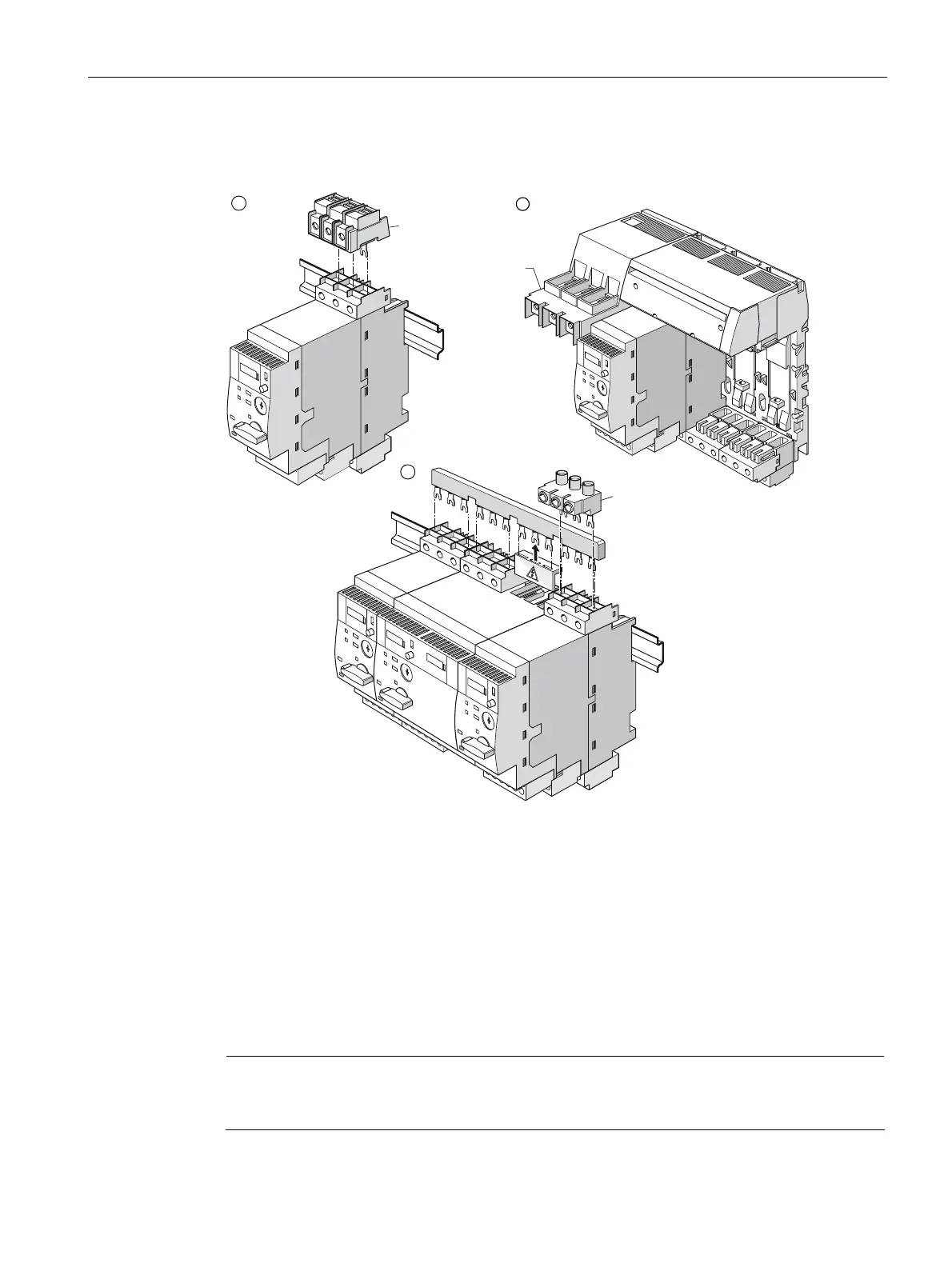

Figure 4-7 Terminals for infeed in accordance with UL 508 (Type E)
No. Type of infeed Infeed terminal (in accordance with UL 508, Type E) Order number
(1) Parallel wiring Terminal for Self-Protected Combination Motor Controller
(Type E)
3RV1928-1H
(2) Infeed system for 3RA6 Left infeed, 50/70 mm
2
screw terminal with three slots,
outgoing terminal with screw-type or spring-loaded
connection technology, incl. PE bar
3RA6813-8AB
3RA6813-8AC
(3) 3-phase busbar 3-phase infeed terminal for installing Type E starters,
UL 508
3RV1925-5EB
Note
According to C22.2-14, terminal blocks are not required for installation in accordance with
CSA requirements.
