6.3 AS-i mounting module for compact starter
Features
The AS-i mounting module is mounted on the compact starter with 24 V control voltage,
thereby enabling it to be controlled via an AS-Interface. The following components are
required for this purpose:
● AS-i master
● AS-i power supply unit
● 24 VDC PELV power supply unit
● Cables and connection plugs
The AS-i mounting module is available in 2 versions:
● AS-i mounting module for compact starter (order number: 3RA6970-3A)
● AS-i mounting module for compact starter with two local inputs for safe shutdown (order
number: 3RA6970-3B). This version of the AS-i mounting module also allows limit
switches, for example, to be connected via a screw terminal for the safe shutdown of
compact starters up to category 2 in accordance with EN ISO 13849-1.
For additional information on connecting the AS-i mounting module, please refer
to "
Connecting the compact starter (24 V) with optiona
l AS-i mounting module (Page 77)".

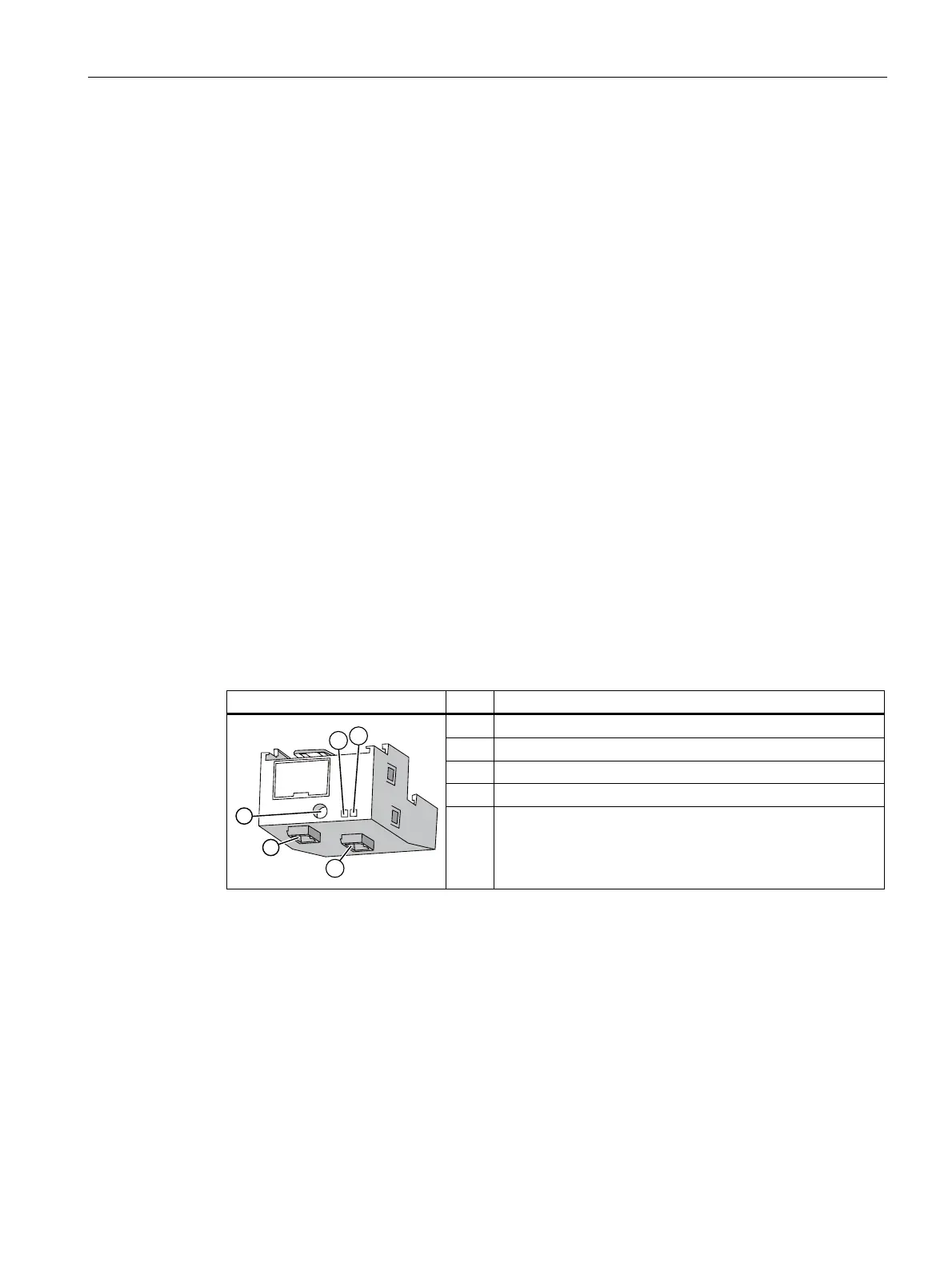

Configuration of the AS-i mounting module for compact starter (3RA6970-3A)
View No. Function
(1) 24 VDC PELV power supply unit connection
(2) AS-i data cable connection
(3) AS-i/Fault LED
(4) AUX Power LED
(5) Addressing unit connection
