Description of the hardware
6.3 AS-i mounting module for compact starter
SIRIUS 3RA6 Compact Starter
48 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

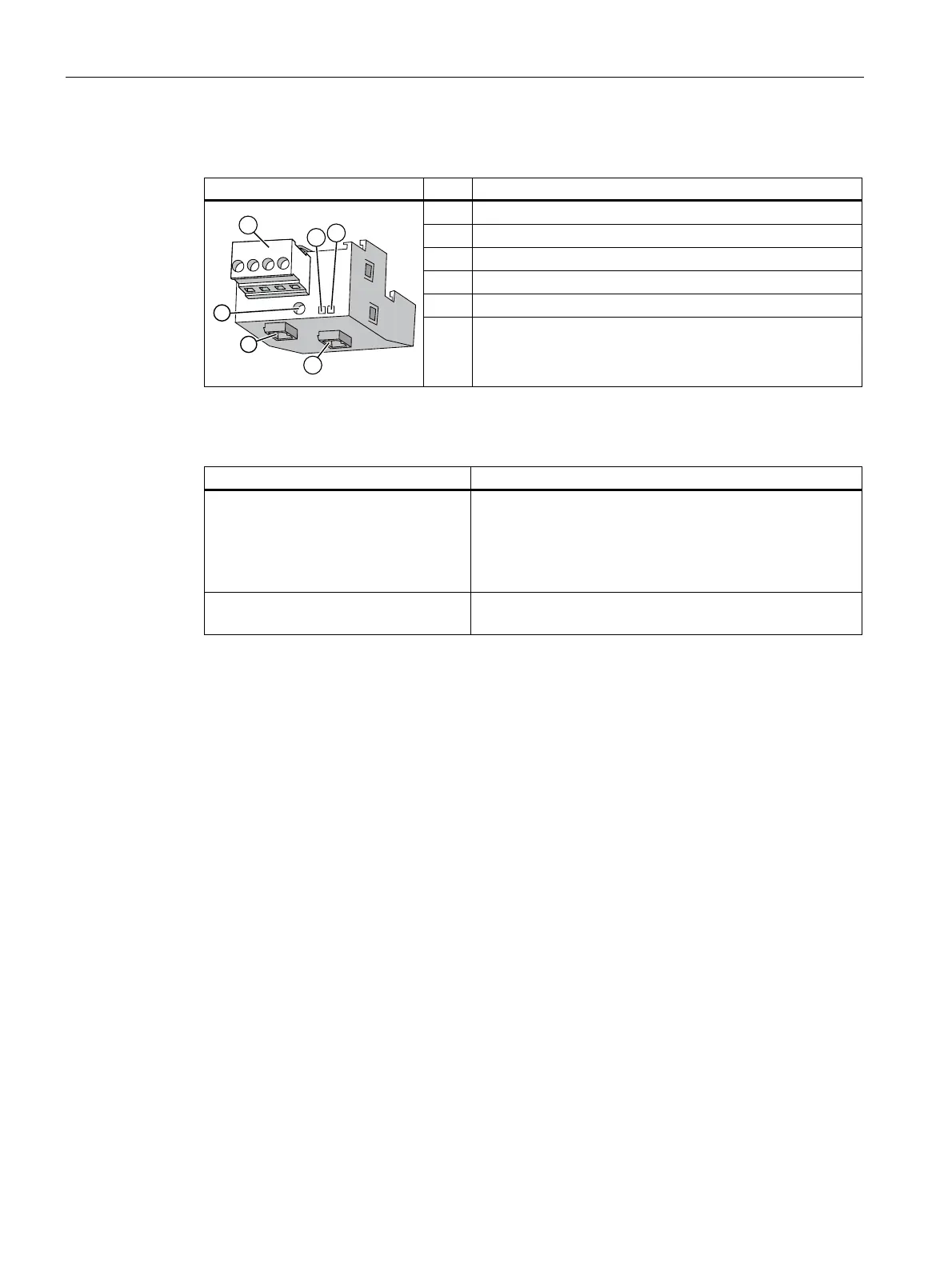

Configuration of AS-i mounting module with 2 local inputs for safe shutdown (3RA6970-3B)
View No. Function
(1) 24 VDC PELV power supply unit connection
(2) AS-i data cable connection
(3) AS-i/Fault LED
(4) AUX Power LED
(5) Addressing unit connection
(6) Terminal for connecting a limit switch
Display elements and operator controls on the AS-i mounting module
Element Description
AS-i/Fault LED
• Off: No AS-i voltage on AS-Interface chip
• Flashing red/yellow: The address of the AS-i mounting
module is "0".
• Green: Ready/communication OK
• Red: Communication error
AUX Power LED
• Off: No AUX Power
• Green: AUX Power present
