12.3.5 Installing the accessories for a SIRIUS infeed system for 3RA6
Installing PE accessories
The PE infeeds and taps are available with screw-type or spring-loaded connection
technology. The PE infeed can be mounted to the right or left of the screw-type infeeds and
extension modules. The PE tap is inserted into the relevant slots from the bottom. The
modules offer the following slot options:
● Screw-type infeed (25/35 mm
2
), screw-type infeed (50/70 mm
2
),
3-slot extension module: 4 slots
● 2-slot extension module: 2 slots
The figure below provides an overview of the mounting options available for the PE infeed
and PE tap.

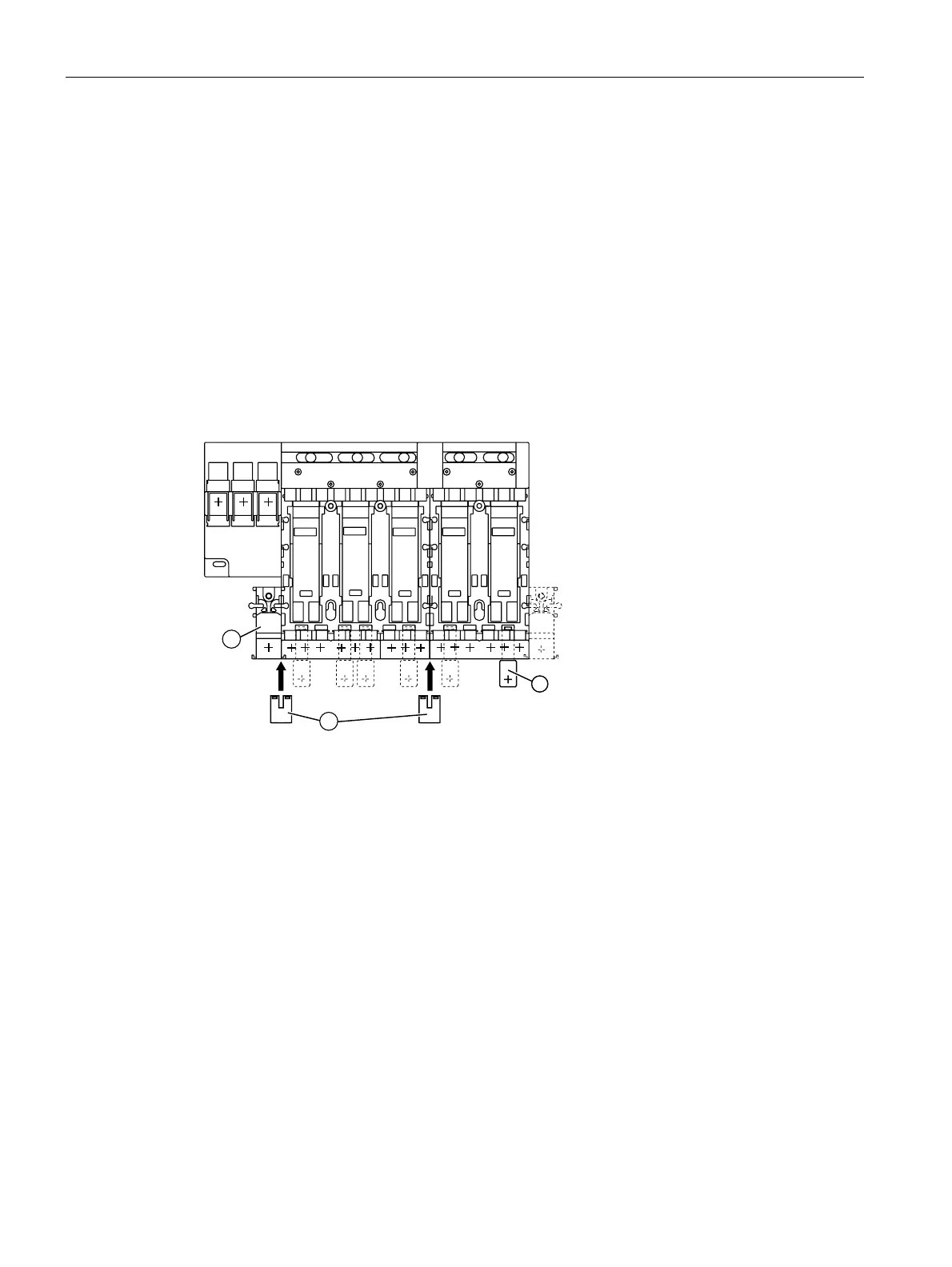

Figure 12-5 Mounting options for PE infeed and PE tap
(1) PE infeed, 25/35 mm
2
, with screw-type or spring-loaded connection technology
(2) PE tap, 6/10 mm
2
, with screw-type or spring-loaded connection technology
(3) PE extension connector
