Service
13.2 Installing/Removing auxiliary and control conductor terminal blocks
SIRIUS 3RA6 Compact Starter
136 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

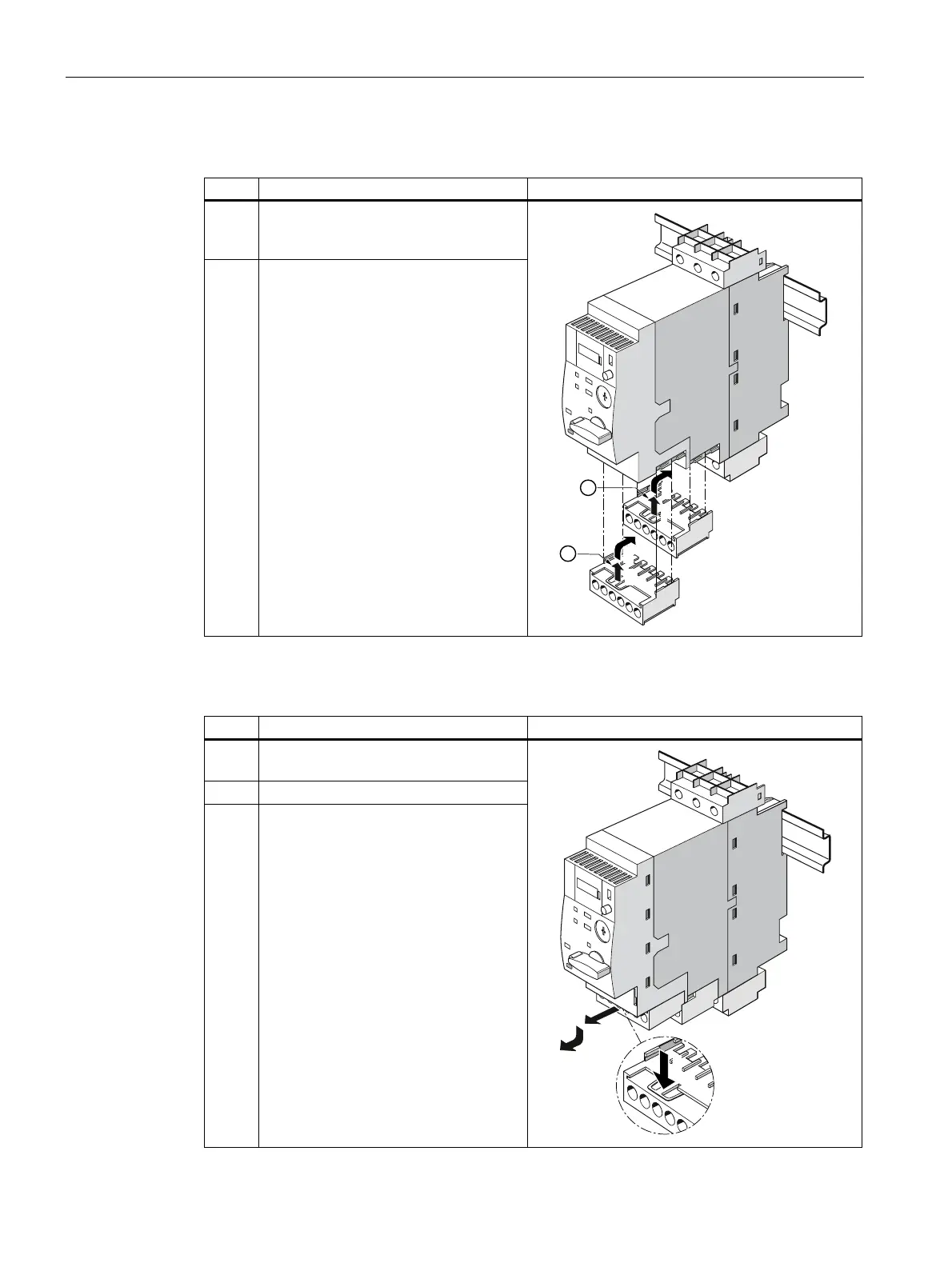

Installing auxiliary and control conductor terminal blocks on the compact starter
Step Instructions Image
1 Insert the removable terminal block into
the device's mechanically coded
guiderail from the bottom.
2 Push the terminal block up and then
back until you hear it engage.
Make sure that you install the two
terminal blocks in the correct order.
1
1
2
2
$
%
Removing auxiliary and control conductor terminal blocks from the compact starter
Step Instructions Image
1 Push the terminal block's release clip
down.
2 Pull the terminal block out to the front.
3 Move the terminal block down and out
from the compact starter's mechanically
coded guiderail.
2
3
1
