Connecting
9.5 Disconnecting terminal blocks
SIRIUS 3RA6 Compact Starter
80 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

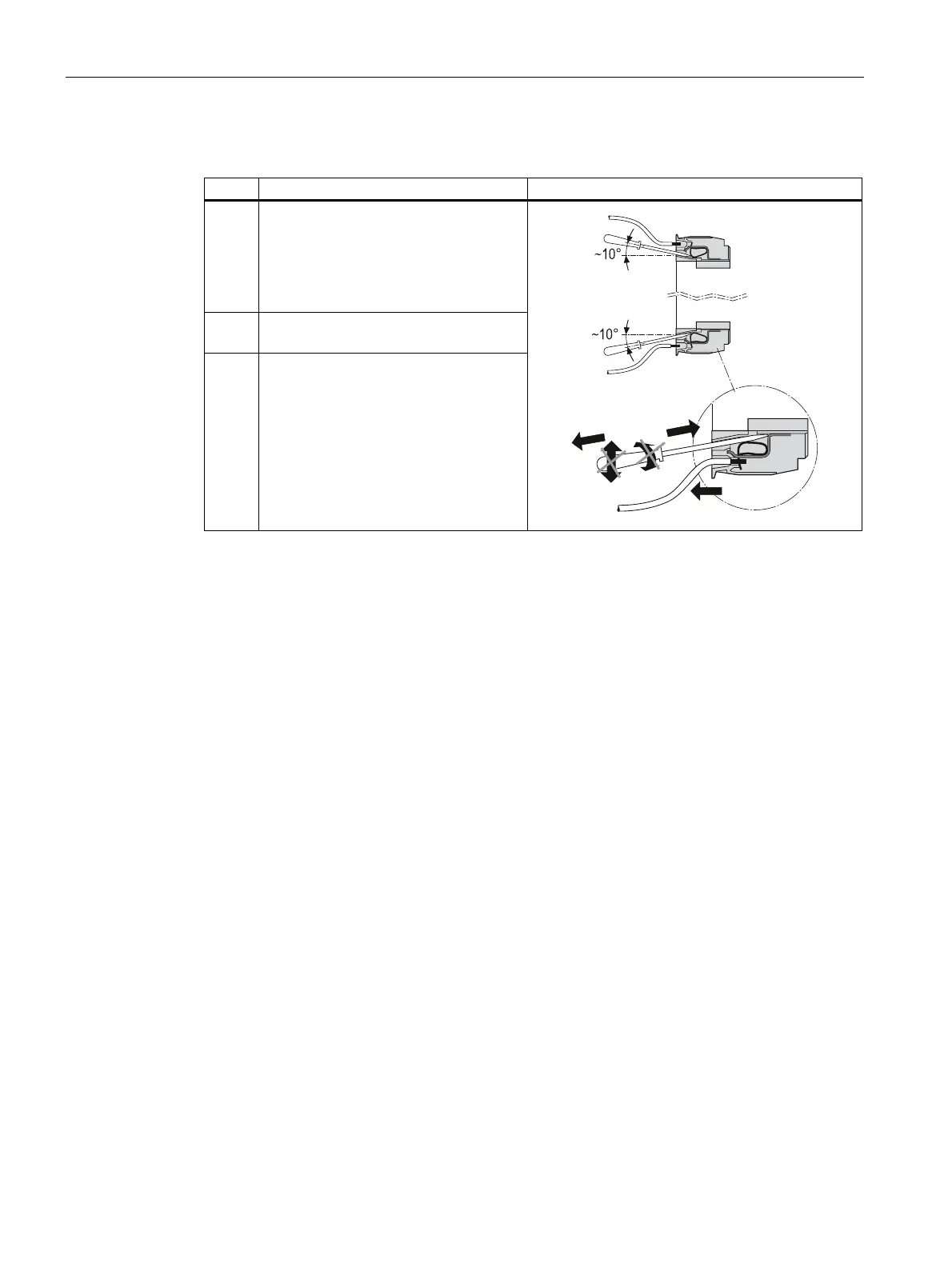

Procedure for spring-loaded terminals
Step Instructions Image
1 Insert the flat-head screwdriver into the
square opening of the spring-loaded
terminal as far as it will go. Please
observe a 10° horizontal angular
deviation of the screwdriver to the oval
opening.
2 Remove the cable from the oval
opening.
3 Remove the screwdriver.
1
2
3
