Dimension drawings
15.2 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
165
3RA6813-8AC
70
57 45
135
111
102
140
58
148
208
19
Ø 4,5
155
67
79
5
227
60

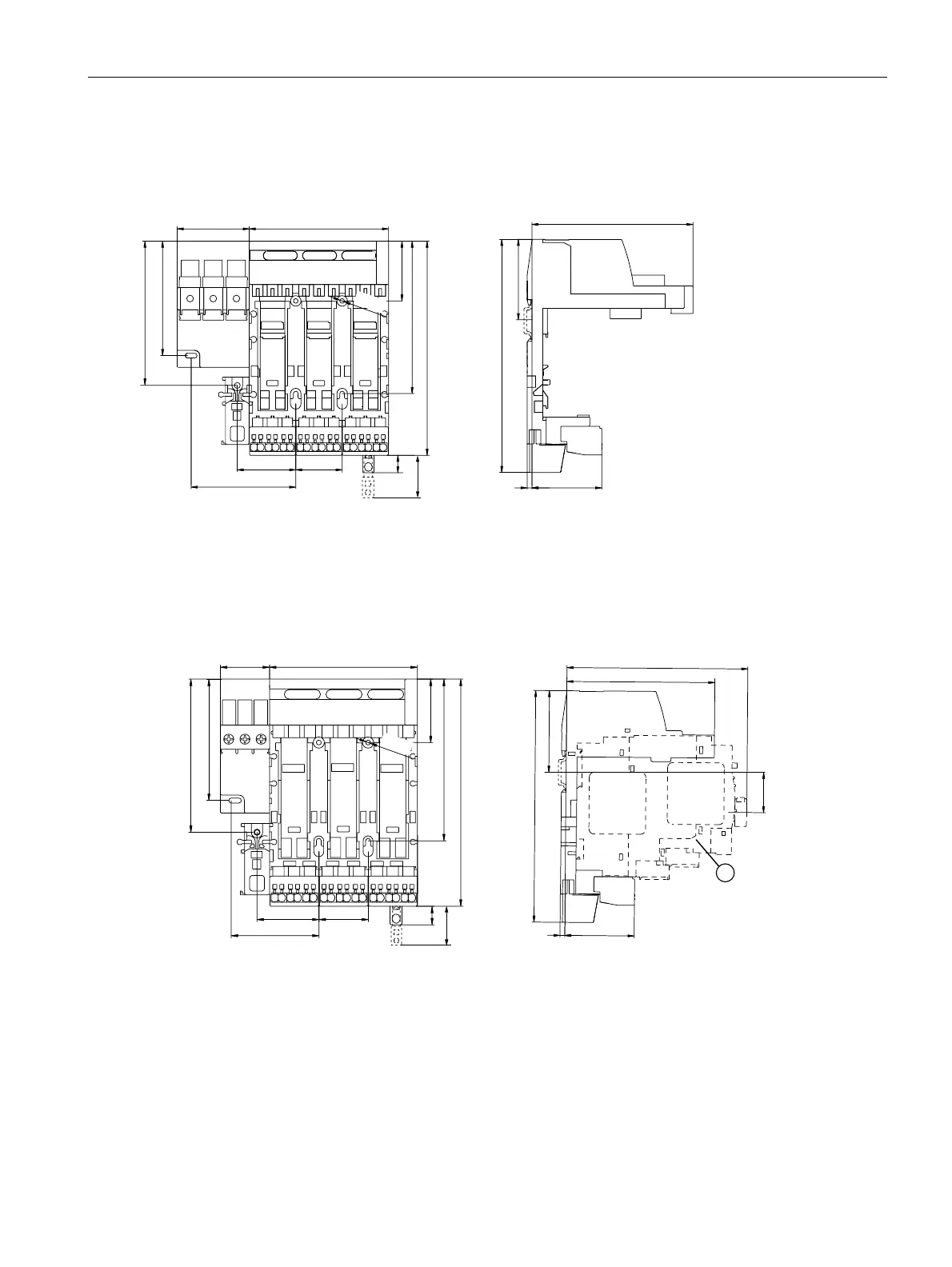

Figure 15-5 Dimension drawing of screw-type infeed (50/70 mm
2
) featuring outgoing terminals with spring-loaded
connection technology
3RA6812-8AC

140
111
135
45
58
148
57
45
76
208
19
Ø 4,5
60
144
176
38
79
67
5
227
Figure 15-6 Dimension drawing of screw-type infeed (25/35 mm
2
) featuring outgoing terminals with spring-loaded
connection technology
(1) 3RA6 compact starter
