Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
106 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

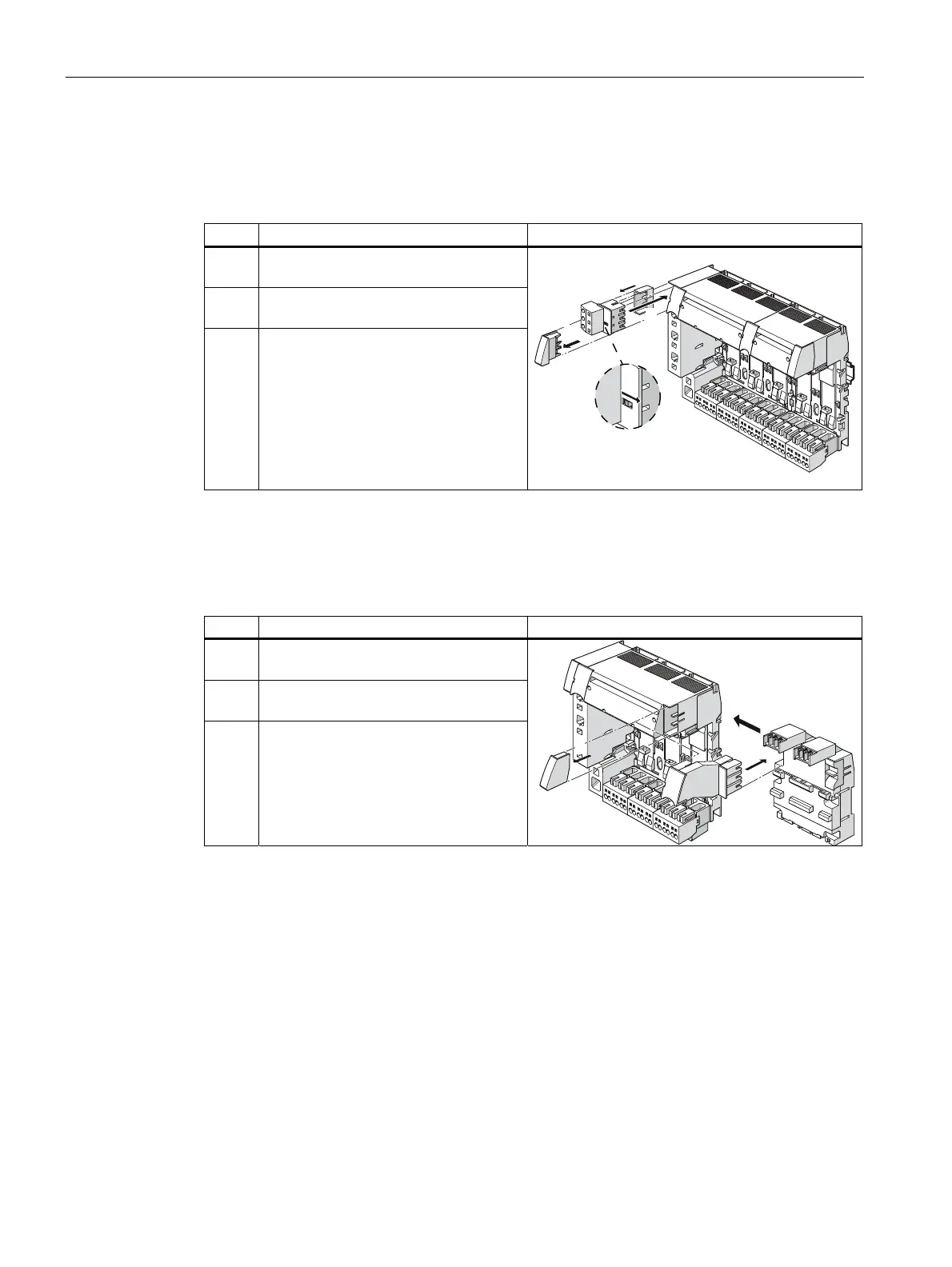

Installing the terminal block
The terminal block is available with spring-loaded connection technology. It can be installed
on the right or left-hand side of the extension module.
Step Instructions Image
1 Remove the end cover from the
extension module.
2 Mount the terminal block on the
extension module.
3 Lock the terminal block.
1
2
3
Connecting the SIRIUS infeed system for 3RA6 and SIRIUS 3RV19 infeed system
The 3RV19 infeed system can be mounted on the right-hand side of the infeed
system for 3RA6 using the extension connector for 3RV19 (3RA6890-1AA).
Step Instructions Image
1 Remove the end cover from the infeed
system for 3RA6.
2 Push together the infeed system
for 3RA6 and the 3RV19 infeed system.
3 Use the extension connector for 3RV19
to connect the infeed systems.
2
3
1
