Siemens SIRIUS Series System Manual

Accessories
12.3 SIRIUS infeed system for 3RA6
SIRIUS 3RA6 Compact Starter
110 System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02

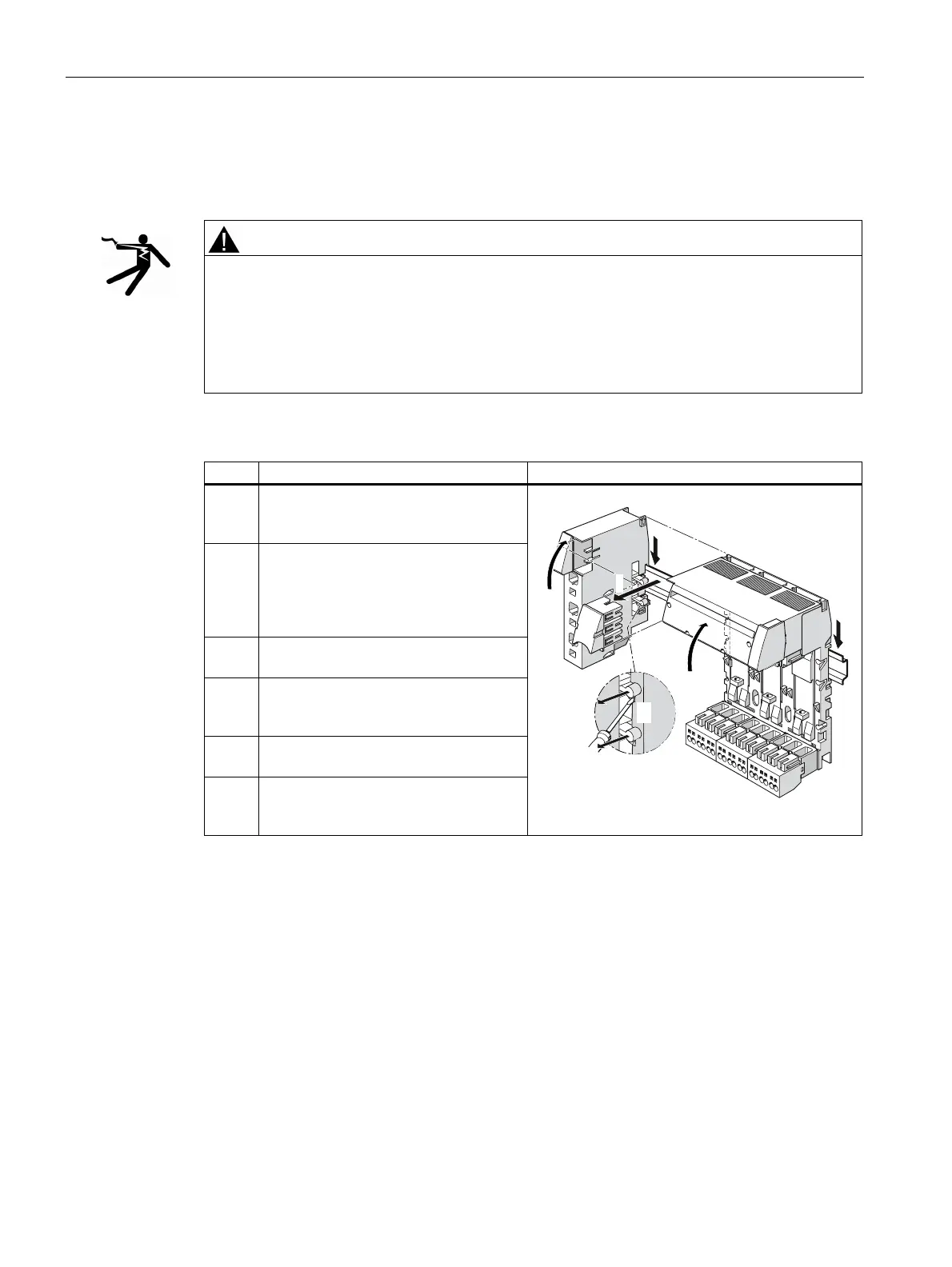

Removing a spring-loaded infeed with extension module from a DIN rail
The spring-loaded infeed is mounted on the right or left of a 3-slot or 2-slot extension
module.
WARNING
Danger, high voltage!
Removing the extension connector from the infeed system for 3RA6 while the system is live
can damage both the extension connector and infeed system and can also result in an
electric shock.
Remember to disconnect the system from the power supply before removing the extension
connector.
Step Instructions Image
1 Remove the extension connector that
has been used to connect the extension
module to the spring-loaded infeed.
2 Use a screwdriver to lever out the 2 link
wedges that have been used for the
mechanical connection between the
extension module and the spring-loaded
infeed.
3 Pull the extension module down until it
can be pulled away from the DIN rail.
4 Pull the extension module away from
the DIN rail and lift it off the DIN rail's
upper edge.
5 Pull the spring-loaded infeed down until
it can be pulled away from the DIN rail.
6 Pull the spring-loaded infeed away from
the DIN rail and lift it off the DIN rail's
upper edge.
2
4
6
3
1
5
