Accessories
12.5 8US busbar adapter
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
125

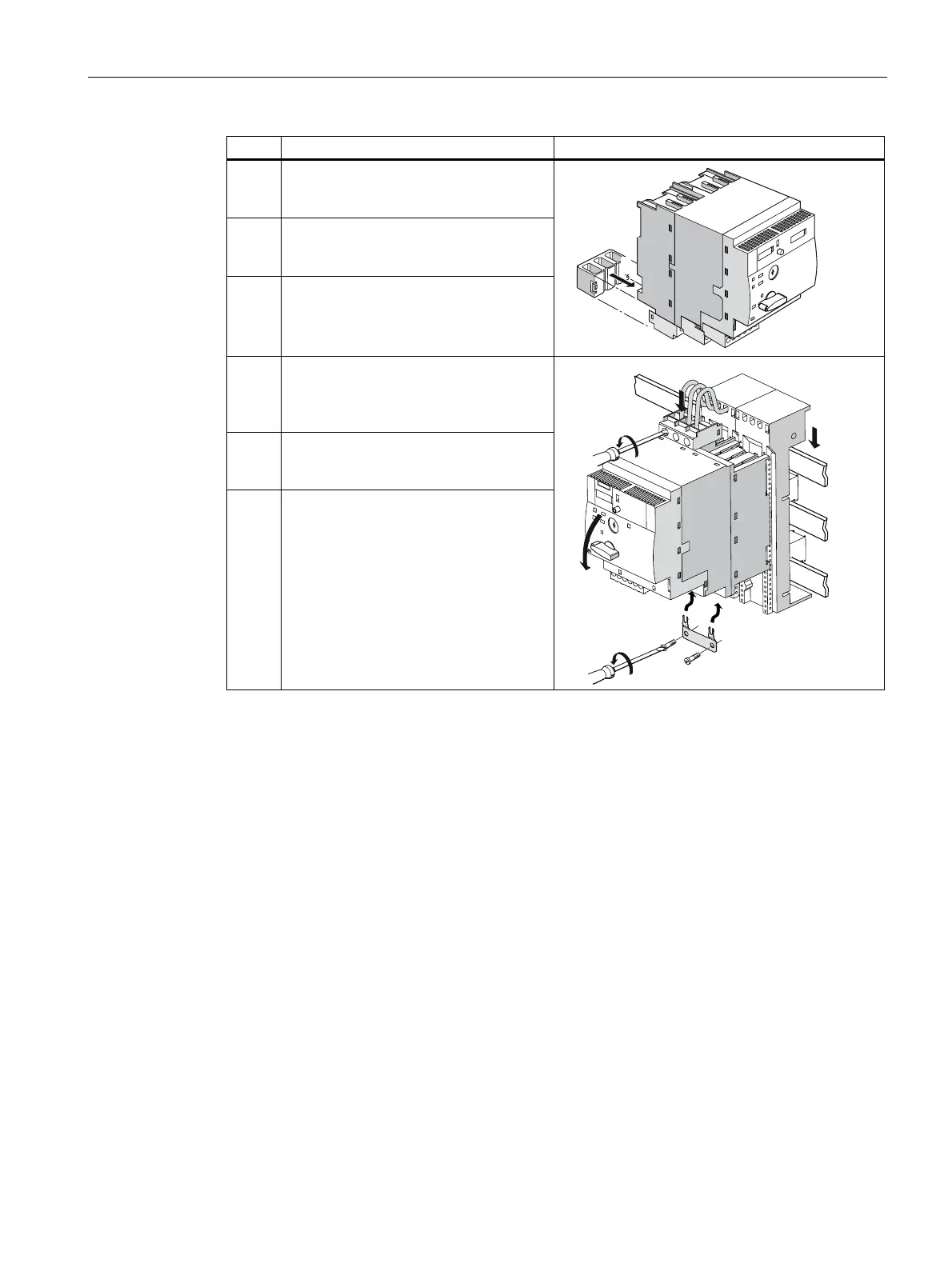

Step Instructions Image
4
Click the adapter for screw fastening the
reversing starter into position behind the
lower main conductor terminal.
5 Snap the reversing starter onto the DIN
rail, connecting it to the busbar adapter
and device holder.
6 Push the mounting lug into the adapter
from the bottom.
4
7 Insert each of the screws through the
relevant holes in the mounting lug and
screw the reversing starter onto the
busbar adapter.
8 Connect the wiring from the busbar
adapter to the reversing starter's main
conductor terminal block.
9 Mount the busbar adapter plus device
holder on the busbars from the top.
8
8
9
6
7
5
   1P
