Siemens SIRIUS Series System Manual

System description
3.3 System components
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
19

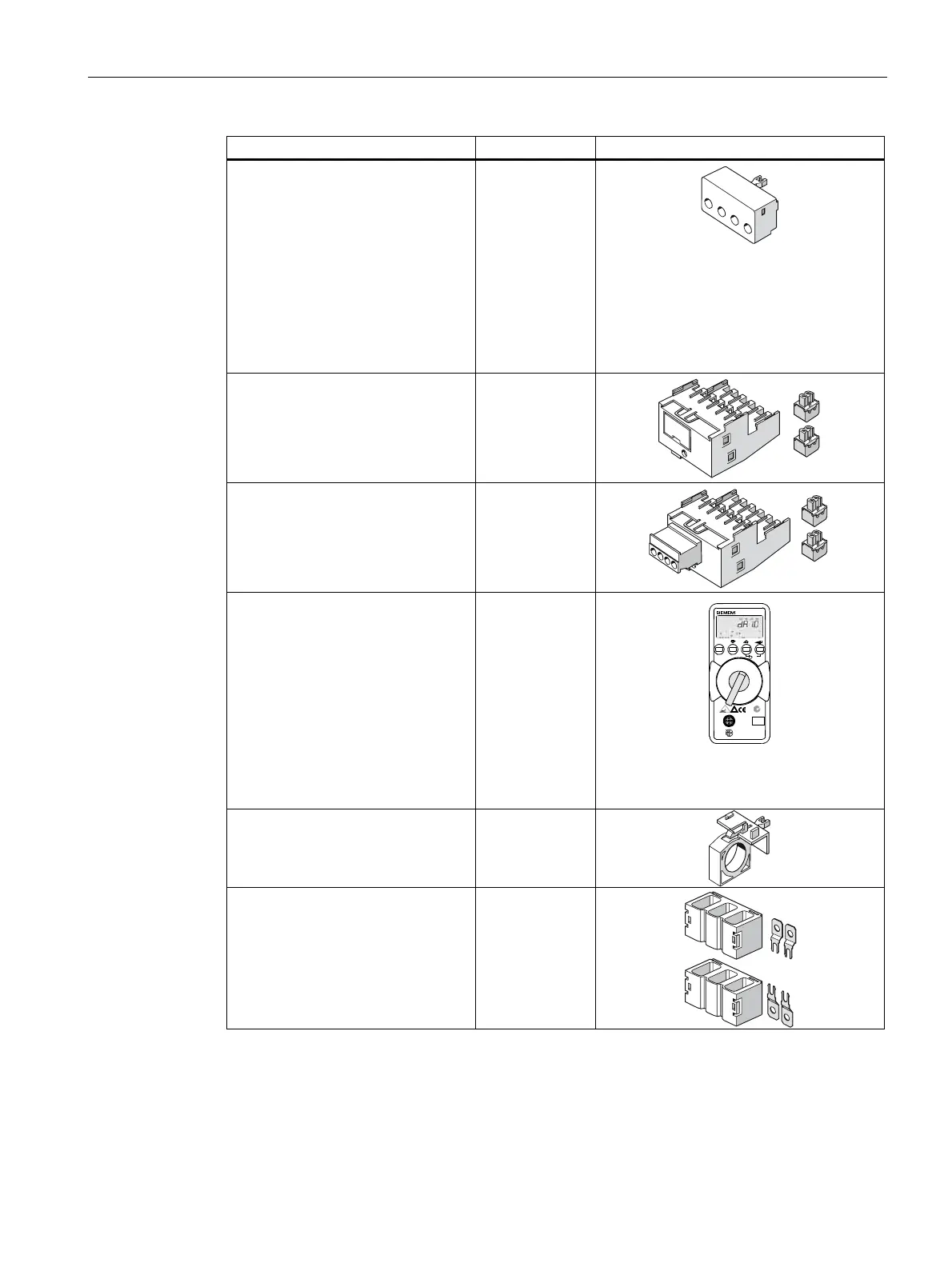

System component Order number Image
Auxiliary switch block for
compact starter
- Screw-type connection technology:
2 NO contacts
2 NC contacts
1 NO contact + 1 NC contact
- Spring-loaded connection
technology:
2 NO contacts
2 NC contacts
1 NO contact + 1 NC contact
3RA6911-1A
3RA6912-1A
3RA6913-1A
3RA6911-2A
3RA6912-2A
3RA6913-2A
AS-i mounting module for compact
starter
3RA6970-3A
AS-i mounting module for compact
starter with two local inputs for safe
shutdown
3RA6970-3B
AS-i mounting module addressing
unit
- For active AS-Interface modules,
intelligent sensors and final
controlling elements
- Corresponds to AS-Interface
version 2.1
- Includes extended addressing
mode
- Scope of delivery includes
addressing cable (1.5 m stereo
jack)
3RK1904-2AB01
ADDR
ASI V
Pro ile
Data
Par m te
Memo y
COM
DDR
OFF
MEM
+
3RK1904-2AB01
ESC
N 17
4321b
D T
1
5
1
3
2 4
ASI +
ASI –
IR Ad es i g
Control kit 3RA6950-0A
Adapter for screw fastening the
compact starter
(you will need 2 sets for the
reversing starter)
3RA6940-0A
