Installation/Removal
8.2 Removing the SIRIUS 3RA6 compact starter and AS-i mounting module
SIRIUS 3RA6 Compact Starter
System Manual, 02/2008, GWA 4NEB 560 0601-02 DS 02
67
When removing a reversing starter, you will need to insert two screwdrivers into the
neighboring openings at the same time.

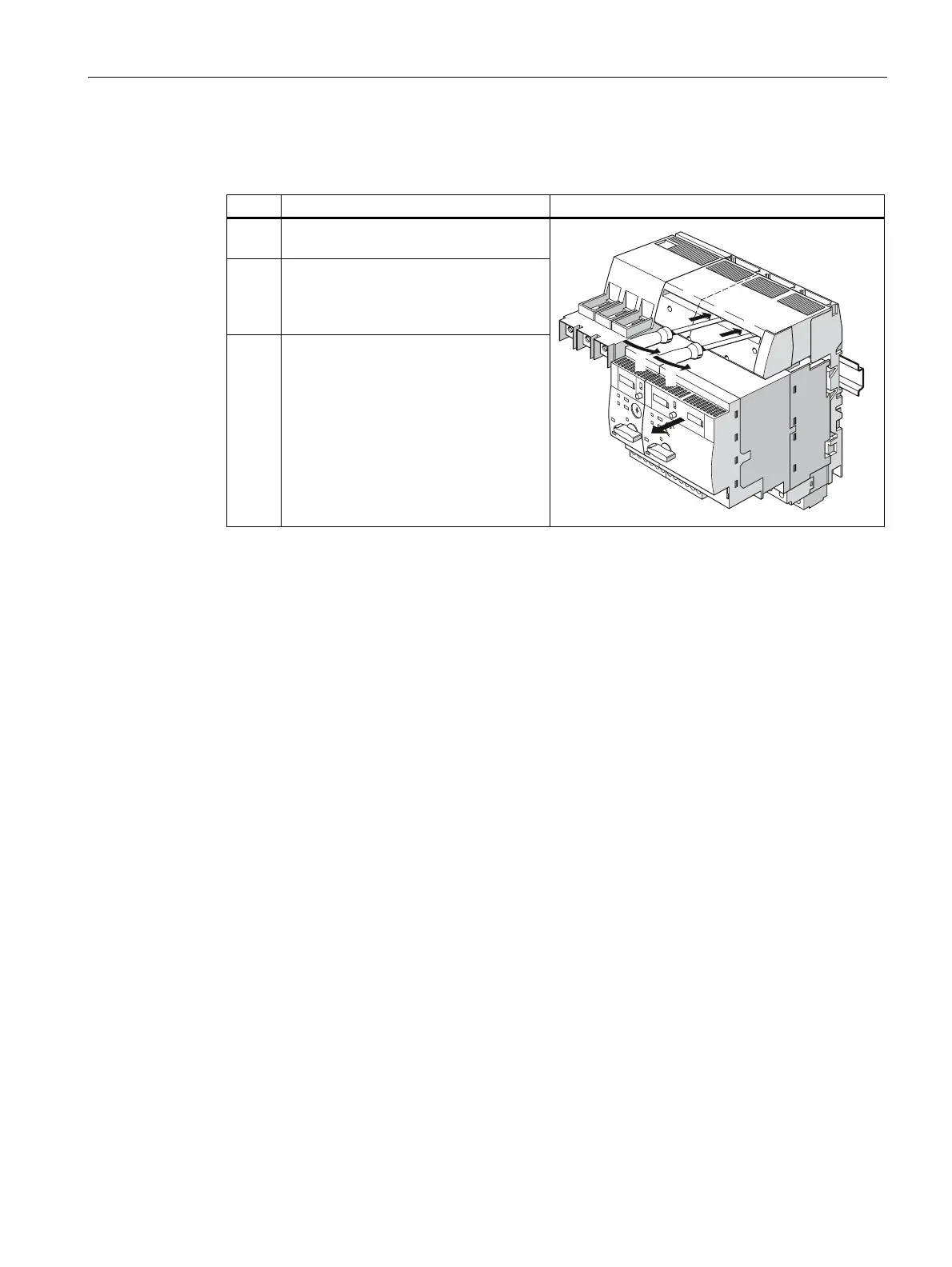

Step Instructions Image
1 Insert 2 screwdrivers into the opening
above the reversing starter.
2 Tilt the screwdrivers to the right and
then down (see arrow on enclosure lid)
so that you can push the reversing
starter forwards by approx. 5 mm.
3 Move the reversing starter forwards to
remove it from the screw-type infeed or
extension block.
1
1
2
2
3
