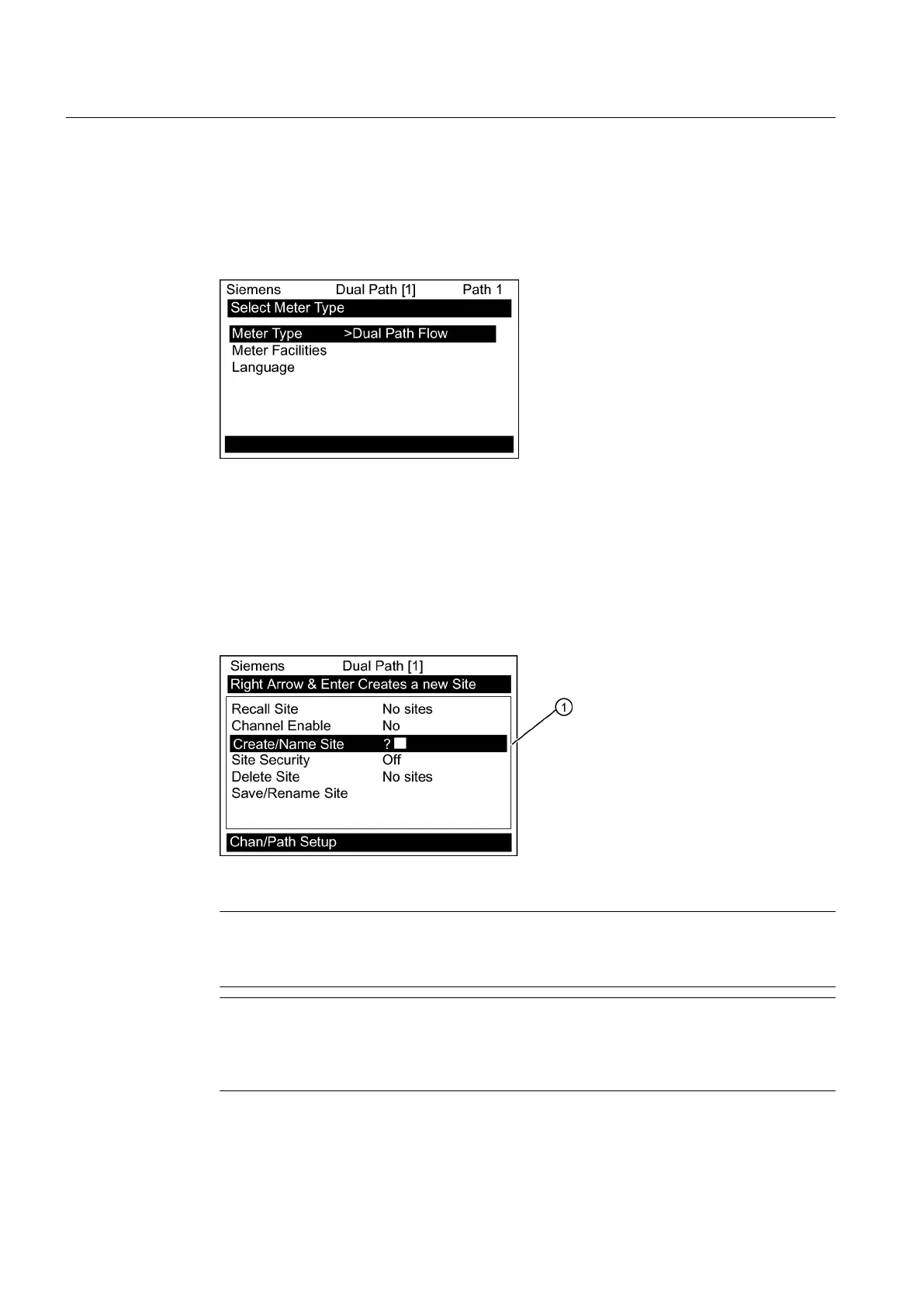

Select a Meter Type
1. Press the <MENU> key and select the Meter Type.
2. Press the <Right Arrow> and scroll to [Dual Path Flow].
3.
Press <ENT> to select. The [Dual Path Flow] menu will appear.
4. Press <ENT> to select. Press <Right Arrow> to select meter function. Press <ENT>.
Create a Site
1. Before proceeding make sure that English or Metric units have been selected.
2. At the [Channel Setup] Menu press <Right Arrow> and then <Down Arrow> to highlight
[Create/Name Site]. Press <Right Arrow> to enter a Site name.
3. Press <ENT> to create Site name (e.g., ABC).
① Insert desired name (8 characters max.)
Note
To select letters: Press <Right Arrow> to cursor and then press <Up/Down Arrows> to
select letters. Press <ENT> when done.
Note
To select English or metric units: In Meter Type Menu, scroll to Meter Facilities Menu.
Press <Right Arrow> and select preferred units. Press <ENT> to select. Press <Left
Arrow> and <Up Arrow> to return to main menu.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
34
Operating Instructions, 02/2010, A5E02951522A Revision 01
