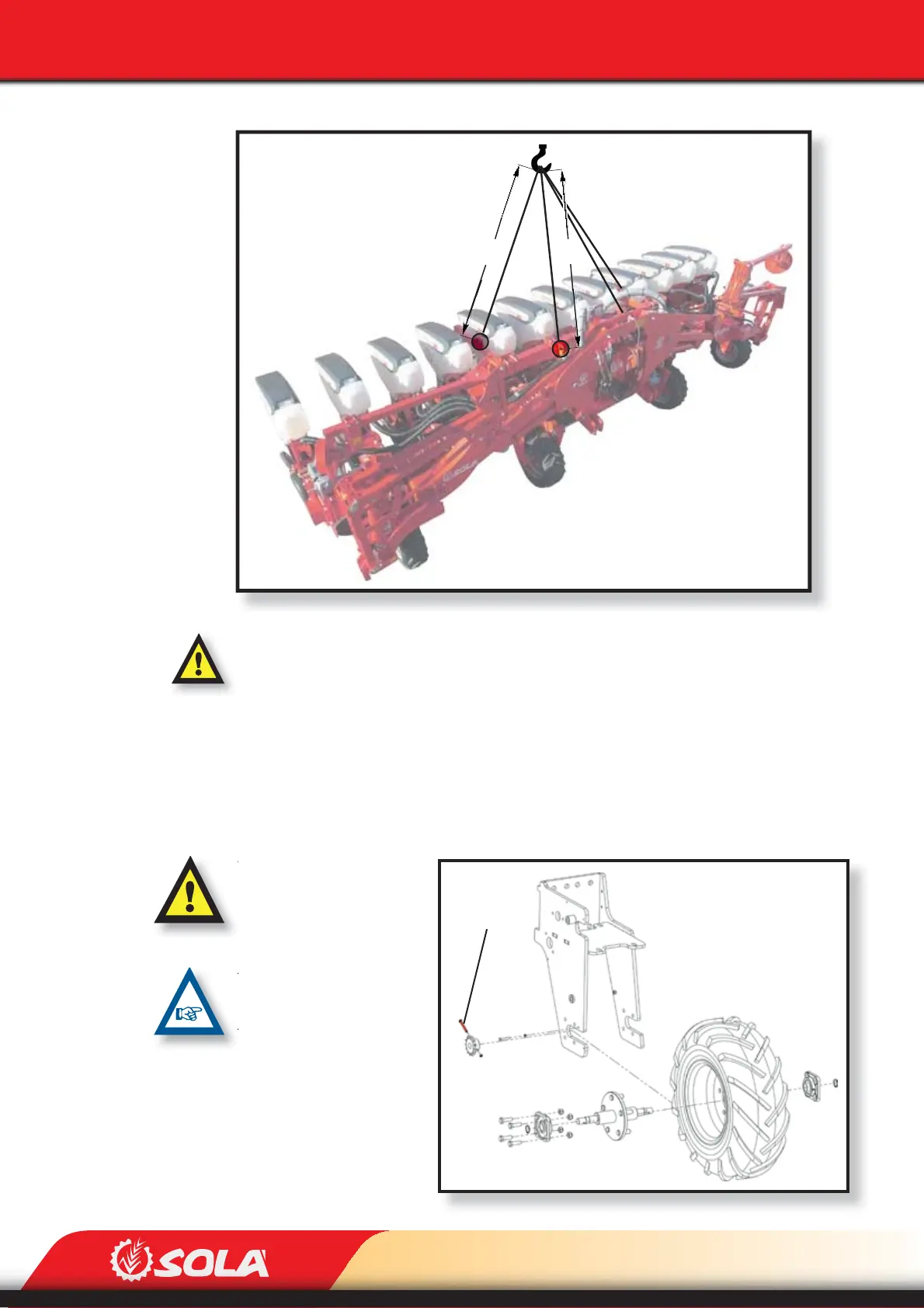

Fig. 2.2
Fig. 2.3
SAFETY INSTRUCTIONS
FUSIBLE
2.4 SAFETY ELEMENTS
In order to prevent damages during work, the planter is equipped with a fusible pin placed in
the cog of the wheels that control the transmission of the metering units (Fig. 2.3).
WHEN THE FUSIBLE PIN
BREAKS, THE SOWING EQUI-
PMENT WILL STOP WOR-
KING.
THE FUSIBLE PIN SHOULD
BE REPLACED AFTER 500
HOURS OF WORK (SEE SEC-
TION 9.1 CHECKING FRE-
QUENCY). IF IT IS NOT RE-
PLACED AFTER THIS TIME,
THE FUSIBLE PIN COULD
BREAK WITHOUT WARNING.
W
T
T
WARNING: PLEASE RESPECT THE DISTANCES B AND C (2 METRES) IN ORDER TO PREVENT DA-
MAGES TO THE MACHINE DURING THE RAISING OPERATION (Fig. 2.2).
