ADJUSTMENTS
MARKS ON THE SLOTTED BARS DEFINE THE CORRESPONDING DISTANCE (cm) BETWEEN CON-
SECUTIVE UNITS.
6.5.3.1 TELESCOPIC HYBRID
Units No. 2,4 and 6 (as in Fig. 6.36) are xed in the machine version TELESCOPIC HYBRID. Units
No. 1,3,5 and 7 are adjustable.
Adjusting the spacing between movable units depends on the unit number:
- Units Nº 1 and 7: adjust these units using their SLOTTED BARS. To adjust the slotted
bars, see section 6.5.3 TELESCOPIC MACHINE.
- Units Nº 3 and 5: adjust the spacing between units No. 2 and 3 using a spindle. Do
the same to adjust the spacing between units No. 5 and 6. To adjust the spindle/
ratchet see section 6.5.2 VARIANT MANUAL FIXED MACHINE – Adjusting one mete-
ring unit.

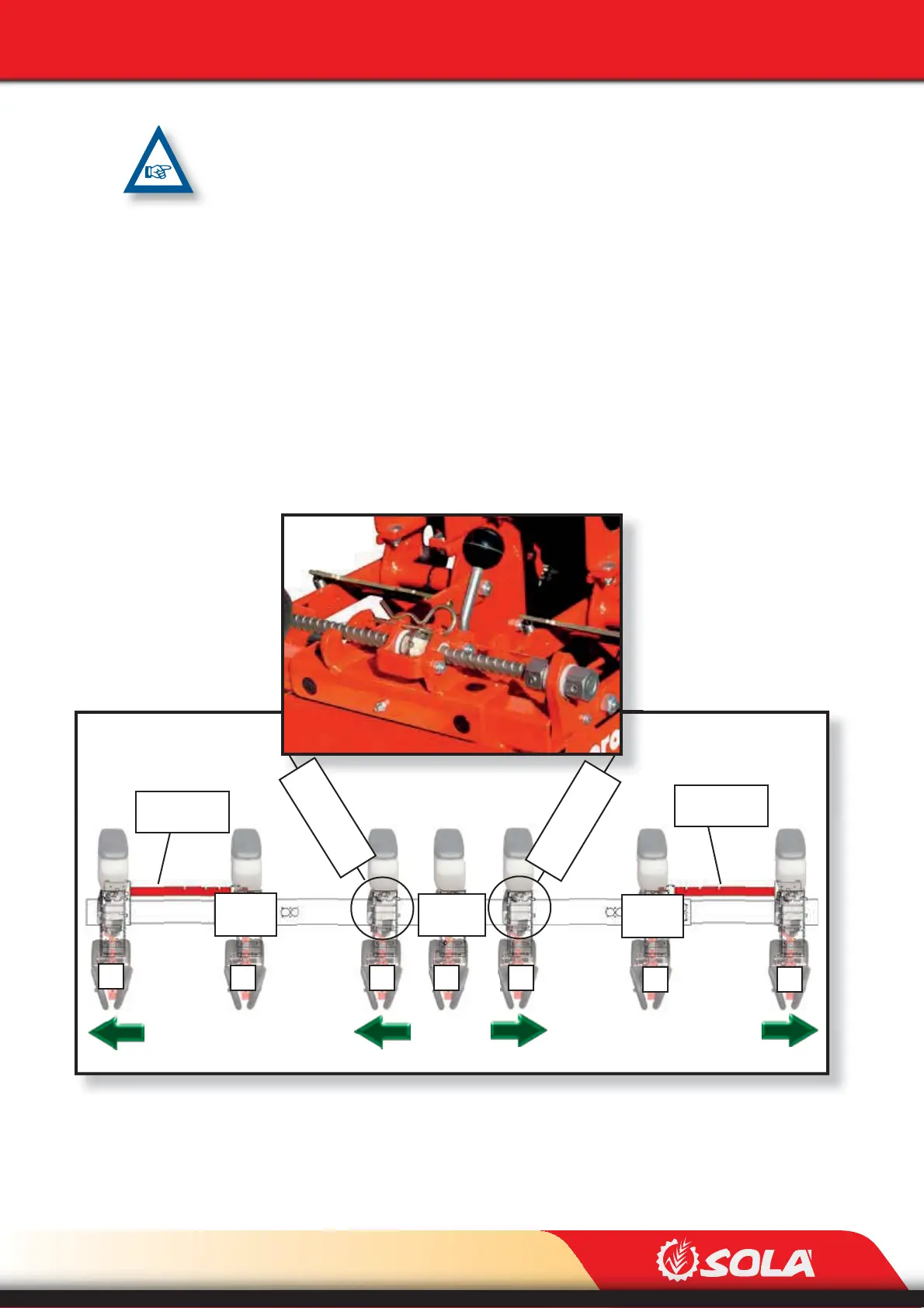

Fig. 6.36
Slotted bar of
the unit nº1
Slotted bar of
the unit nº7
Spindle of the
unit No. 3
Spindle of the
unit No. 5
1
2 3 4 5
6 7
FIXED
unit
FIXED
unit
FIXED
unit
