68
1
Fig. 6.64
A
B
Fig. 6.65
1
B
A
ADJUSTMENTS
EACH SELECTOR CORRESPONDS TO A METERING UNIT. THE SELECTOR NUMBER ONE CORRES-
PONDS TO THE FAR LEFT METERING UNIT (IN THE FORWARD DIRECTION). THE REMAINING SE-
LECTORS ARE CONSECUTIVE TO THE UNITS THAT ARE ASSEMBLED ON THE MACHINE.
NOT ALL THE SELECTORS WORK. ONLY THE SELECTORS PROVIDED WITH AN ELECTRIC ENGINE
IN THE UNIT’S TRANSMISSION ARE OPERATIVE. THE MAXIMUM NUMBER OF EXCLUSION SELEC-
TORS WHICH ARE OPERATIVE IS THE NUMBER OF METERING UNITS OF THE MACHINE.
TO CONNECT THE AUTOMATIC ROW EXCLUSION SYSTEM TO A GPS OR A PLANTING CONTRO-
LLER, IT IS NECESSARY AN EXTRA CABLE (CODE: EO-101708). THE ELECTRICAL CONNECTION DIA-
GRAM IS SUPPLIED WITH THE CABLE.

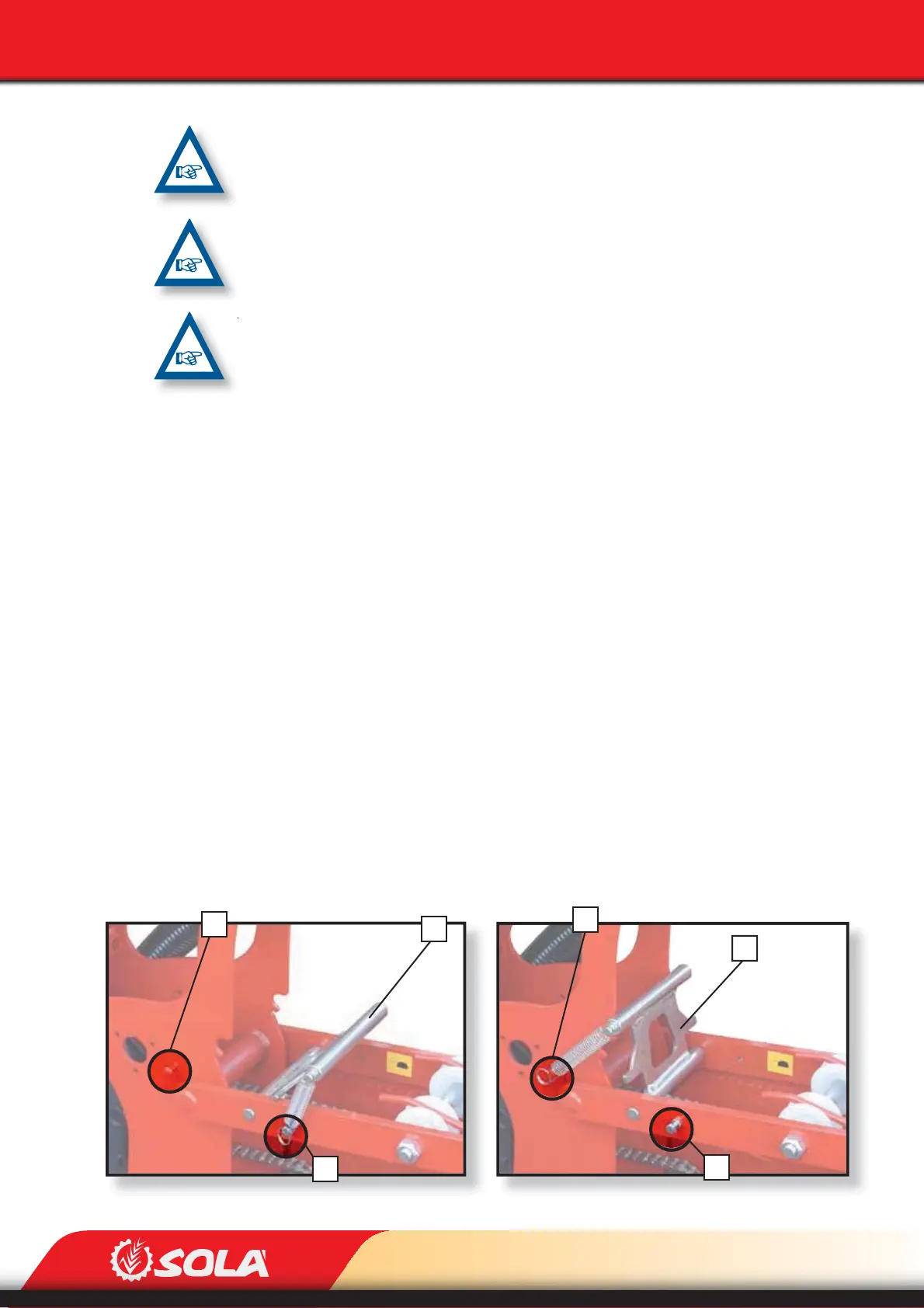

6.7.3 RAISING THE UNIT
To RAISE/EXCLUDE THE UNIT:
1- When the planter is in a raised position, couple the SPRING to position B. After perfor-
ming this operation, the lever (1) will move to the other end (Fig. 6.65).
2- Place a wooden block of about 20 cm high under the wheels. This is used for the depth
control of each unit to be excluded.
3- Lower the planter onto the ground so that the units TO BE EXCLUDED become locked.
To LOWER/INCLUDE THE UNIT:
1- When the planter is in raised position, couple the SPRING to the position A.
2- Place a wood block of about 20 cm high under the wheels. This is used for the depth
control of each unit to be included.
3- Lower the planter onto the ground in order to INCLUDE the unit (Fig. 6.64).
