Sola PROSEM K BASIC Series - Variant V300;6 4 F95 6 F50-75

55
A
B
Fig. 6.40
ADJUSTMENTS
Fig. 6.41
Pos. 95 Pos. 95 Pos. 95 Pos. 95 Pos. 95
1 2 3 4 5 6

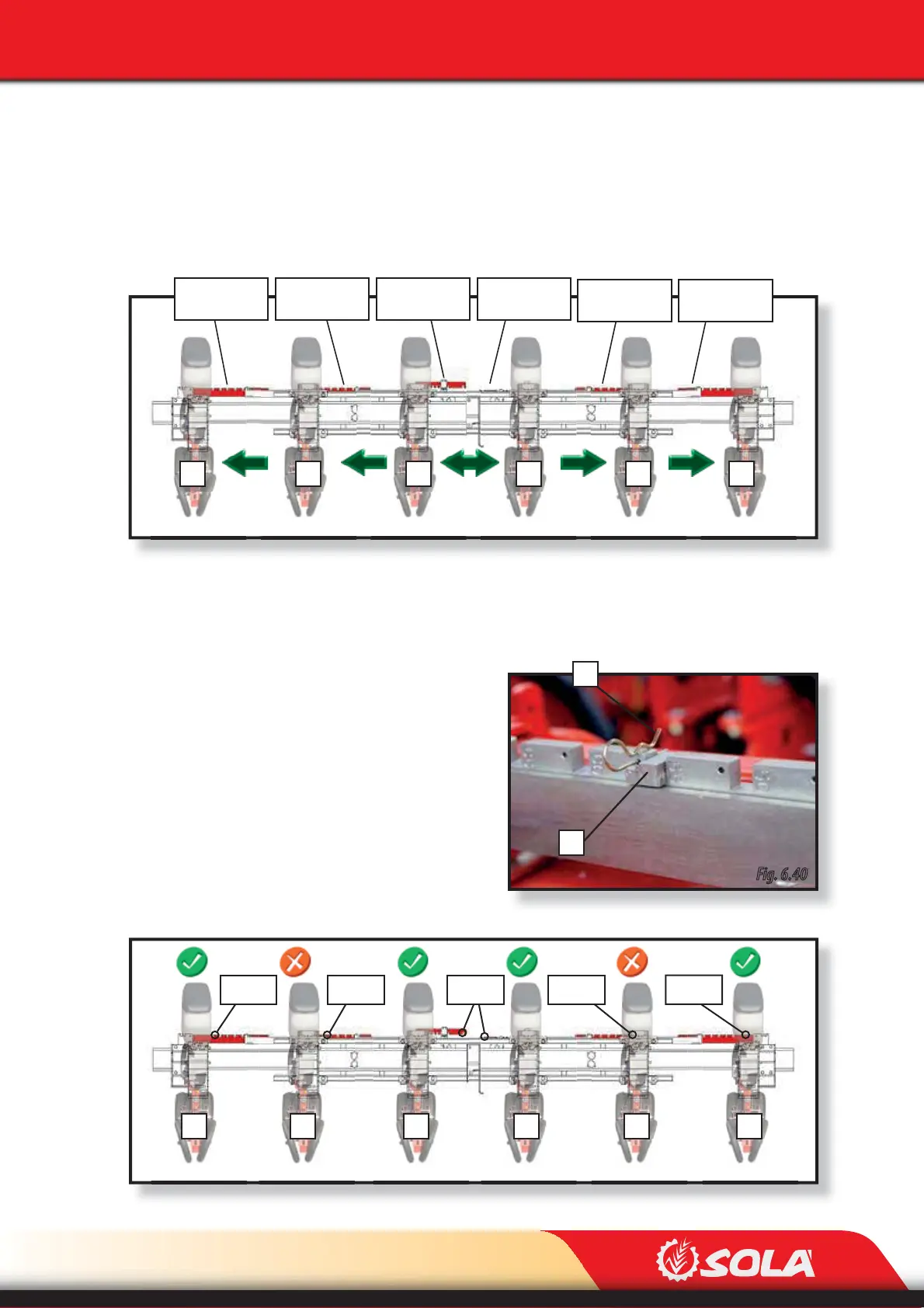

6.5.4.2 VARIANT V300/6 4F95 6F5075
This model allows to adjust the spacing of:
- 6 ROWS at 50, 55, 60, 65, 70 and 75 cm
- 4 ROWS at 95 cm.
To adjust the machine at 6 ROWS at 50, 55, 60, 65, 70 and 75 cm, see previous section 6.5.4.1.
To adjust the machine at 4 ROWS at 95 cm:
1- Exclude the units No. 2 and 5 (Fig.
6.41), see section 6.7 EXCLUDING A
METERING UNIT.
2- Remove the pins (B, Fig. 6.40) and
the aperture stops (A, Fig. 6.40).
3- Place the aperture stops of the units
at the position of 95 cm and x
them using the pins.
4- Open the machine using the hy-
draulic system: the row spacing will
be the selected one.
Fig. 6.39
Slotted bar of
the unit nº1
Slotted bar of
the unit nº2
Slotted bar of
the unit nº3
Slotted bar of
the unit nº4
Slotted bar of
the unit nº5
Slotted bar of
the unit nº6
1 2 3 4 5 6
