Sola PROSEM K BASIC Series - Variant Idra Machine; Idra300;8 40-75 and Idra330;8 45-80

61

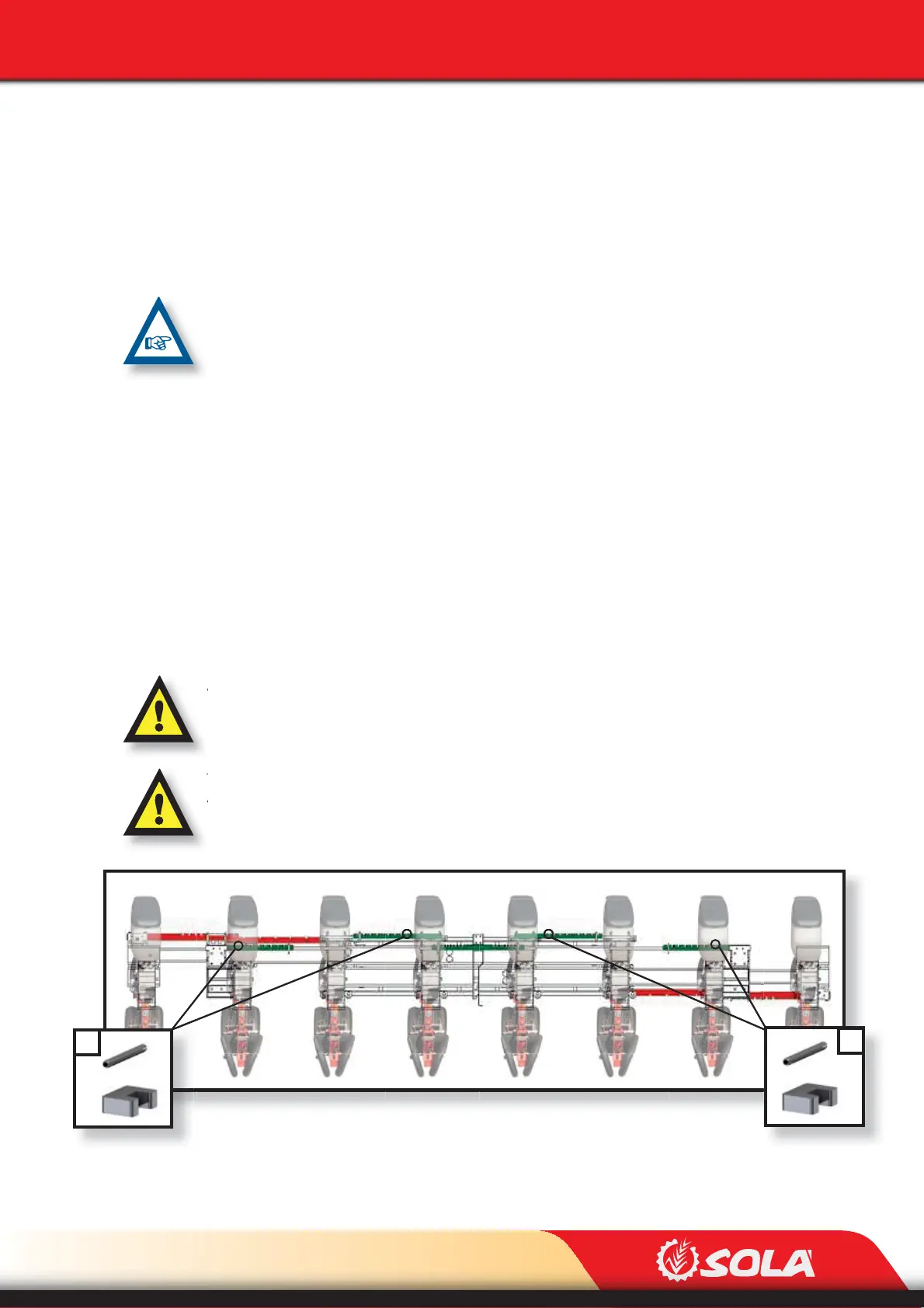

Fig. 6.52
Fig
.
6
.
52
A
A
ADJUSTMENTS
6.5.5 VARIANT IDRA MACHINE
Models VARIANT IDRA allow to adjust the spacing between every single metering unit by per-
forming a quick and easy operation on the bars.
Next subsections specify the possible adjustments to perform depending on the type of frame
VARIANT IDRA assembled on the machine.
MARKS ON THE BARS DEFINE THE CORRESPONDING DISTANCE (cm) BETWEEN CONSECUTIVE
UNITS.
6.5.5.1 IDRA300/8 40-75 AND IDRA330/8 45-80
This model allows to adjust the spacing between:
- 8 ROWS at 40, 45, 50, 55, 60, 65, 70 and 75 cm (in frame model IDRA300/8 40-75).
- 8 ROWS at 45, 50, 55, 60, 65, 70, 75 and 80 cm (in frame model IDRA 330/8 45-80).
ADJUST THE DISTANCE BETWEEN METERING UNITS ONLY WHEN THE MACHINE IS COMPLETELY
CLOSED, OTHERWISE THE MACHINE COULD BE DAMAGED.
T
HIS FRAME MODEL HAS SOME FIXED STOPS ASSEMBLED (A, FIG. 6.52). THEY HAVE TO BE PLACED
ALWAYS IN THE BARS’ NOT-MARKED SLOTS (GREEN slotted bars FIG. 6.52). THEY MUST NEVER BE
REMOVED UNDER ANY CIRCUMSTANCES, OTHERWISE THE MACHINE COULD BE DAMAGED.
A
T
A
