Sola PROSEM K BASIC Series - Turbo Disc Opener (Optional)

82
Fig. 6.102
1
2
3
Fig. 6.101
Fig. 6.100
E
D
C
B
A
ADJUSTMENTS

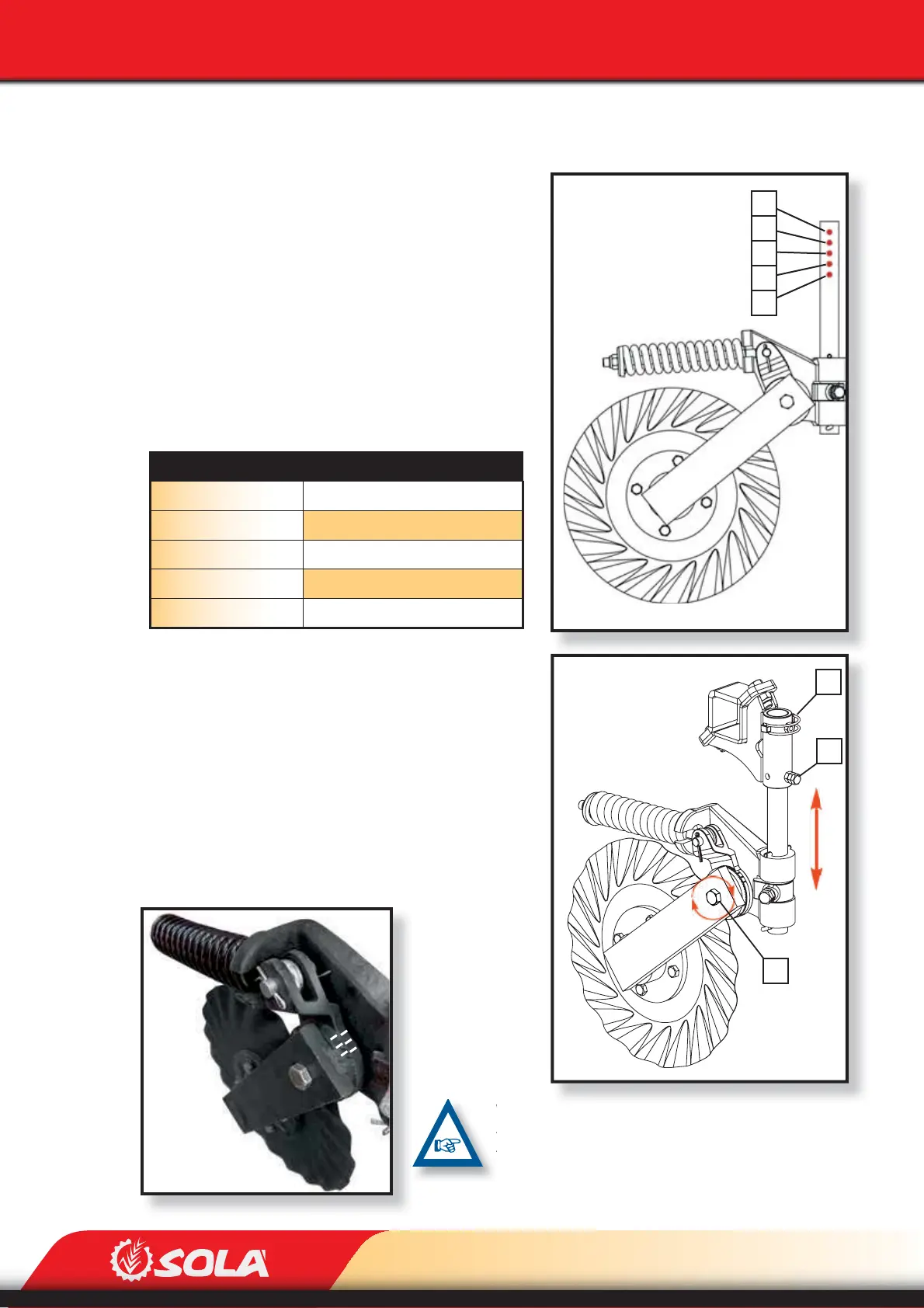

6.14 TURBO DISC OPENER (OPTIONAL)
Working depth of the turbo disc opener depends on
two conditions:
ROD’S HEIGHT
To adjust rod’s height:
1- Remove the pin (1, Fig. 6.101)
2- Loosen the screw (2, Fig. 6.101)
3- Shift the rod to the desired position.
4- Place the pin (1, Fig. 6.101) in the desired
hole (Fig. 6.100 to x the position.
5- Finally, lock the rod using the screw and the
lock nut (2, Fig. 6.101).
POSITION OF THE CONNECTING ROD
For a more precise adjustment of the fertilizer’s
height, the connecting rod’s angle (Fig. 6.103)
needs to be adjusted:
1- Loosen the discs’ xing screw (3, Fig. 6.101)
2- Turn the discs until reach the desired angle
of the connecting rod.
3- Tighten the xing screw (3, Fig. 6.101).
WHEN ADJUSTING THE CONNECTING ROD’S ANGLE,
ADJUST THE COG’S TOOTH SPACE SO THAT THEY STAY
AS ALIGNED AS POSSIBLE (Fig. 6.102). IF MORE PRESSU-
RE ONTO THE TERRAIN IS DESIRED, PLACE THE CON-
NECTING ROD IN A MORE VERTICAL POSITION.
W
A
A
ROD’S POSITION ROD’S DEPTH (cm)
A
0
B
2
C
4
D
6
E
8
