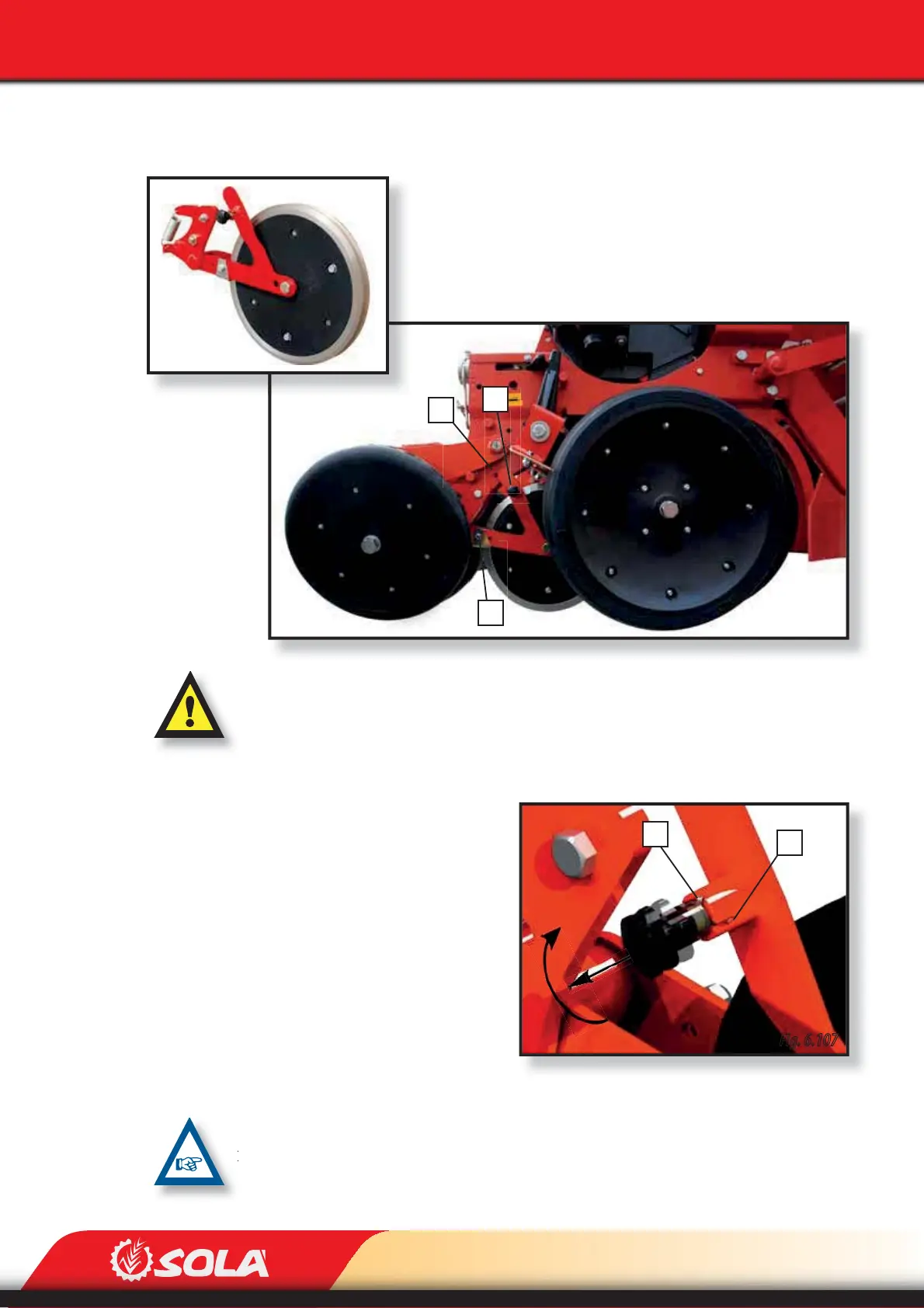

6.15 SEED PRESSING WHEEL PROSEM K (OPTIONAL)
Seed pressing wheels are placed between the wheels that control
the working depth and the press wheels (Fig. 6.106).
These wheels coincide with the seedbed where the seed is placed.
Their function is to specify the depth at which the seed will be placed
and compact the covering earth.
IMPORTANT: MAKE SURE THAT THE KNOB (1, FIG. 106) IS AT POSITION B BEFORE STARTING TO
PLANT. OTHERWISE THE SEED PRESSING WHEEL WILL NOT WORK PROPERLY AND THIS COULD
DAMAGE THE PLANTER.
This component can be excluded following these steps:
1- Raise the seed pressing wheel
using one hand.
2- Use the other hand to pull the
securing knob (1, Fig. 6.106) and
place it at the exclusion point (3,
Fig. 6.106). To x this position,
turn the securing knob to place
the pin at position A (Fig. 6.107).
To unlock the seed pressing wheel from
the exclusion position, pull the security
knob (1, Fig. 6.106) and turn the pin until
it reaches the position B (Fig. 6.107).
SEED PRESSING WHEEL’S SCRAPERS CAN BE ADJUSTED USING THE SCREWS (2, FIG. 6.106). AD-
JUST THE SCRAPERS AT 3-4 MM AWAY FROM THE WHEEL (MAKE SURE THE SCRAPER DOES NOT
TOUCH THE WHEEL UNDER ANY CONDITION).
