Sola PROSEM K BASIC Series - Insectiside Microgranulator and Helicide Microgranulator (Optional)

101
123

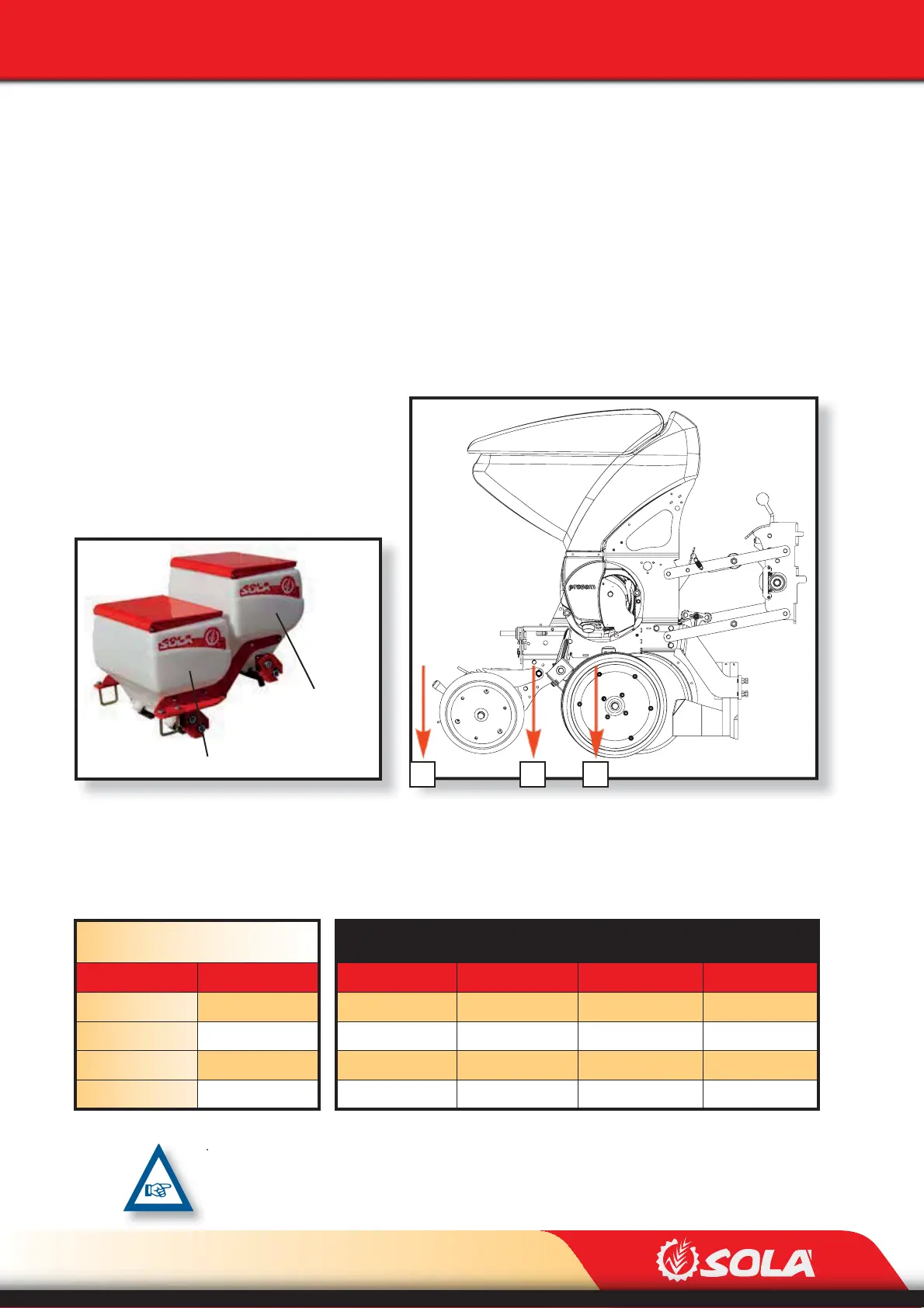

Fig. 6.140
ADJUSTMENTS
6.21 INSECTICIDE MICRO GRANULATOR AND HELICIDE MICRO GRANULA-
TOR (OPTIONAL)
In order to adjust the distribution of the insecticide micro granulator and the helicide micro
granulator, it is necessary to know the row spacing, the quantity of product to be distributed per
hectare and its specic weight.
It should be taken into account that there is a wide variety of products, each one with its particu-
lar density and granulometry. Therefore, precise adjustments are dicult to achieve.
MICRO GRANULATED INSECTICIDE is placed along with the seeds (1, Fig. 6.140).
MICRO GRANULATED HELICIDE can be placed in two ways, as required:
- SEMI-SUPERFICIAL
(2, Fig. 6.140).
- SUPERFICIAL
(3, Fig. 6.140).
The INSECTICIDE MICRO
GRANULATOR is equipped with a DOUBLE COG, and the HELICIEDE MICRO GRANULATOR is equi-
pped with TWO DOUBLE COG WHEELS (both equipments have one transmission in common). The-
se cogs allow to change the distribution so to provide a much wider range of possible dosages. The
next table shows all possible combinations for the transmission:
TO CHANGE THE TRANSMISSIONS, SEE SECTIONS 6.21.1 CHANGING THE TRANSMISSION OF THE
INSECTICIDE MICRO GRANULATOR WITH DOUBLE HOPPER AND 6.21.2 CHANGING THE TRANS-
MISSION OF THE HELICIDE MICRO GRANULATOR WITH DOUBLE HOPPER.
T
INSECTICIDE MICRO GRANULATOR’S
TRANSMISSION
HELICIDE MICRO GRANULATOR’S TRANSMISSION
Pinion P.E.1 Pinion P.S.1 Pinion P.E.1 Pinion P.S.1 Pinion P.E.2 Pinion P.S.2
12 22 12 22 12 30
12 22 12 22 22 22
22 12 22 12 12 30
22 12 22 12 22 22
HELICIDE
MICRO GRANULATOR
INSECTISIDE
MICRO GRANULATOR
Fig. 6.139
