107
Fig. 6.152
1
2
Fig. 6.151
1
2
Fig. 6.149
Fig. 6.150
ADJUSTMENTS

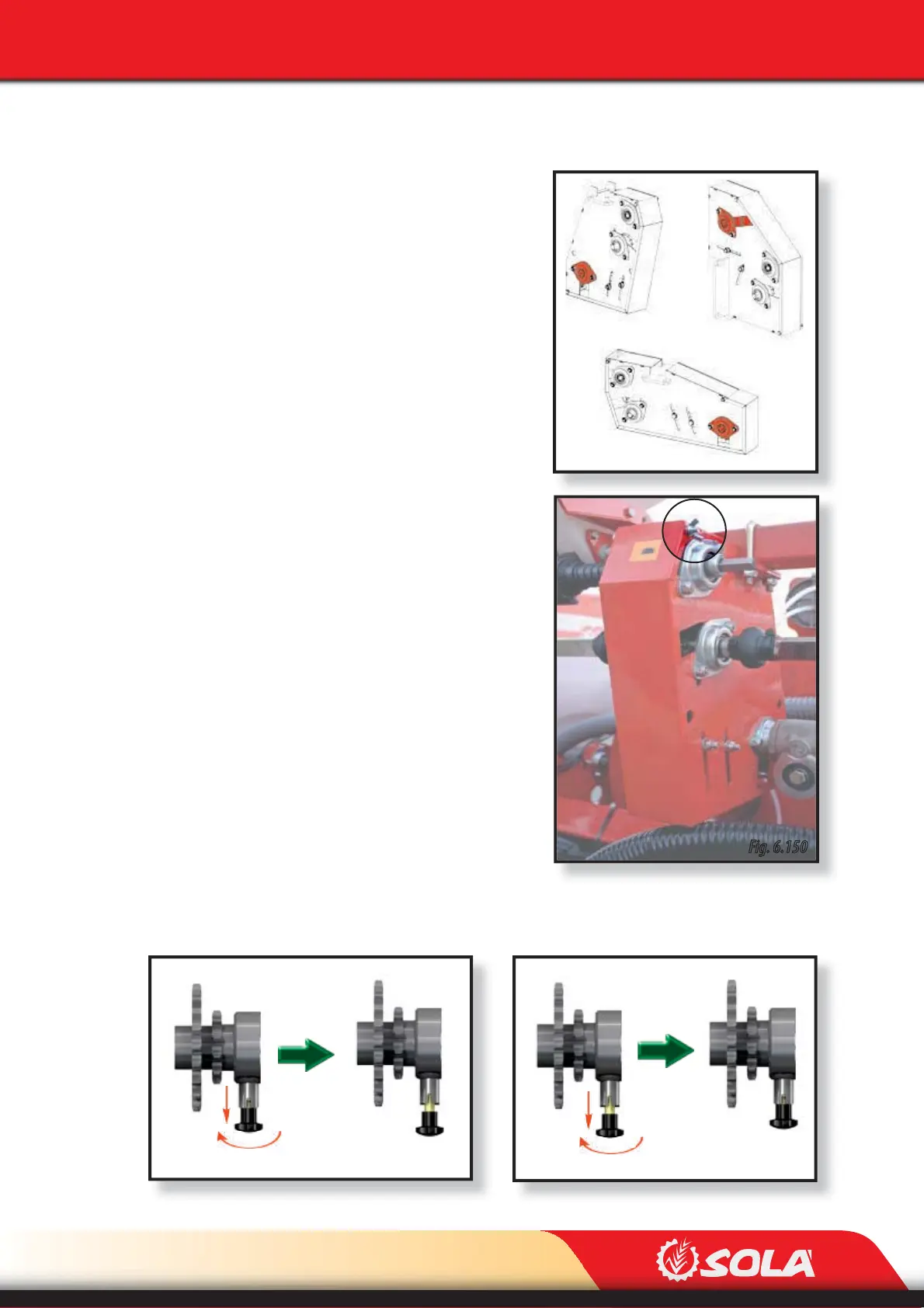

6.21.3 E
XCLUDING THE INSECTICIDE AND HELICIDE MICRO GRANULATORS
To disconnect the transmission of the micro gra-
nulator hoppers, it is necessary to operate on the
transmission’s box of the micro granulator hoppers
(see section 3.1 PLANTER OVERVIEW). There are
three types of gearbox, all of them have the clutch
on one of the axles (shown in red, Fig. 6.149).
Disconnect the transmission when fertilizing the
eld is not required.
To exclude the transmission, follow these steps:
1- Remove the wing nut and the upper screw
of the drive’s lid (Fig. 6.150).
2- Turn the lid downwards.
3- In the transmission axle where the clutch is
(Fig. 6.149), pull the securing knob and turn
it 90o to lock it at the free transmission po-
sition (Fig. 6.151).
4- Close the lid and x it using the screw and
the wing nut.
To reconnect the transmission:
1- Remove the wing nut and the upper screw
of the drive’s lid (Fig. 6.150).
2- Turn the lid downwards.
3- In the transmission axle where the clutch is
(Fig. 6.149), pull the securing knob and turn
it 90o to lock it at the transmission position
(Fig. 6.152).
4- Close the lid and x it using the screw and the wing nut.
