OVERVIEW
3.7.1 FIXED
The metering units are attached to the frame using brac-
kets.
Spacing between rows has not a quick adjustment since
the units are xed to the frame. To modify the spacing
between units, see section 6.5.1 FIXED MACHINE (Fig.
3.15)
3.7.2 VARIANT MANUAL FIXED
This frame allows to modify the spacing between mete-
ring units. To adjust the distance between rows see sec-
tion 6.5.2 VARIANT MANUAL FIXED MACHINE. (Fig. 3.16).
3.7.3 TELESCOPIC
This model allows you to modify the spacing between
the units which are at the ends of the frame. Central units
are xed by brackets. Possible adjustments can be found
in section 6.5.3 TELESCOPIC MACHINE
There are two versions of this model:
- Simple telescopic (Fig. 3.17)
- Double telescopic (Fig. 3.18)
- Simple telescopic hybrid (Fig. 3.19)

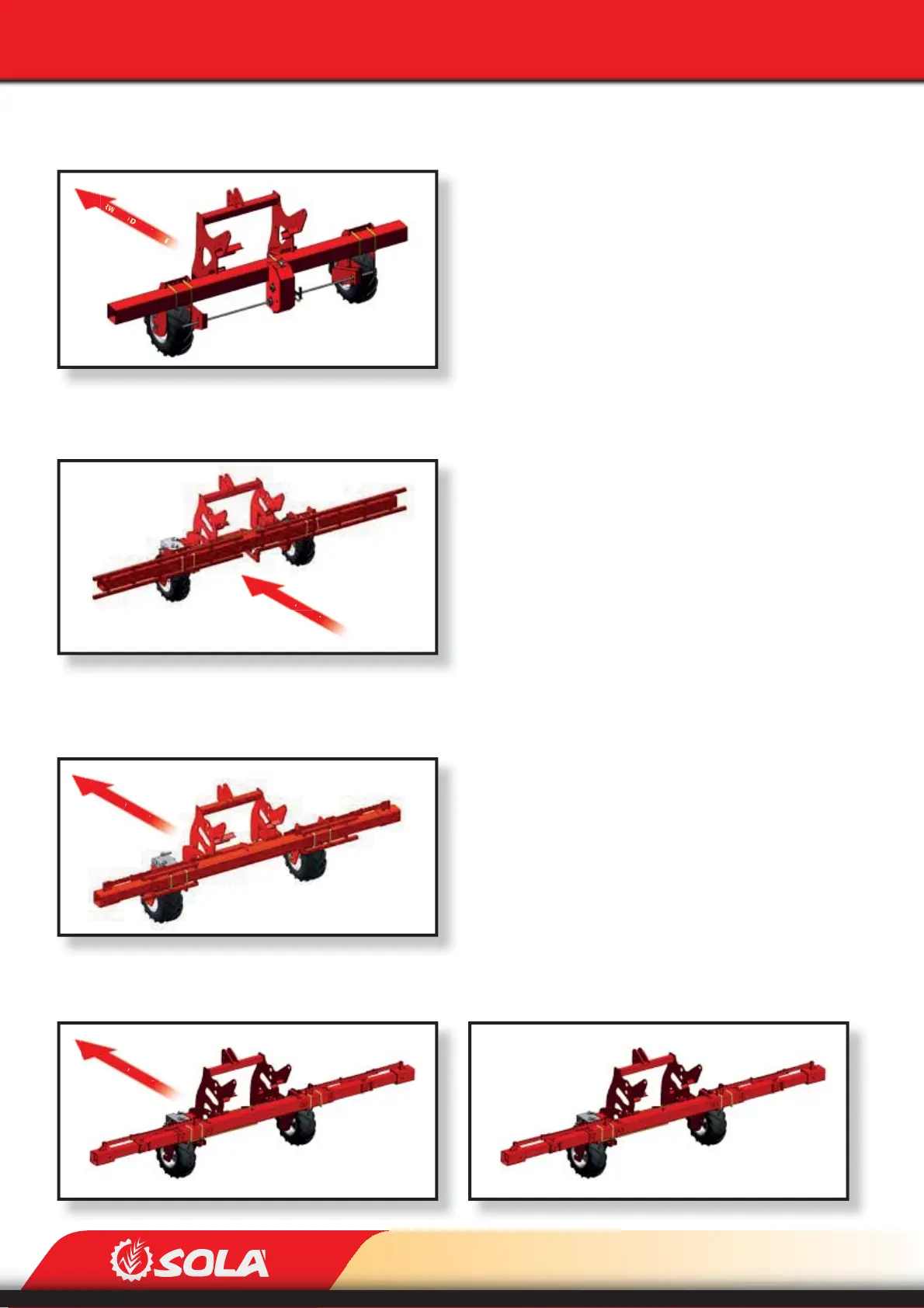

Fig. 3.16
