Sola PROSEM K BASIC Series - Adjusting Track Discs Orientation

88
B
Fig. 6.118
ADJUSTMENTS

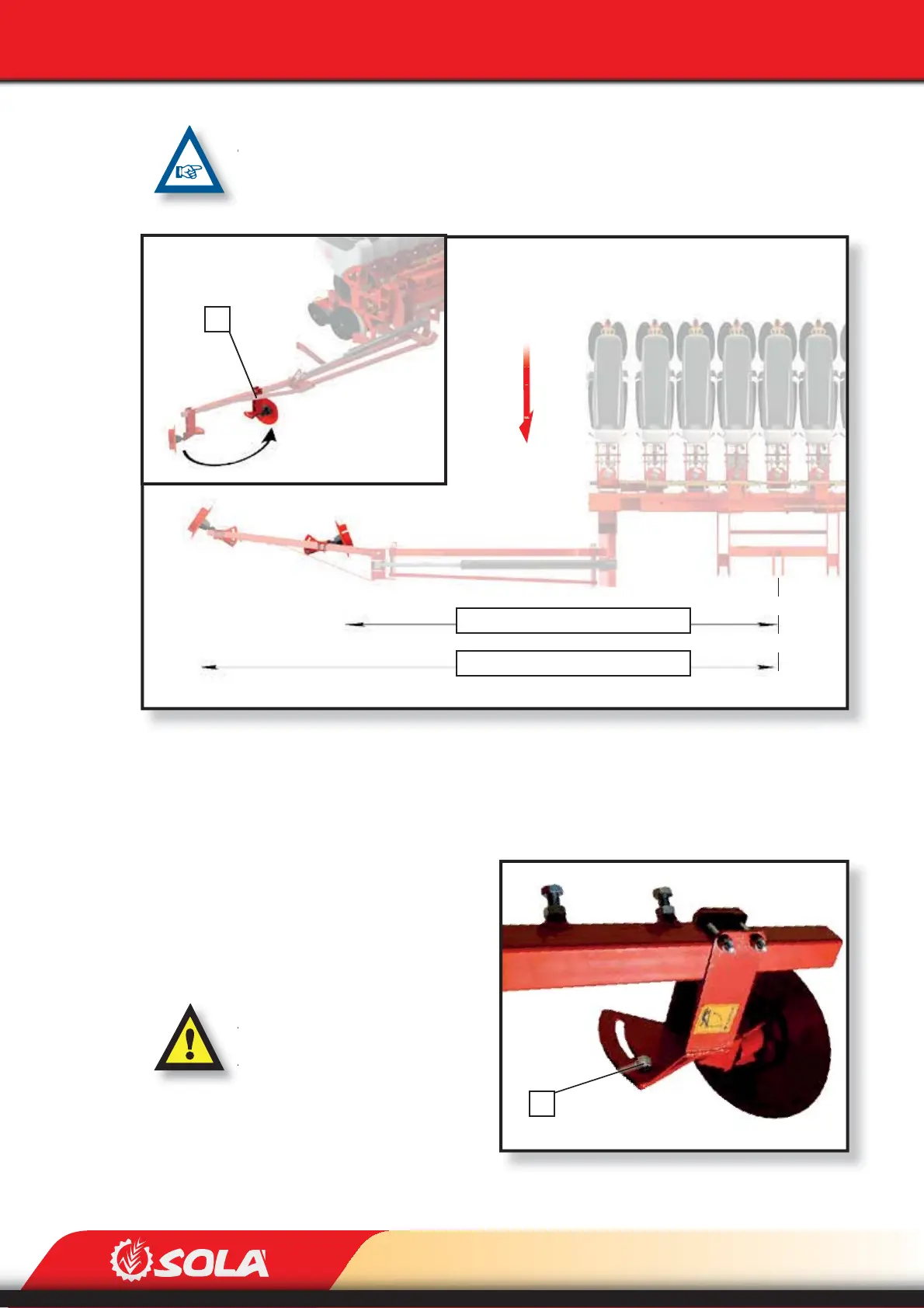

SOME PLANTERS ARE EQUIPPED WITH TRACK MARKERS WITH TWO SECTORS TO MARK THE
TRACTOR’S CENTRE. TO ADJUST THEM AT TRACK DISTANCES SHORTER THAN 2,25 METRES,
IT IS RECOMMENDED TO ASSEMBLE THE TRACK MARKER FROM OUTSIDE IN. (P, FIG. 6.117BIS).
6.17.2 ADJUSTING TRACK DISC’S ORIENTATION
Adjust the track disc’s orientation by
loosening the securing nut (B, Fig.
6.118) so that the track disc has the
desirable impact on the ground. Ti-
ghten the nut after performing this
operation.
