ADJUSTMENTS
6.5.4 VARIANT MACHINE
VARIANT machines allow to adjust the spacing between every unit by means of a simple and
quick operation on the bars. In the next subsections, the possible adjustments will be specied
depending on the VARIANT type of frame equipped in the machine.
MARKS ON THE BARS DEFINE THE CORRESPONDING DISTANCE (cm) BETWEEN CONSECUTIVE
UNITS.
6.5.4.1 VARIANT V300/6 4575 AND V300/6 5080
This model allows to adjust the spacing of:
- 6 ROWS at 45, 50, 55, 60, 65, 70 and 75 cm (frame V300/6 45-75).
- 6 ROWS at 50, 55, 60, 65, 70, 75 and 80 cm (frame V300/6 50-80).
ADJUST THE DISTANCE BETWEEN METERING UNITS ONLY WHEN THE MACHINE IS COMPLETELY
CLOSED, OTHERWISE THE MACHINE COULD BE DAMAGED.

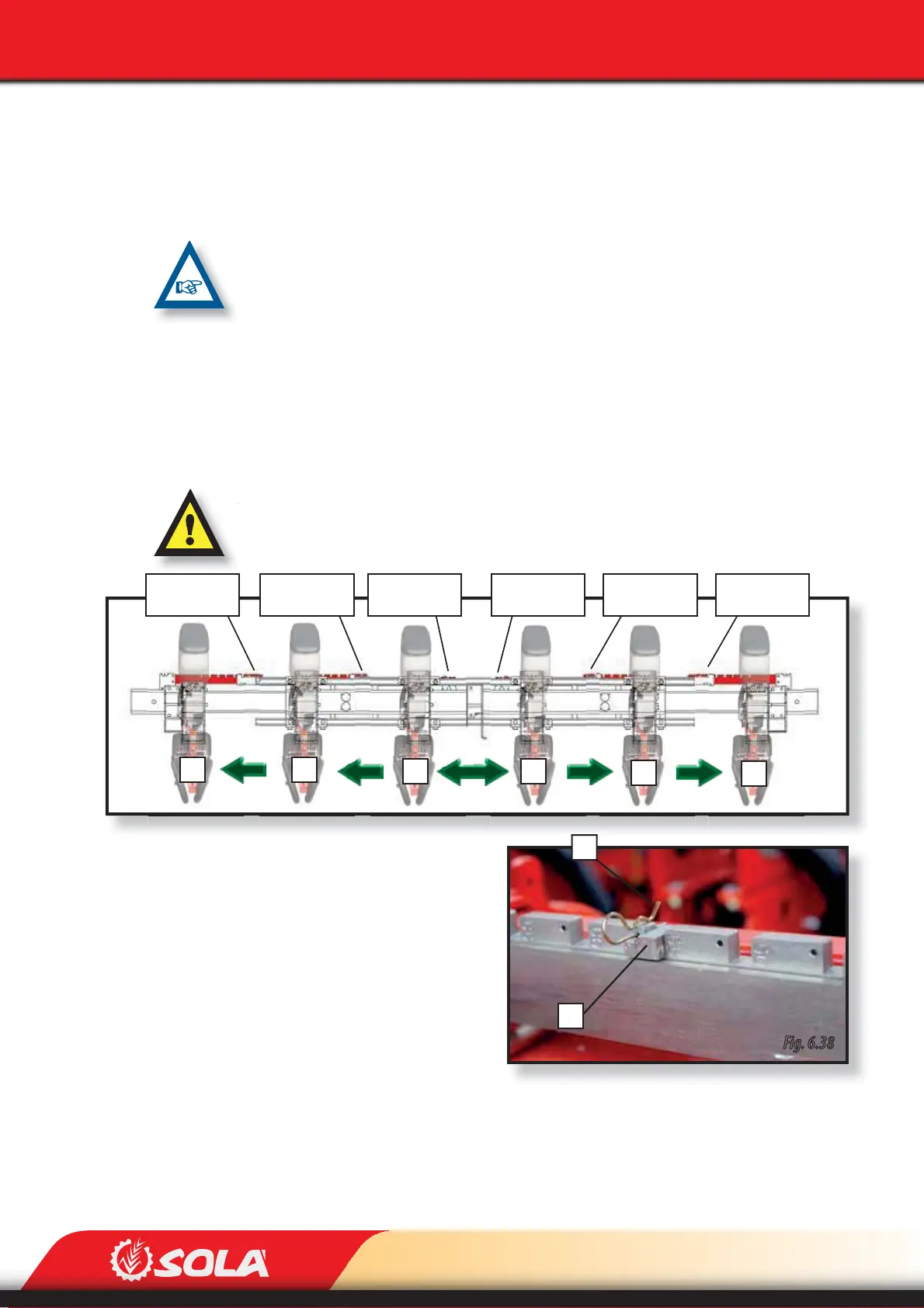

To adjust the spacing between units,
operate the aperture stops of the bars
(A, Fig. 6.38) as indicated below:
1- Remove the pin (B, Fig. 6.38)
2- Next, remove the aperture
stop of the bar’s slot (A, Fig.
6.38).
3- Place the aperture stop at the
desired distance.
4- Place the pin in the hole to lock
the stop.
5- Repeat these steps for each
bar.
6- Open the machine using the hydraulic system: the row spacing will be the selected one.
A
Fig. 6.37
Slotted bar of
the unit nº1
Slotted bar of
the unit nº2
Slotted bar of
the unit nº3
Slotted bar of
the unit nº4
Slotted bar of
the unit nº5
Slotted bar of
the unit nº6
1
2
3 4
5
6
