Sola PROSEM K BASIC Series - Variant V300;7-S 50-80

60
A
B

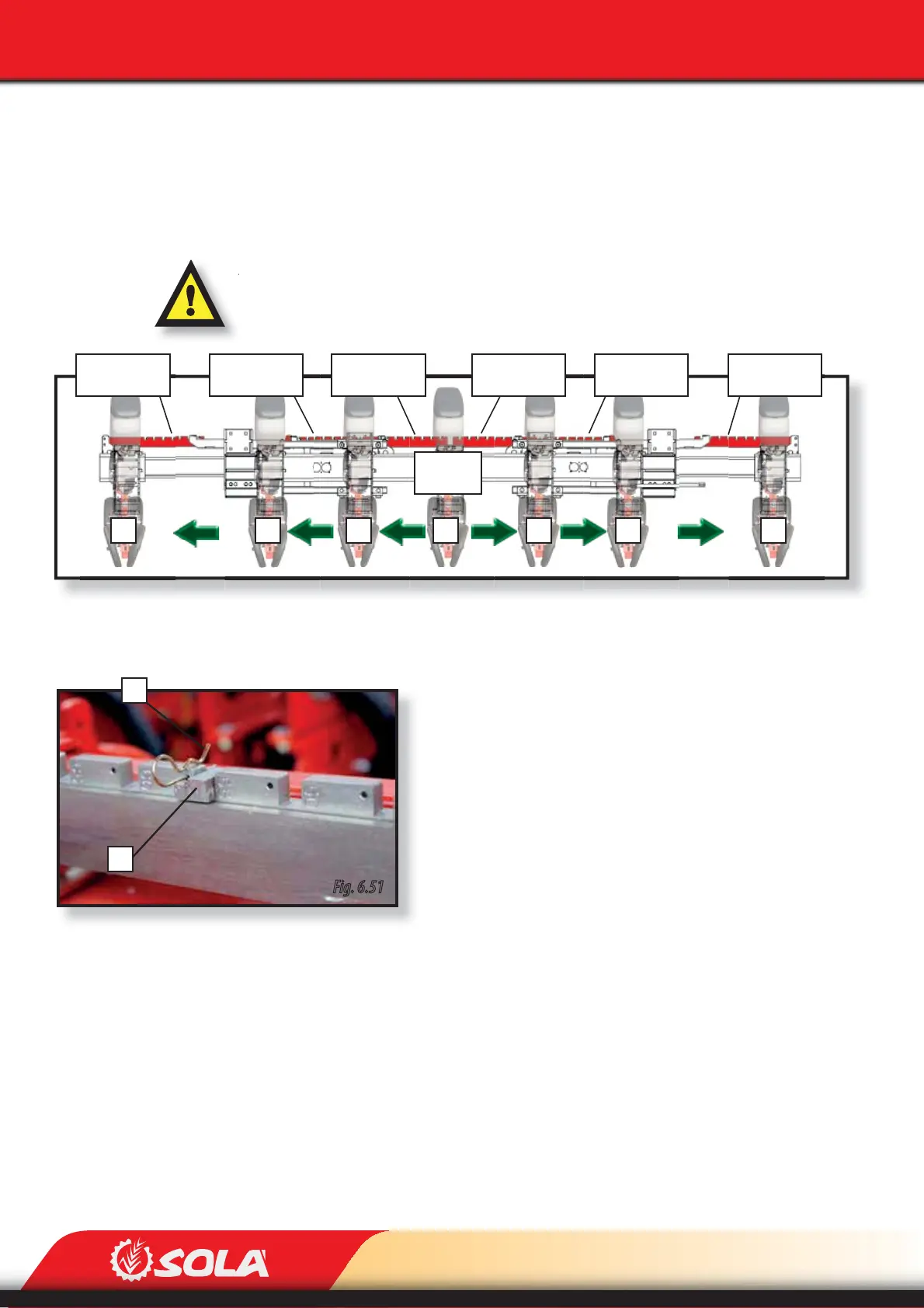

Fig. 6.51
ADJUSTMENTS
6.5.4.5 VARIANT V300/7-S 50-80
This model allows to adjust the spacing of:
- 7 ROWS at 50, 55, 60, 65, 70, 75 and 80 cm
ADJUST THE DISTANCE BETWEEN METERING UNITS ONLY WHEN THE MACHINE IS COMPLETELY
CLOSED, OTHERWISE THE MACHINE COULD BE DAMAGED.
To adjust the row spacing, operate the bars’ aperture stops (A, Fig.
6.51) as indicated below:
1- Remove the metering unit’s pins (B, Fig. 6.51) and the apertu-
re stops (A, Fig. 6.51).
2- Place the aperture stops of the units at the desired position
(45, 50, 55 or 60) using the pins.
3- Open the machine using the hydraulic system: the row spa-
cing will be the selected one.
A
Fig. 6.50
Slotted bar of
the unit nº1
FIXED
unit
Slotted bar of
the unit nº5
1 2 3 4 5 6 7
Slotted bar of
the unit nº2
Slotted bar of
the unit nº3
Slotted bar of
the unit nº6
Slotted bar of
the unit nº7
