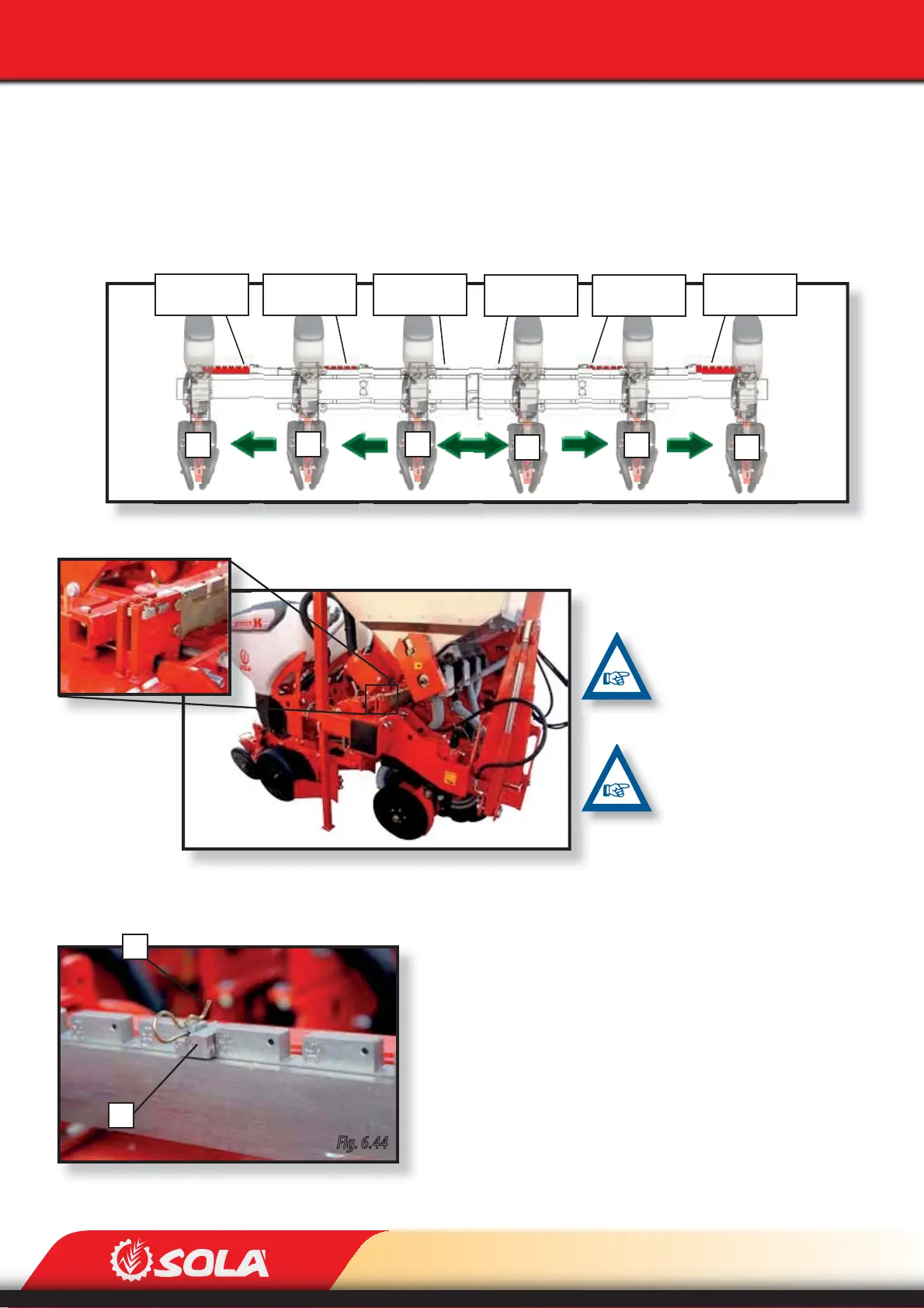

Fig. 6.44
Fig. 6.43
ADJUSTMENTS
6.5.4.3 VARIANT V300/6 4F95 6F70-80
This model allows to adjust the spacing of:
- 6 ROWS at 70, 75 and 80 cm
- 4 ROWS at 95 cm.
To adjust the machine at 6 ROWS at 70, 75 or 80, the required parts are:
- 6 APERTURE STOPS
- 4 SPECIAL 6 ROWS STOPS
THE 6 ROW STOPS CAN BE
STORED AT THE FRAME’S
ENDS, IN THEIR STORAGE
PLACE AT THE FRAME’S
ENDS (FIG. 6.43).
I N CASE THE APERTURE STOPS
ARE ASSEMBLED IN THE SLOT-
TED BARS, THE ADJUSTMENT
SHOULD BE PERFORMED FROM
STEP 7 OF THIS SECTION ON.
To adjust the 6 row spacing:
1- Remove the pins (B, Fig. 6.44) of the units. Also remove the
aperture stops (A, Fig. 6.44).
2- Place the aperture stops of the following units as indicated
below:
- No. 1, 2, 5 and 6 at the 70 position.
- No. 3 and 4 at the 4F95 position (marked on the bar).
3- Place the pins in the holes to lock the stops.
4- Open the machine using the hydraulic system.
5- Take the four special stops of 6 rows placed at the frame’s
ends and place them at position 45 for the units No. 1, 2, 5
and 6 (the machine should be open to do this).
Fig. 6.42
Slotted bar of
the unit nº1
Slotted bar of
the unit nº2
Slotted bar of
the unit nº3
Slotted bar of
the unit nº4
Slotted bar of
the unit nº5
Slotted bar of
the unit nº6
1
2
3
4
5
6
