ADJUSTMENTS

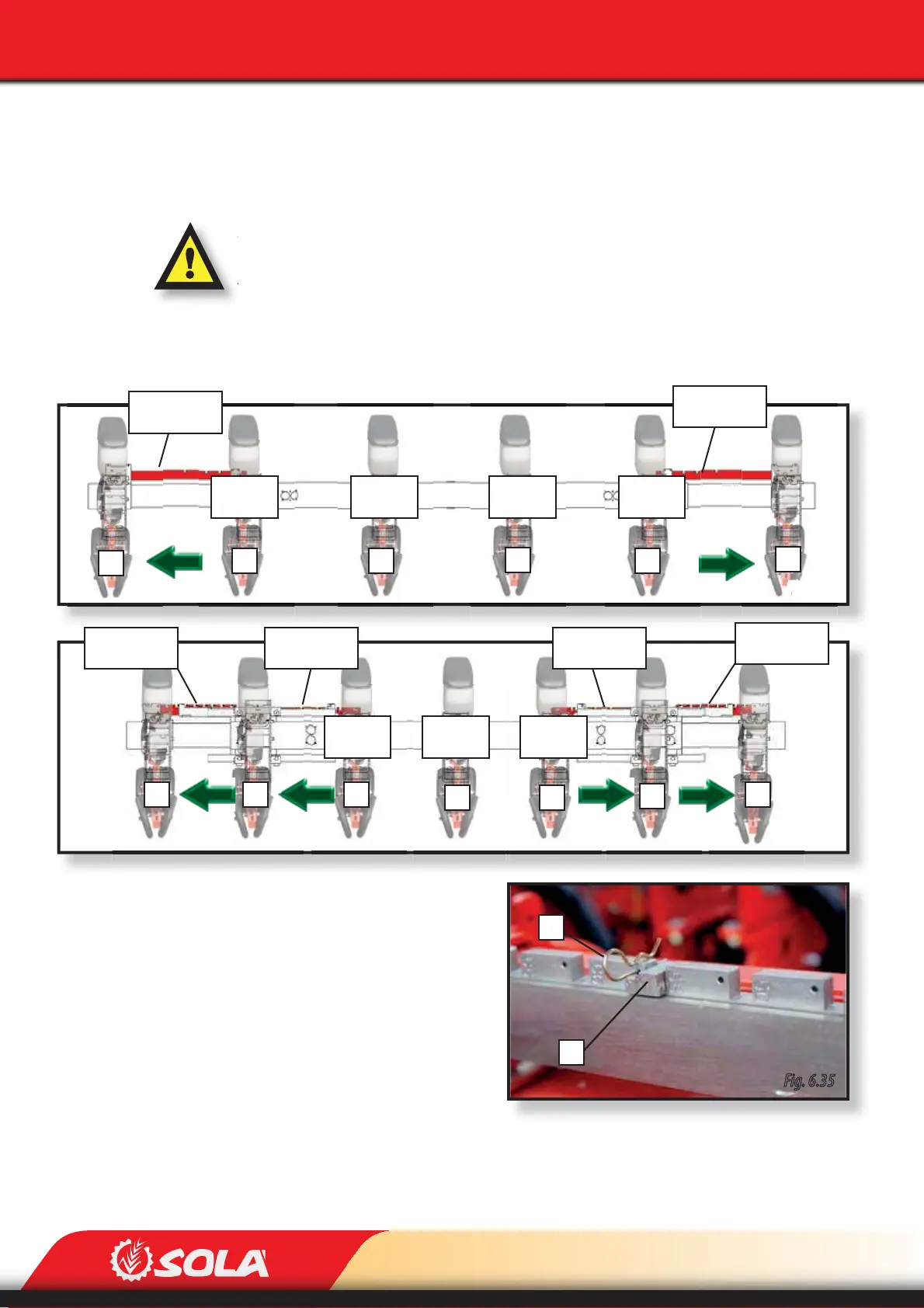

6.5.3 Telescopic machine
Telescopic machines allow only some distances between metering units.
ADJUST THE DISTANCE BETWEEN METERING UNITS ONLY WHEN THE MACHINE IS COMPLETELY
CLOSED, OTHERWISE THE MACHINE COULD BE DAMAGED.
Telescopic machines have central metering units xed to the frame. The lateral metering units
are movable. Depending on the frame’s model, the following adjustments are possible:
- 2 units, one at each frame’s end, in machines with SIMPLE TELESCOPIC FRAME (Fig. 6.33).
- 4 units, two at each frame’s end, in machines with DOUBLE TELESCOPIC FRAME (Fig. 6.34).
To adjust the spacing of the most exte-
rior rows, operate the aperture stops of
the slotted bars (A, Fig. 6.35) as indica-
ted below:
1- Remove the pin (B, Fig. 6.35)
2- Next, remove the aperture
stop of the bar’s slot.
3- Place the aperture stop at the
desired distance.
4- Place the pin in the hole to lock
the stop.
5- Open the machine hydrauli-
cally. It will open the metering
units at the desired spacing.
A
T
Fig. 6.33
Slotted bar of
the unit nº1
Slotted bar of
the unit nº6
1
2 3
4
5
6
FIXED
unit
FIXED
unit
FIXED
unit
FIXED
unit
Fig. 6.34
Slotted bar of
the unit nº1
Slotted bar of
the unit nº2
Slotted bar of
the unit nº6
Slotted bar of
the unit nº7
1 2 3
4 5
6
7
FIXED
unit
FIXED
unit
FIXED
unit
