Sola PROSEM K BASIC Series - Changing the Transmission of the Helicide Microgranulator with Double Hopper

106
1
1
Fig. 6.145
2
Fig. 6.147
Fig. 6.146
Fig. 6.148
P.E. 2= Z22
P. S. 2= Z22
P.E. 2= Z12
P. S. 2= Z 30
ADJUSTMENTS
6.21.2 CHANGING THE TRANSMISSION OF THE HELICIDE MICRO GRA-
NULATOR WITH DOUBLE HOPPER
The HELICIDE micro granulator is provided with TWO DOUBLE COGS. The dose to be spread by
the dosing devices can be adjusted by means of:
- T
he TRANSMISSION OF THE INSECTICIDE MICRO GRANULATOR (cogs P. E .1 and P. S .1).
- The TRANSMISSION OF THE HELICIDE MICRO GRANULATOR (cogs P. E . 2 y P. S . 2).
To change the TRANSMISSION RATIO OF THE INSECTICI-
DE MICRO GRANULATOR (cogs P.E.1 and P.S.1), see 6.21.1
CHANGING THE TRANSMISSION OF THE INSECTICI-
DE MICRO GRANULATOR WITH DOUBLE HOPPER.
To change the TRANSMISSION RATIO OF THE HELICI-
DE MICRO GRANULATOR (cogs P.E.2 and P.S.2), follow
these steps:

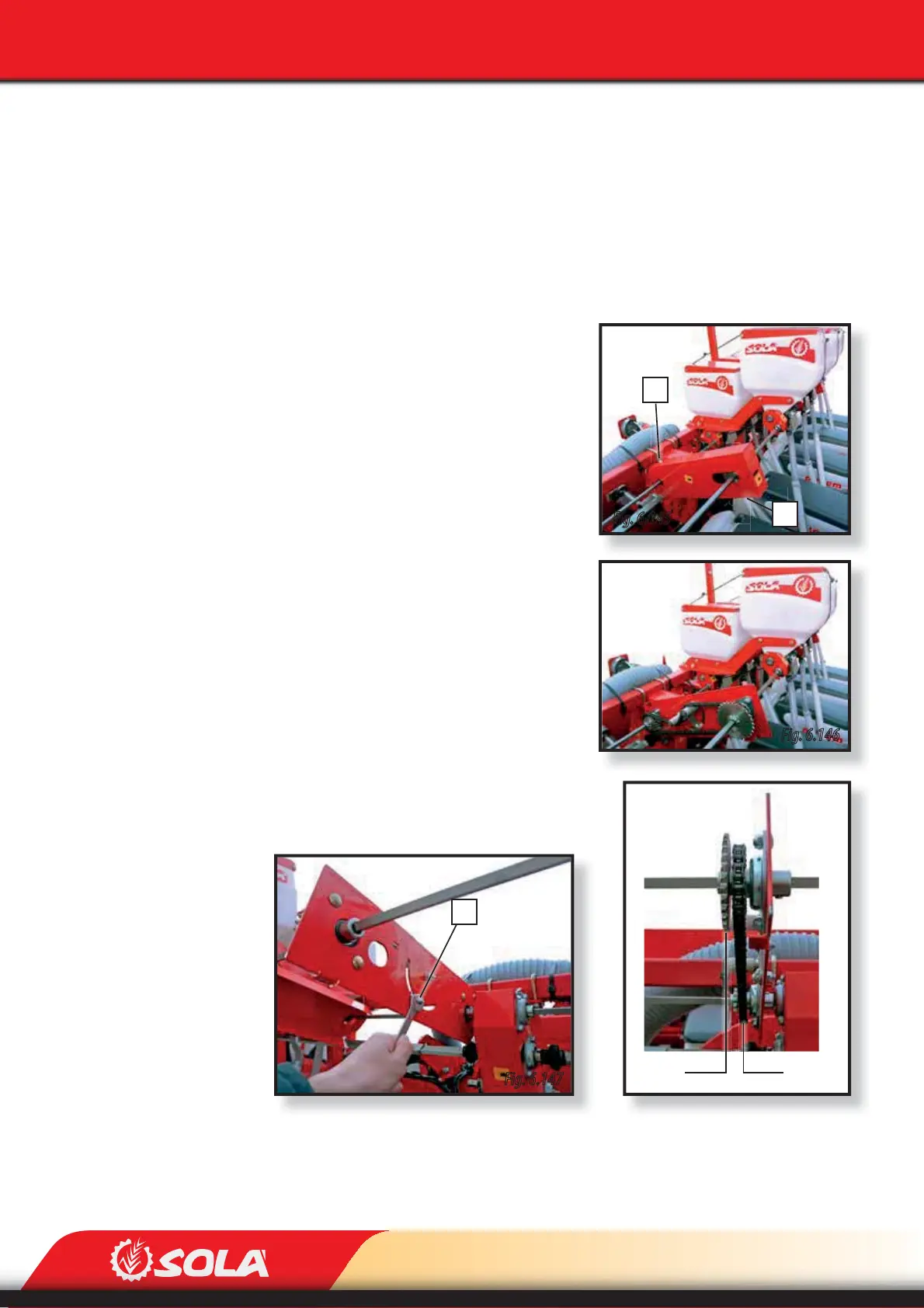

1- Remove the lid’s securing screws (1, Fig.
6.145).
2- Loosen the chain using a wrench to operate
on the tensioner’s nut (2, Fig. 6.147).
3- Change the chain’s position (Fig. 6.148)
4- Tighten again the chain using the tensioner.
Fix its position by operating on the nut (2,
Fig. 6.147).
5- Place the lid back and x it using the screws
(1, Fig. 6.145).
