96
P. S = Z12
P.E= Z22
P. S = Z 22
P.E= Z12
Fig. 6.132
Fig. 6.130
Fig. 6.131
ADJUSTMENTS
Next to each dosing device there is an adjusting wheel (A, Fig. 6.128). Turn it to adjust the insec-
ticide distribution.
The spindle has a adjusting scale marked from A to E, and the nut has 10 numbers for each letter.
For each dosing device adjust the ratchet’s letter to the nut’s number (A, Fig. 6.128).
IT IS NOT RECOMMENDED USE POSITIONS LOWER THAN B/0 SINCE THEY MAY RESULT IN AN
IRREGULAR DISTRIBUTION.
To empty the insecticide or helicide micro granulator’s hoppers, see section 8.3 INSECTISIDE
MICROGRANULATOR’S AND/OR HELICIDE MICROGRANULATOR’S HOPPERS.
The insecticide micro granulator is equipped with a double cog that allows to change the trans-
mission of the dosing device. In this way, there is a wider range of possible dosages. Previous
table shows both possible transmissions P.S =12Z P.E=22Z or P. S=22Z P. E =12Z .

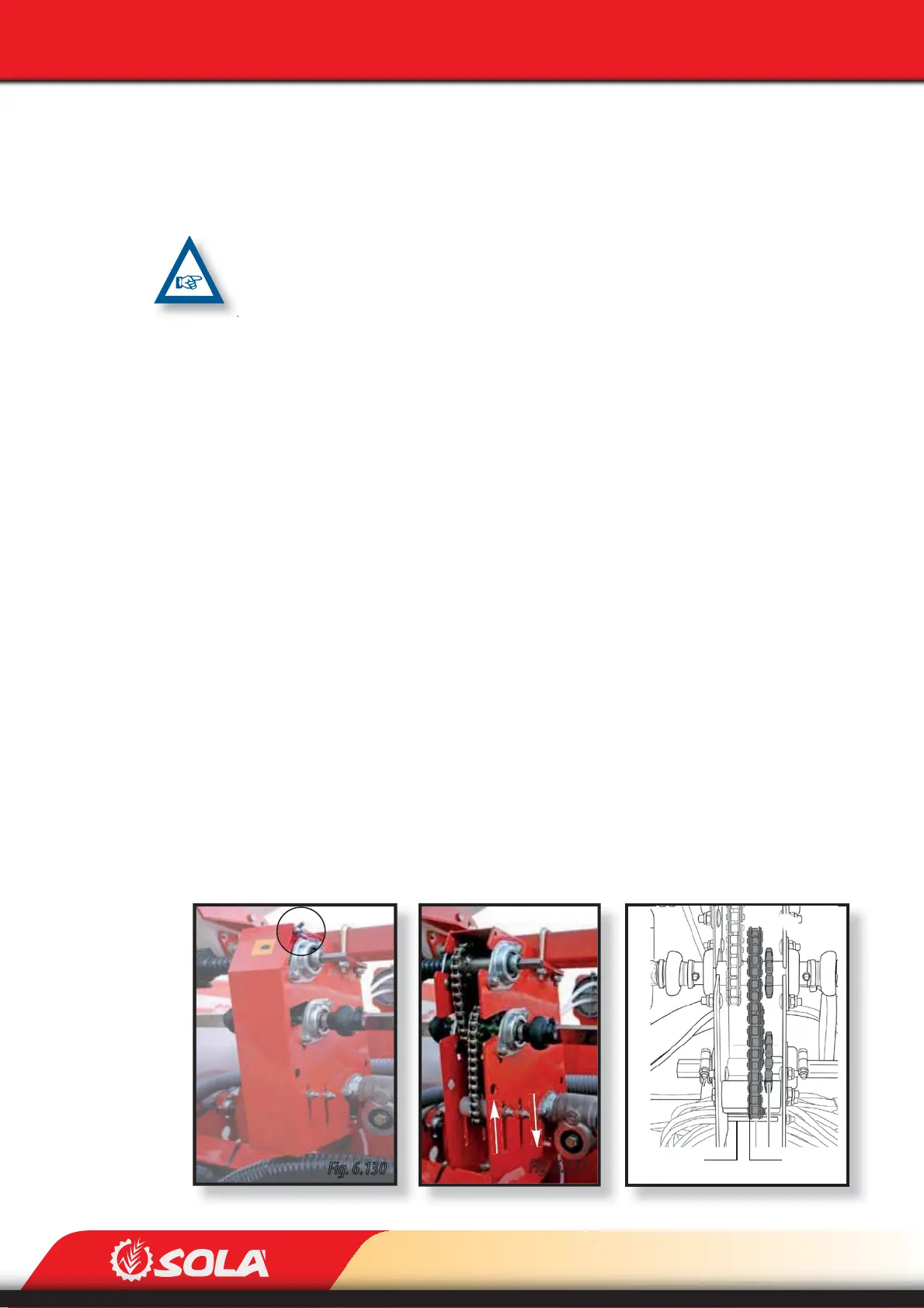

6.19.1 CHANGING THE MICRO GRANULATOR’S TRANSMISSION
To change the micro granulator’s transmission, proceed as follows:
1- Remove the wing nut and the upper screw of the drive’s lid (Fig. 6.130).
2- Turn the lid downwards.
3- Using two wrenches, loosen the tensioners (Fig. 6.131).
4- Push the tensioner downwards to loosen the chain.
5- Change the chain’s position (Fig. 6.132).
6- Tighten the chain using the 2 tensioners.
7- Lock the tensioner’s position using the securing nuts.
8- Finally, close the lid and x it using the screw and the wing nut.
