ADJUSTMENTS

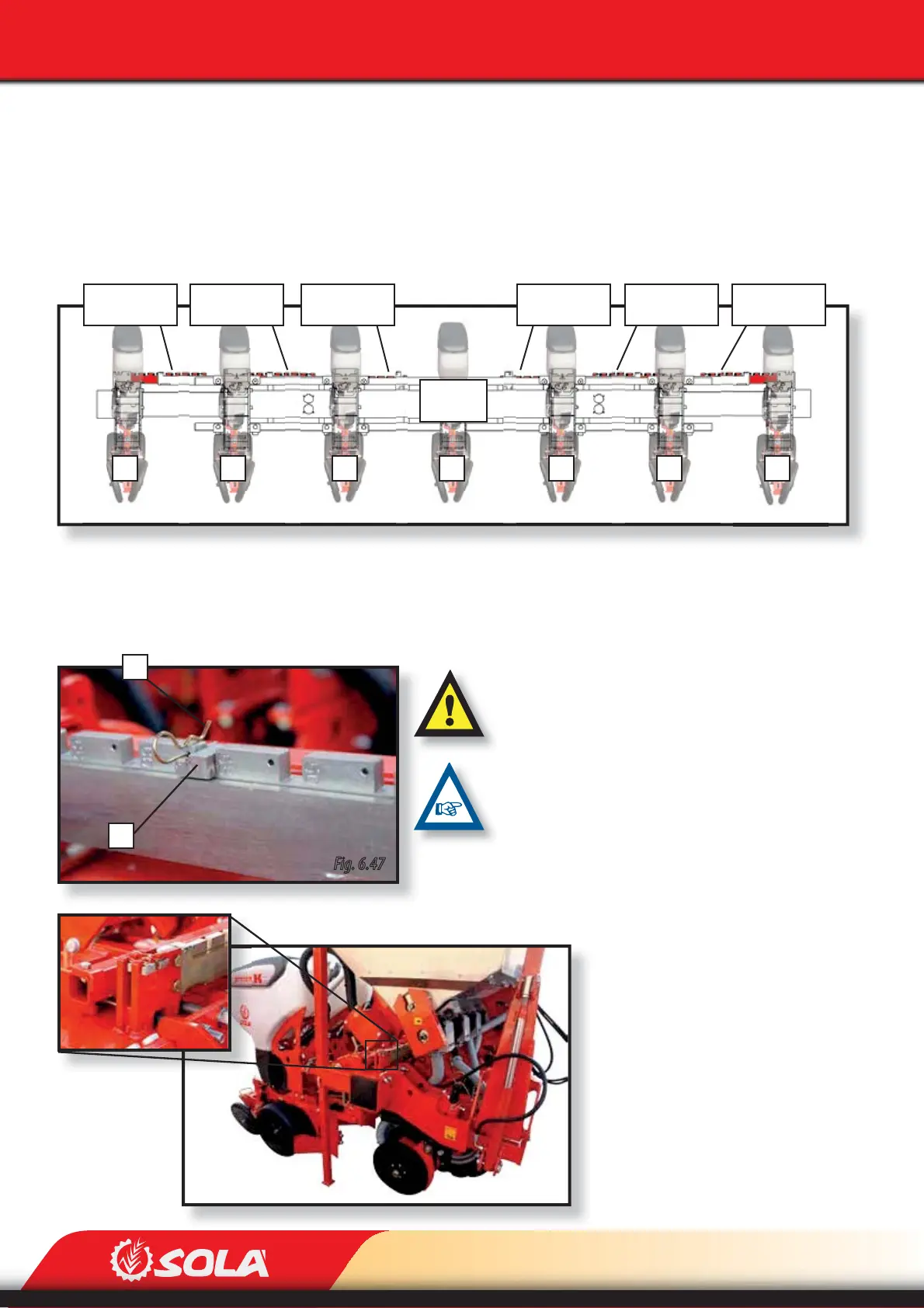

6.5.4.4 VARIANT V300/7 7F45-60 6F70-80
This model allows to adjust the spacing of:
- 6 ROWS at 70, 75 and 80 cm
- 7 ROWS at 45, 50, 55 and 60 cm.
To adjust the machine at 7 ROWS at 45, 50, 55 and 60 cm, the required parts are:
- 6 APERTURE STOPS
TO ADJUST THE MACHINE AT 7 ROWS, THE FOUR SPE-
CIAL STOPS OF 6 ROWS HAVE TO BE STORED IN THEIR
STORAGE PLACE AT THE FRAME’S ENDS. (FIG. 6.48).
IN CASE THE 6 ROWS SPECIAL STOPS ARE ASSEMBLED
IN THE BARS AND CAN NOT BE REMOVED, OPEN SLI-
GHTLY THE MACHINE IN ORDER TO BE ABLE TO REMO-
VE THEM.
To adjust the 7 row spacing:
1- Remove the pins (B, Fig. 6.47) of
the units. Also remove the apertu-
re stops (A, Fig. 6.47).
2- Place the aperture stops at the
desired spacing (40, 50, 55 or 60)
using the pins
3- Open the machine using the hy-
draulic system: the row spacing
will be the selected one..
1
Fig. 6.46
F
ig. 6.
4
Slotted bar of
the unit nº1
Slotted bar of
the unit nº2
Slotted bar of
the unit nº3
Slotted bar of
the unit nº5
Slotted bar of
the unit nº6
Slotted bar of
the unit nº7
1 2 3 4 5 6 7
FIXED
unit
