97

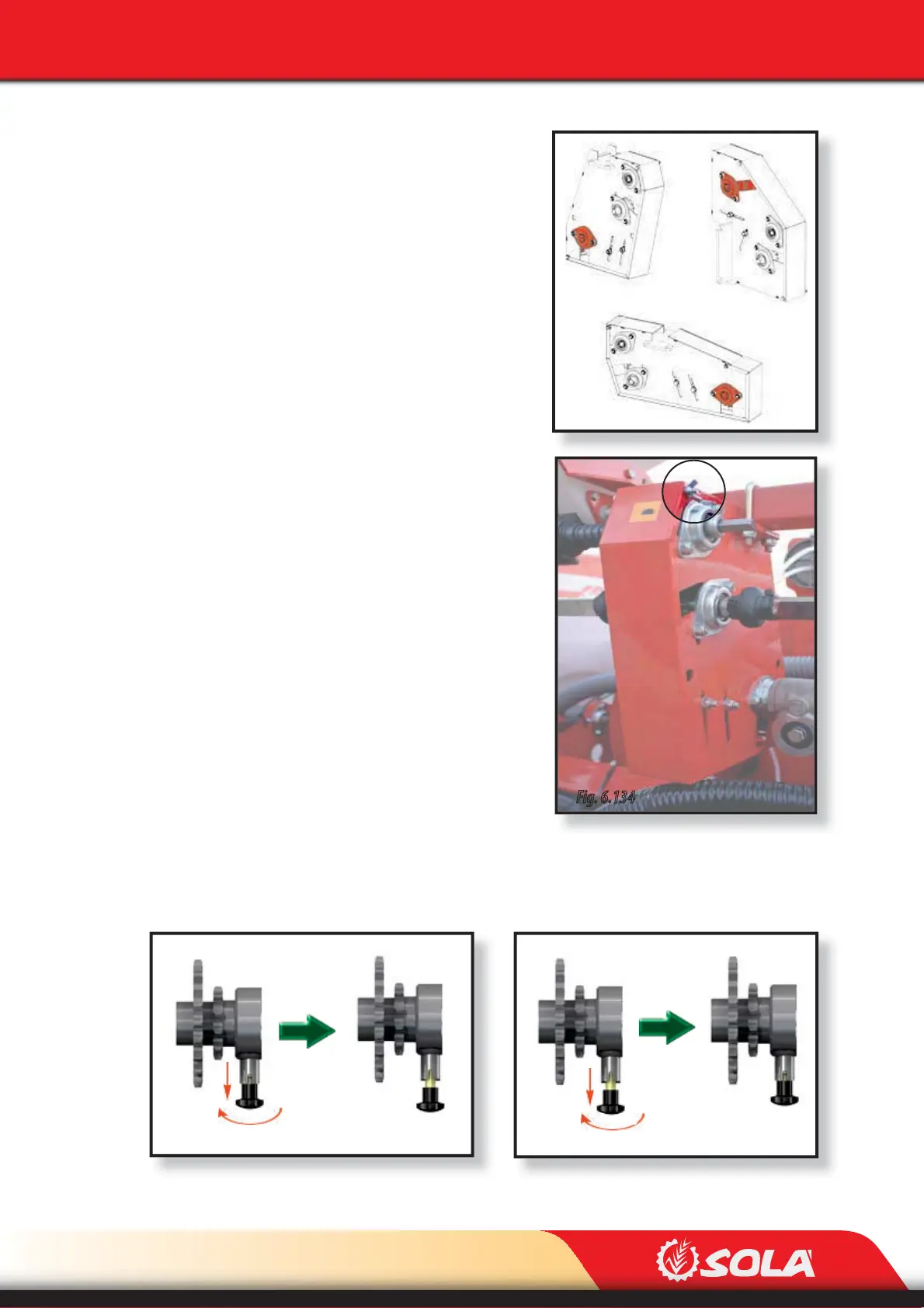

Fig. 6.133
Fig. 6.134
Fig. 6.136
1
2
Fig. 6.135
1
2
ADJUSTMENTS
6.19.2
EXCLUDING THE MICRO GRANULATOR
To disconnect the transmission of the micro granulator
hoppers, it is necessary to operate on the transmission’s
box of the micro granulator hoppers (see section 3.1
PLANTER OVERVIEW). There are three types of gearboxes,
all of them have the clutch on one of the axles (shown in
red, Fig. 6.133).
Disconnect the transmission when fertilizing the eld is
not required.
To exclude the transmission, follow these steps:
1- Remove the wing nut and the upper screw of the
drive’s lid (Fig. 6.134).
2- Turn the lid downwards.
3- In the transmission axle where the clutch is (Fig.
6.133), pull the securing knob and turn it 90
o
to lock it at the free transmission position (Fig.
6.135).
4- Close the lid and x it using the screw and the
wing nut.
To reconnect the transmission:
1- Remove the wing nut and the upper screw of the
drive’s lid (Fig. 6.134).
2- Turn the lid downwards.
3- On the transmission axle where the clutch is (Fig.
6.133), pull the securing knob and turn it 90
o
to
lock it at the transmission position (Fig. 6.136).
4- Close the lid and x it using the screw and the wing nut.
