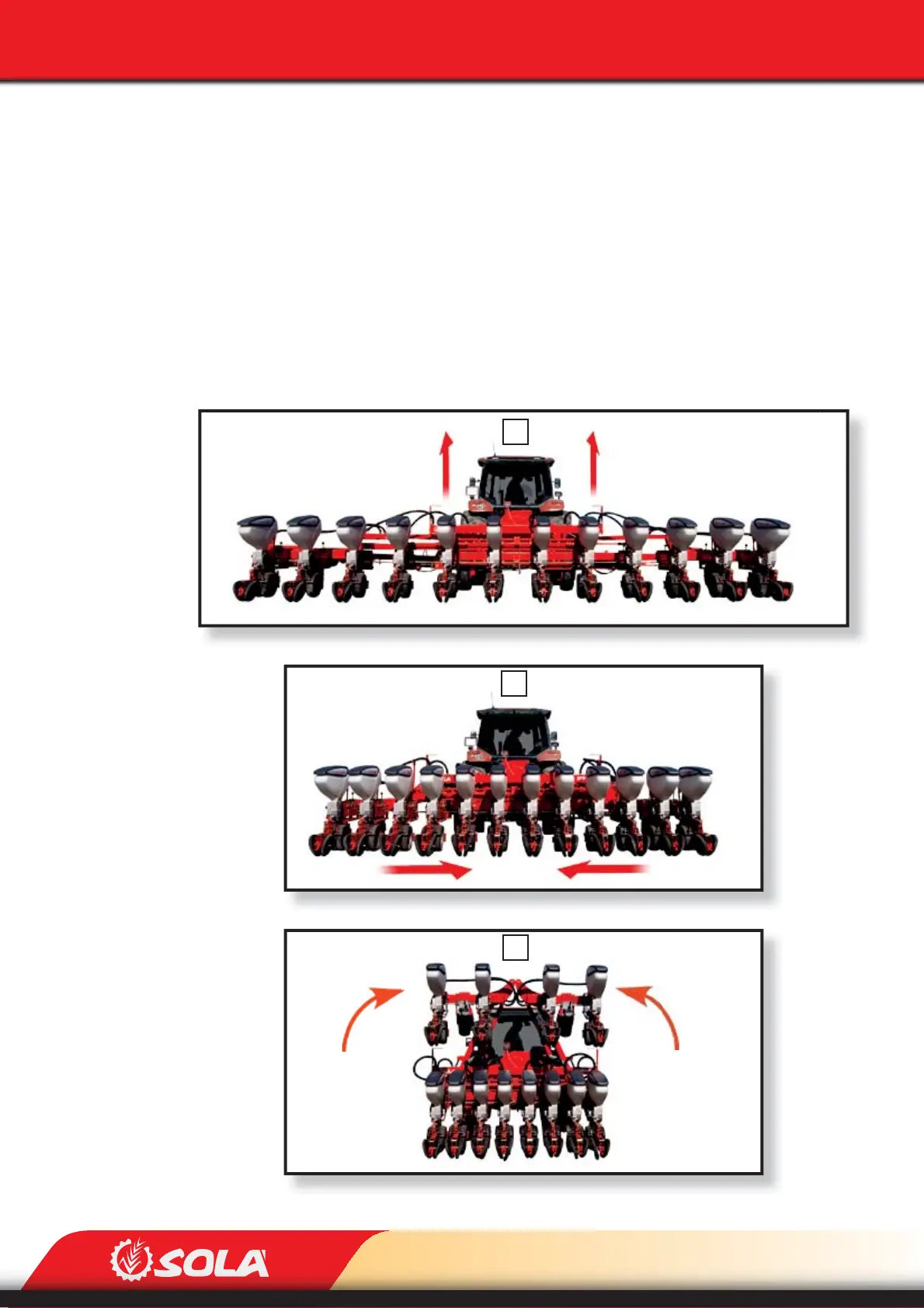

Fig. 7.7
1
Fig. 7.8
2
Fig. 7.9
3
TRANSPORT
7.4 FOLDING FRAME
All types of machines equipped with this frame are allowed in thoroughfare. To set the planter
for transit, follow these steps:
1- Fold the track markers hydraulically.
2- Raise the planter (Fig. 7.7).
3- Fold the central frame (Fig. 7.8) of the machine, except in folding planters equipped
with central xed frame or variant manual frame.
4- Fold the planter’s lateral folding parts (Fig. 7.9).
