H6 Hybrid Inverter - Installation & Operation Guide

9.5 - Thermal, Voltage, and Efficiency Charts

This section contains charts that depict thermal de-rating, voltage vs. power, and 3D

efficiency characteristics of the SolarCity H6 inverter.

9.5.1 - Thermal De-rating

The SolarCity H6 inverter can be operated in ambient temperatures ranging from -20°C to

60°C (-4°F to 140°F); however, power de-rating occurs above 45°C (113°F).

Figure 9-1

illustrates how increasing the temperature of the inverter and/or PV array reduces power

output.

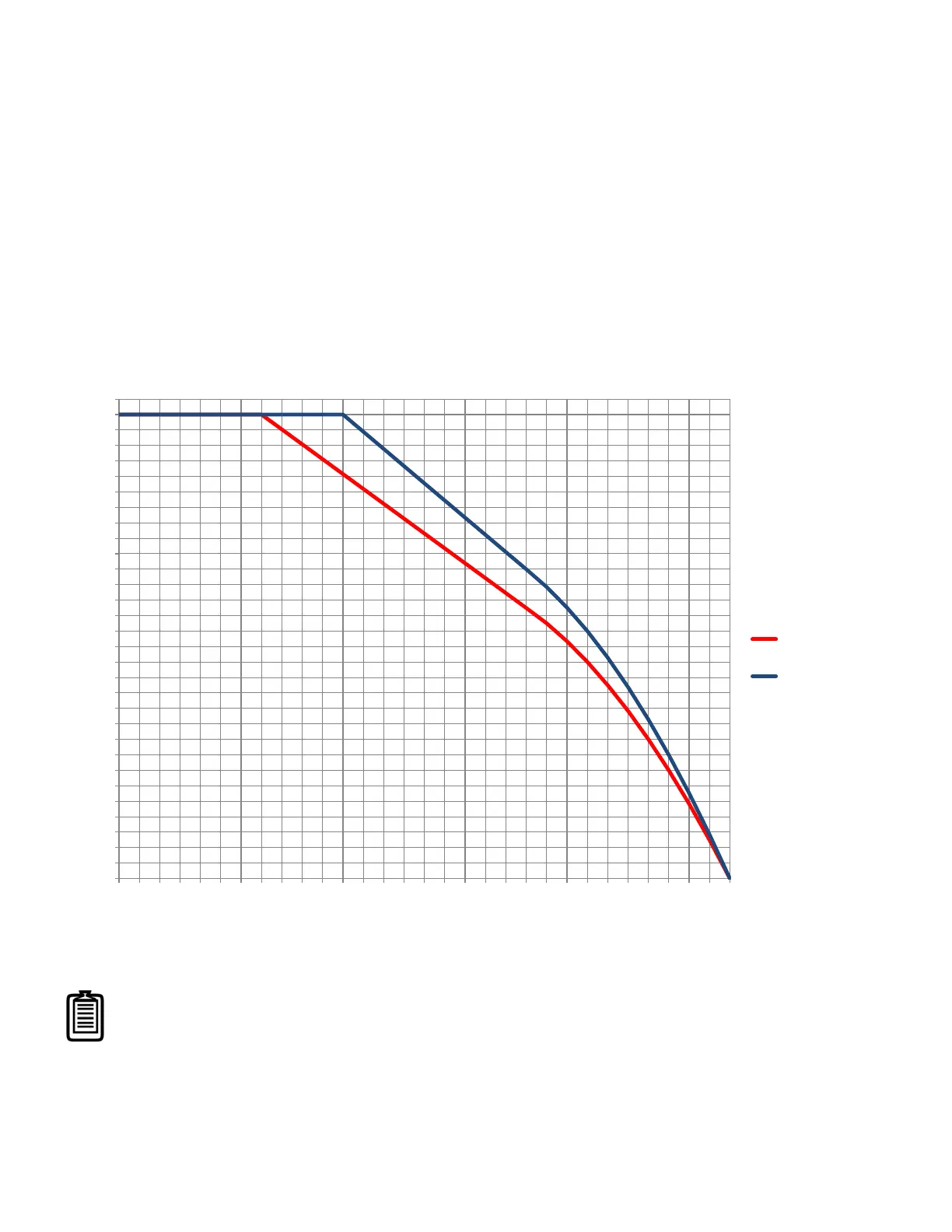

Figure 9-1: Temperature de-rating graph

Note: Temperature sensor tolerances and varying efficiencies under

different PV voltage mean that Figure 9-1 may not precisely represent the

actual behavior of the SolarCity H6 inverter under all foreseeable

conditions.

0 W

200 W

400 W

600 W

800 W

1000 W

1200 W

1400 W

1600 W

1800 W

2000 W

2200 W

2400 W

2600 W

2800 W

3000 W

3200 W

3400 W

3600 W

3800 W

4000 W

4200 W

4400 W

4600 W

4800 W

5000 W

5200 W

5400 W

5600 W

5800 W

6000 W

6200 W

40.0 °C

41.0 °C

42.0 °C

43.0 °C

44.0 °C

45.0 °C

46.0 °C

47.0 °C

48.0 °C

49.0 °C

50.0 °C

51.0 °C

52.0 °C

53.0 °C

54.0 °C

55.0 °C

56.0 °C

57.0 °C

58.0 °C

59.0 °C

60.0 °C

61.0 °C

62.0 °C

63.0 °C

64.0 °C

65.0 °C

66.0 °C

67.0 °C

68.0 °C

69.0 °C

70.0 °C

DeraƟng

@ 200V PV

DeraƟng

@ 400V PV
