SolarCity H6 - Removing the SMART RSS; Figure B-4: Removing the SMART RSS

H6 Hybrid Inverter - Installation & Operation Guide
132
Copyright 2017 SolarCity Corporation. All rights reserved.
B.3 - Removing the SMART RSS
To remove the SMART RSS:
1. Use a screwdriver to unlock the tooth of the bracket.
2. Lift the RSS and pull it out.

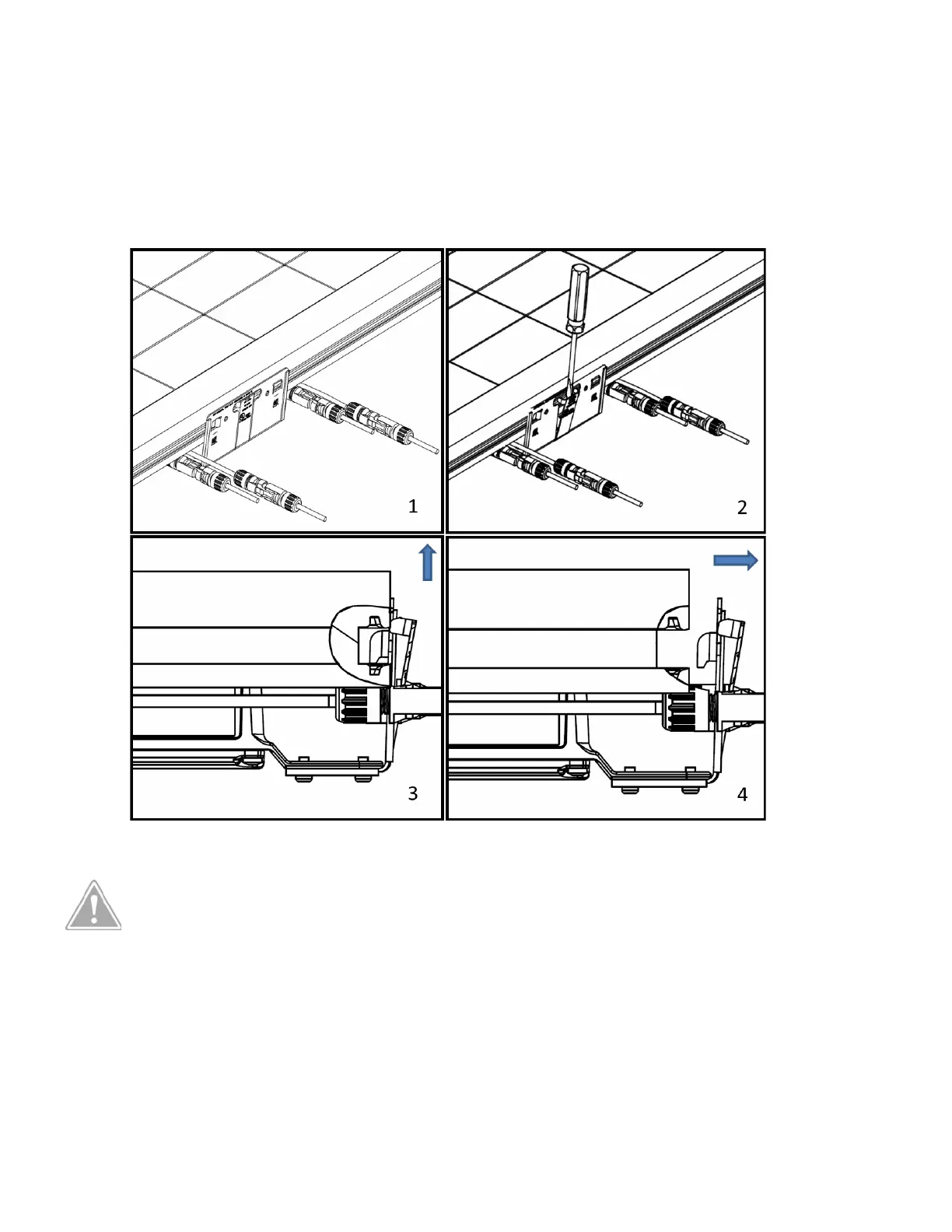

Figure B-4: Removing the SMART RSS
CAUTION: BE CAREFUL TO AVOID BENDING THE SMART RSS BRACKET.
