H6 Hybrid Inverter - Installation & Operation Guide
128
Copyright 2017 SolarCity Corporation. All rights reserved.
B.1 - Dimensions and Clearances
This section displays the physical dimensions of the SMART RSS and provides minimum
clearance requirements.
B.1.1 - SMART RSS Dimensions

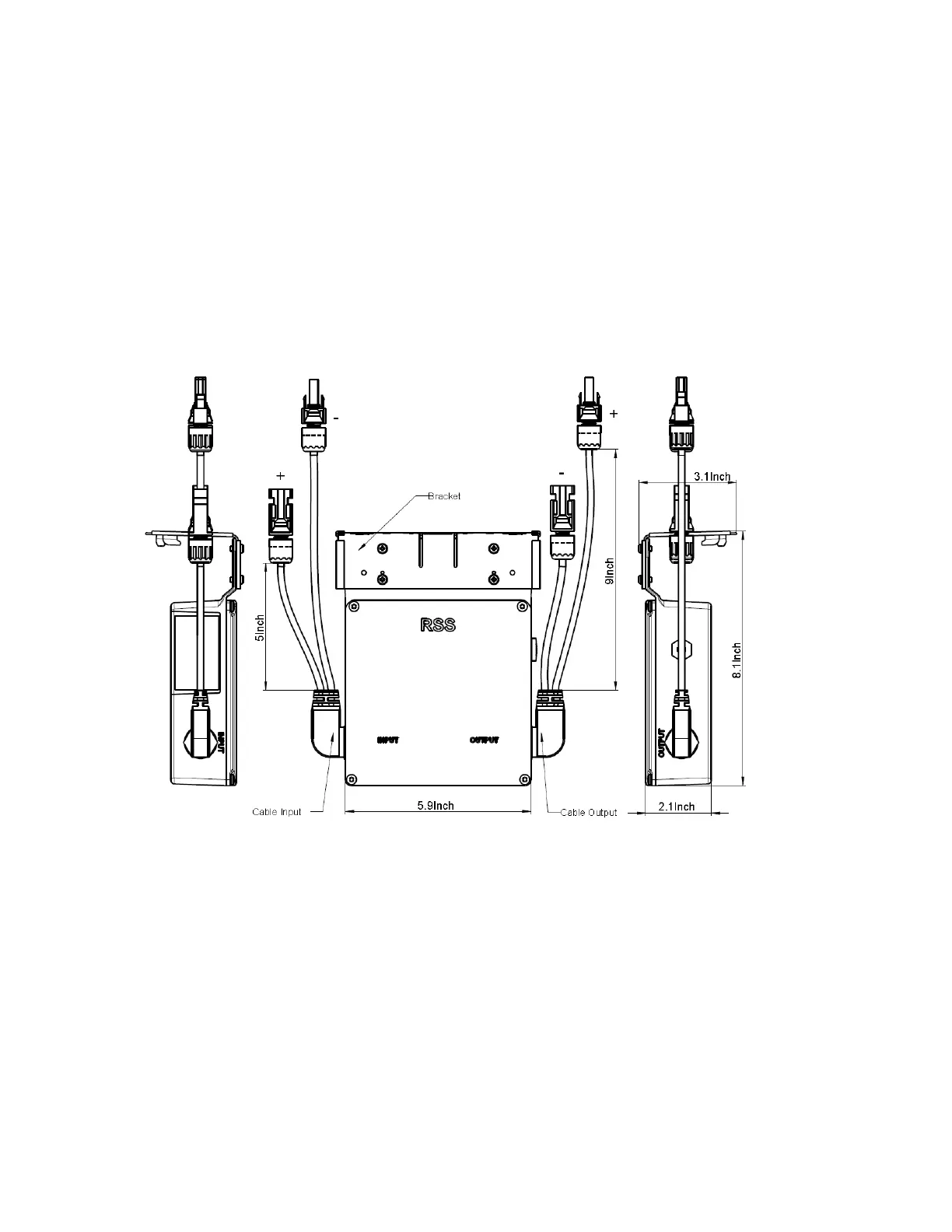

Figure B-1
displays the physical dimensions of the SMART RSS. It also displays the input
cables, output cables, SMART RSS box, and mounting bracket. The polarity of the input and
output also appear in the figure.
Figure B-1: SMART RSS dimensions
