The Rapid Shutdown Slaves (PLC receivers) that receive these PLC signals are embedded in
the RSD boxes on the roof. An RSD signal initiates a rapid shutdown function when triggered
by the Fireman Switch located either beside the main panel or by the DC Disconnect Switch.
See
Figure 3-14
and
Figure 3-15
for mounting and operation, respectively.

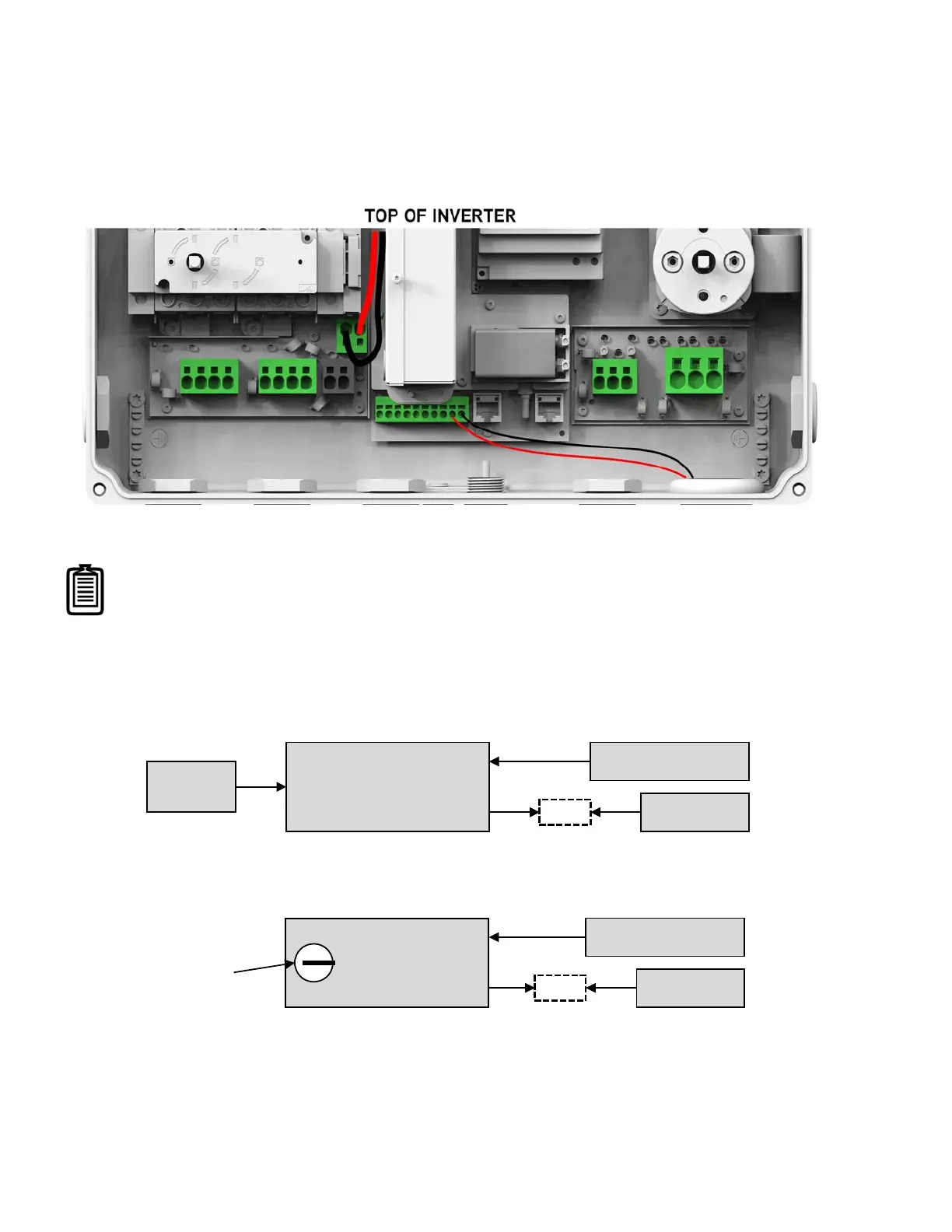

Figure 3-14: Fireman Switch connections
Figure 3-15: Fireman Switch operation (below)
Figure 3-16: DC Disconnect Switch operation (below)
Note: The Fireman Switch may be mounted near the main panel, and the
lines from the Fireman Switch will often share the same 1” conduit with
the AC Grid lines, as shown in Figure 3-14. If the Fireman Switch is
mounted underneath the wiring box, then it may use a dedicated
1/2” conduit.
RSD PV STRING
SOLARCITY
H6
INVERTER
FIREMAN
SWITCH
BATTERY PACK
SOLARCITY
H6
INVERTER
DC Disconnect Switch
in OFF position
RSD PV STRING
BATTERY PACK
