9. Set the inverter top section down in a safe place.
10. If you are not immediately replacing the top section with a new one, then replace the
wiring box cover as described in
“Refit Wiring Box Cover” on page 60
.

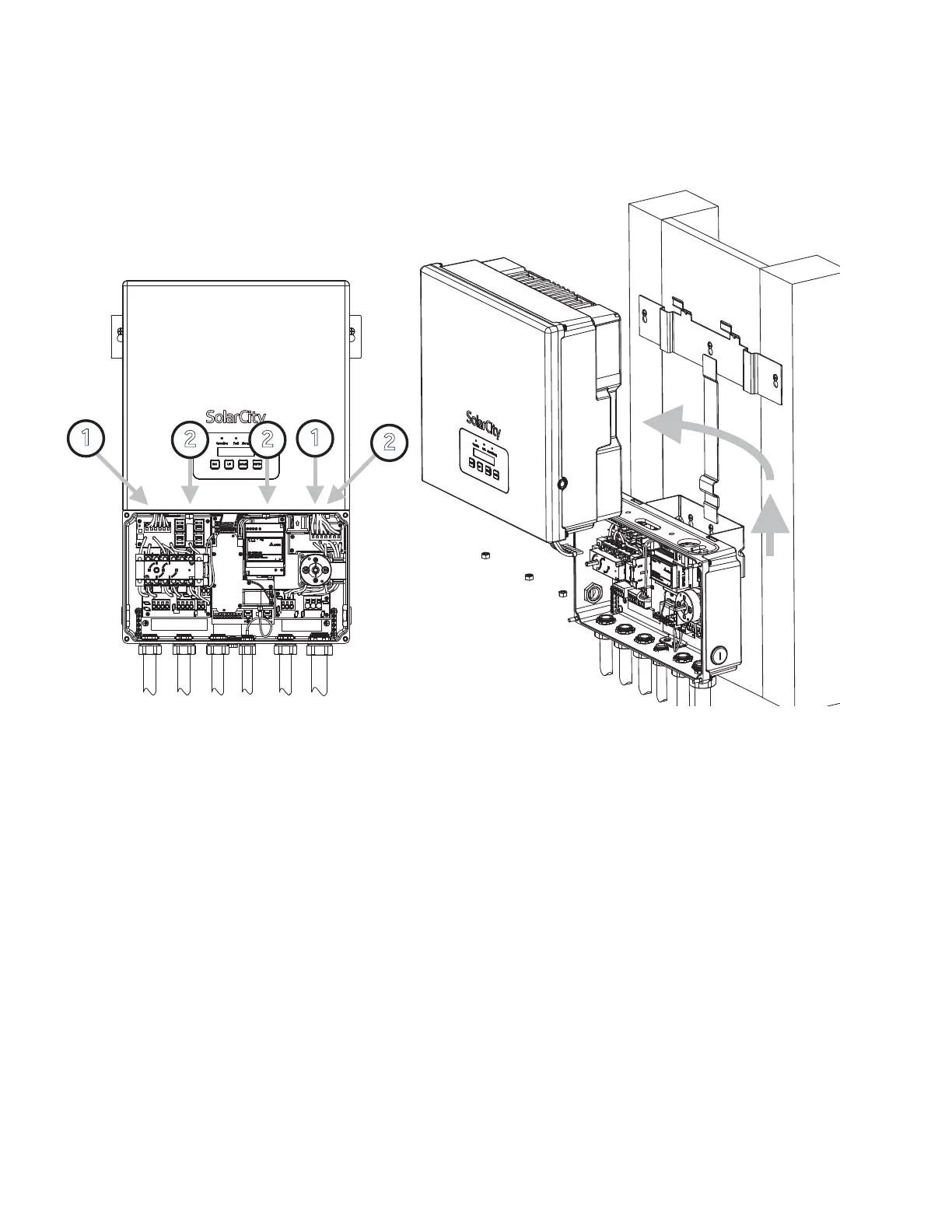

Figure 10-1: Removing the SolarCity H6 inverter top section
10.4.2 - Inverter (Refit)
To refit the SolarCity H6 inverter top section:
1. Ensure that the DC Disconnect Switch is in the OFF position.
2. Ensure that the AC Bypass Switch is in the BYP position.
3. Remove the wiring box cover as described in
“Remove Wiring Box Cover” on page 59
.
4. Ensure that there are no objects or obstructions on top of or inside the wiring box.
