3.6.2 - Mechanical Interlock Kit on a Separate Manual Transfer
Switch
When a mechanical interlock kit (MIK) cannot be installed directly on the main panel, a
separate manual transfer switch (MTS) is installed on the main breaker, and the MIK is then
installed on the MTS, as shown in Figure 3-22 .
The MIK is installed on the MTS panel, allowing either the main MTS breaker or the H6 inverter
standalone breaker to be switched ON, but never both.

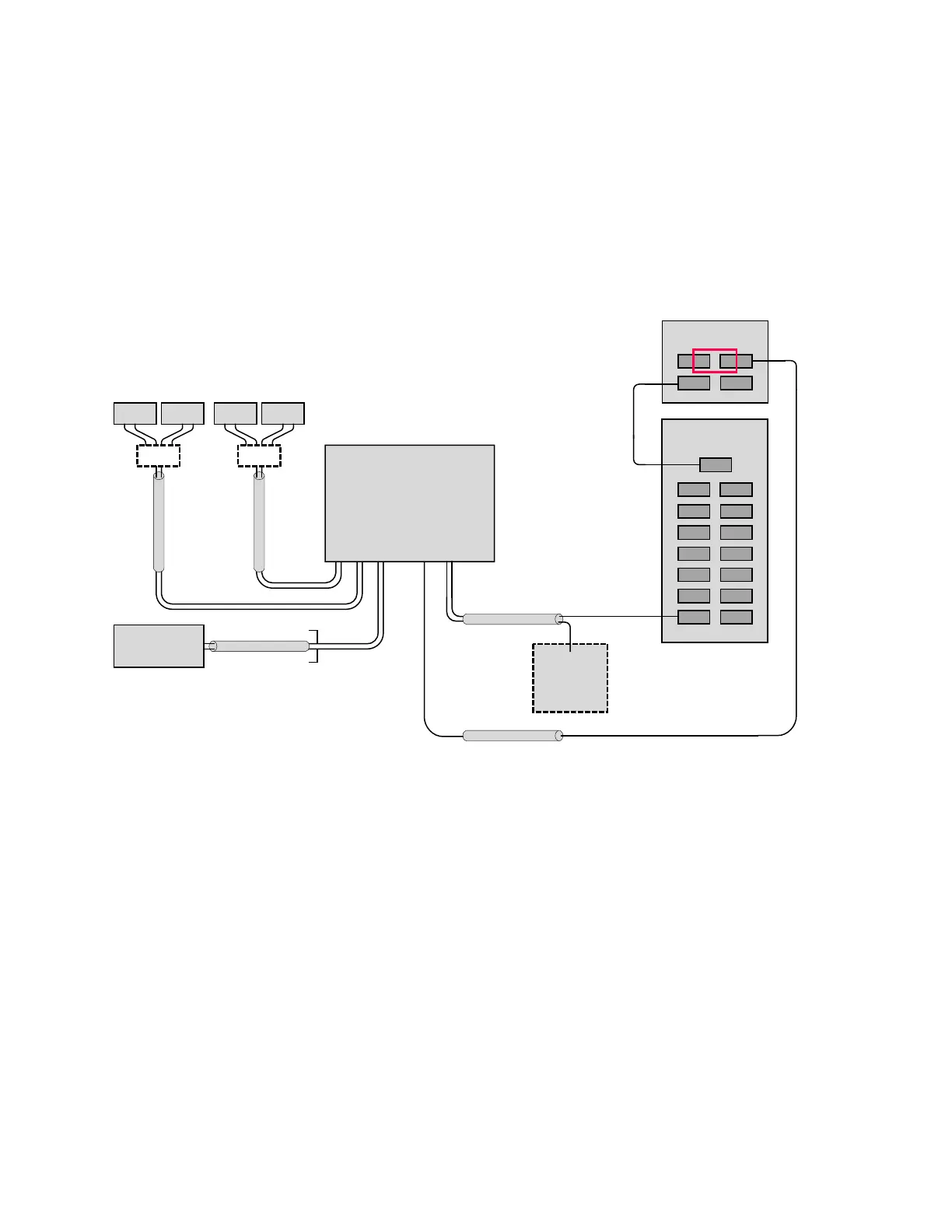

Figure 3-22: Mechanical Interlock Kit (MIK) Installed on a Manual Transfer Switch (MTS)
FIREMAN
SWITCH
(optional)
AC POI
AC Standalone
RSD RSD
BATTERY
PACK
Power
Communications
MAIN PANEL
MAIN PANEL
35A
PV2B PV2A PV1B PV1A
80A
200A
35A
SOLARCITY
H6
INVERTER
MTS PANEL
80A
