Chapter 1 - Welcome
3.2.2 - Clearances

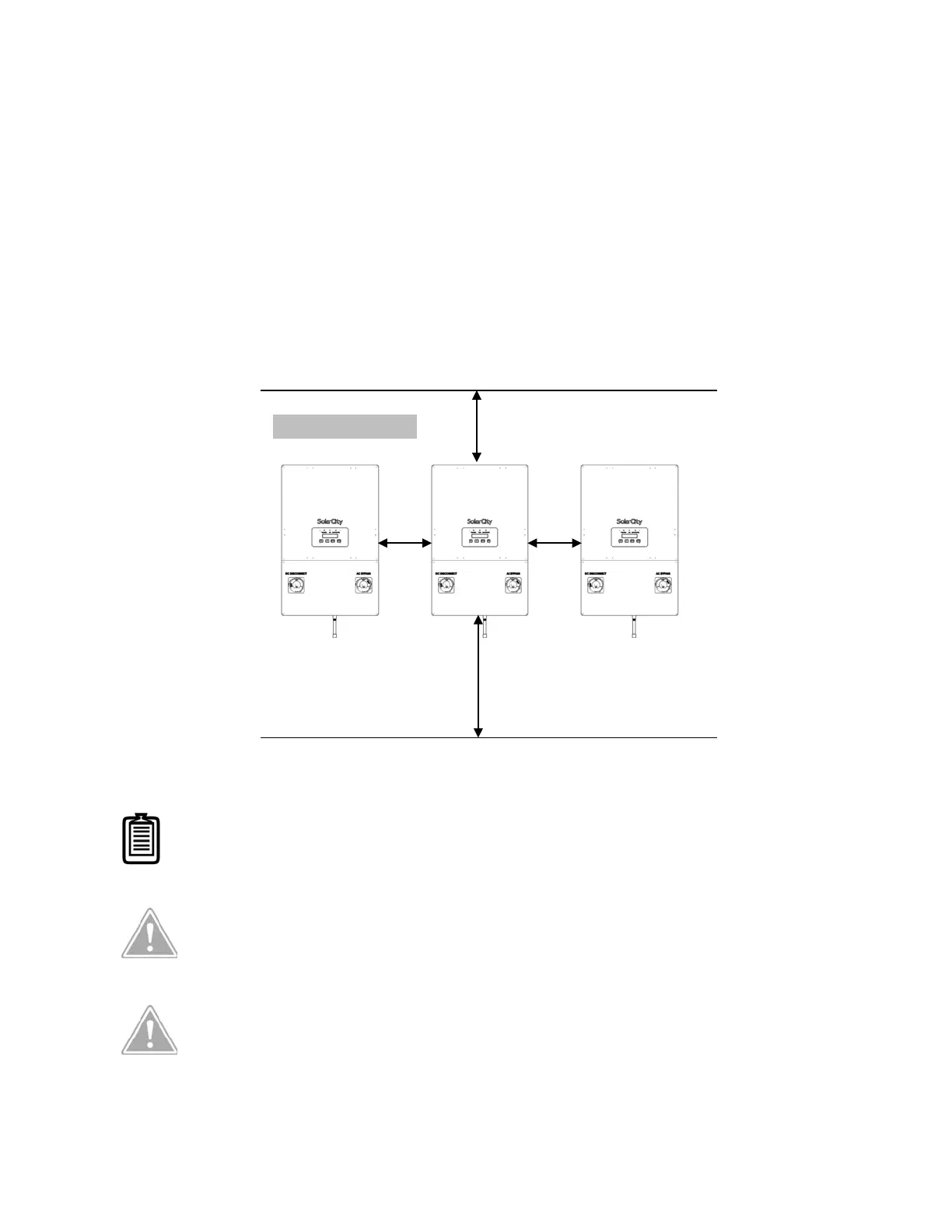

The minimum clearance requirements (see Figure 3-4 ) for mounting one or more SolarCity
H6 inverters are:
• Between inverters: 6” (150mm)
• Below overhanging roof surface: 12” (305mm)
• From ground: More than 24” (610mm)
Figure 3-4: Minimum clearances (below)
Note: The SolarCity H6 inverter will go into power de-rating as described
in “Thermal De-rating” on page 96. If ambient temperate exceeds the
maximum rating, the SolarCity H6 inverter will automatically shut off.
CAUTION: THE SOLARCITY H6 INVERTER MAY OVERHEAT IF MOUNTED TOO
CLOSE TO AN OVERHANGING ROOF AND/OR TOO CLOSE TO
SURROUNDING ELECTRICAL EQUIPMENT.
CAUTION: AVOID INSTALLING AN INVERTER ABOVE ANOTHER INVERTER AS
THIS COULD CAUSE THE TOP-MOST INVERTER TO OVERHEAT.
6"
(150mm)
6"
(150mm)
ROOF EDGE
12"
(305mm)
>24"
(610mm)
NOT TO SCALE
